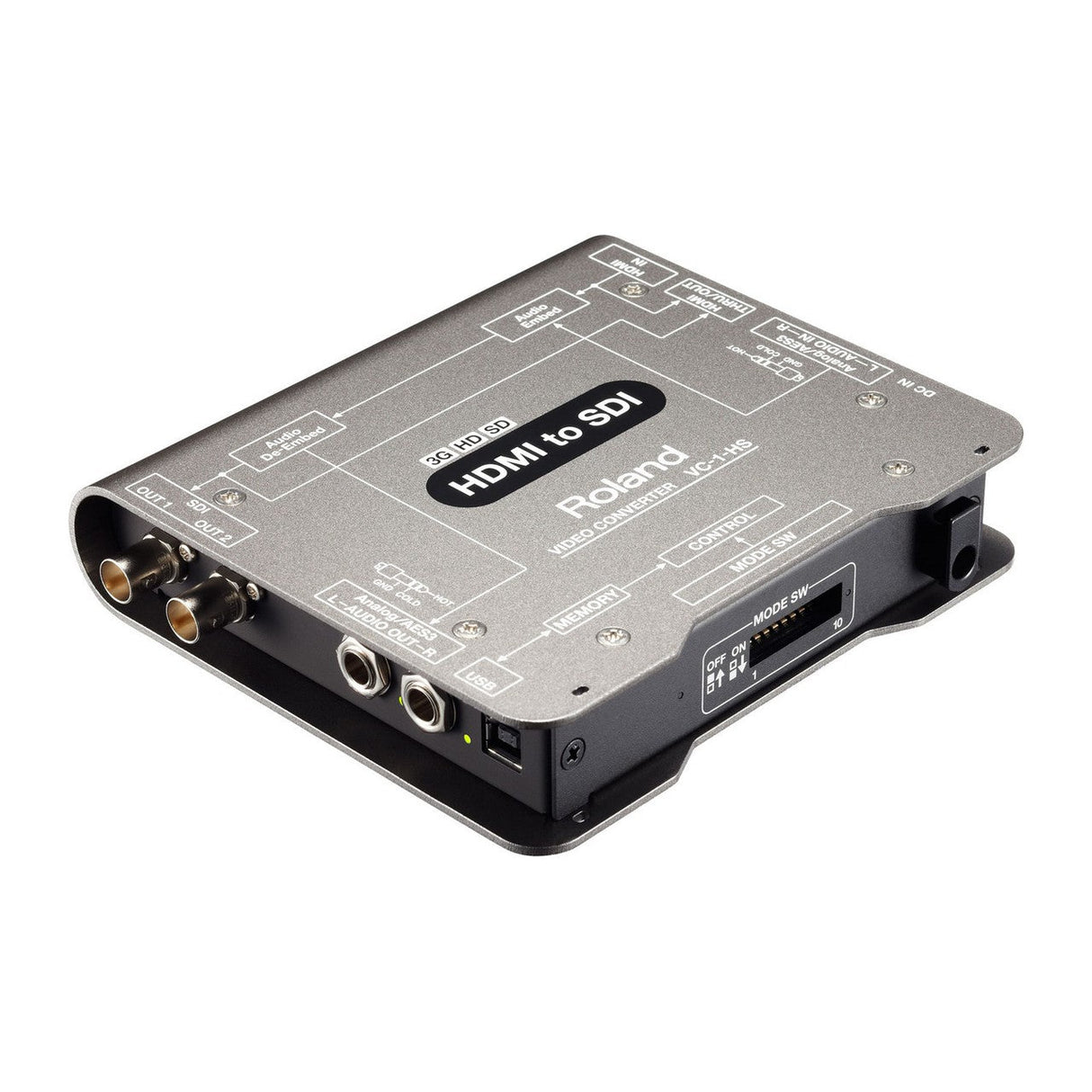

Roland VC-1-HS Lossless HDMI to SDI Video Converter
Roland's new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems.
Key Features
- HDMI to SDI Conversion
- Lossless Image Conversion
- 3G (Level A&B) /HD/ SD SDI
- HDCP Support
- VC-1 RCS, PC/MAC Control Application
- Selectable Channel for Embedded/De-Embedded Audio
Technical Specifications
HDMI
Type A (19 pins ) x 1
Analog Audio Connector
1/4" TRS phone type ( balanced ) x 1 pair (L/R)
Digital Audio Connector
1/4" TRS phone type ( balanced ) x 1 ( Combined use with Analog Audio R ch Connector )
Processing
Audio embedding Audio de-embedding
SDI Connector
BNC type x 2
HDMI Connector
Type A (19 pins ) x 1 (Thru/Out )
Analog Audio Connector
1/4" TRS phone type ( balanced ) x 1 pair (L/R)
Digital Audio Connector
1/4" TRS phone type ( balanced) x 1 ( Combined use with Analog Audio R ch Connector )
SDI Input Signal Standards
SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Input Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
Audio Format
Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Input Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Input Audio Format
Linear PCM, 24 bit, 48 kHz, 8 ch
SDI Output Signal Standards
SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Output Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
SDI Output Audio Format
Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Output Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Output Audio Format
Linear PCM, 24 bit, 48 kHz, 8 ch
Analog Audio Input Level
+4dBu
Analog Audio Maximum Input Level
+24dBu
Analog Audio Input Impedance
110 ohms
Analog Audio Output Level
+4dBu
Analog Audio Output Impedance
600 ohms
Digital Audio Output Signal Format
AES3, 16/24 bits, 32/48 kHz, 2 ch
Digital Audio Output Impedance
110 ohms
USB Connector
USB Type B (Hi-Speed USB) x 1
Power Supply
DC 9V
Power Consumption
8W
Operation Temperature
+0 to + 40 degrees Celsius
Accessories
AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual
Size and Weight
Width: 150 mm, 5-15/16 inches
Depth: 130 mm, 5-1/8 inches
Height: 30 mm, 1-3/16 inches
Weight: 500 g, 1 lbs. 2 oz.
