Roland VC1SH SDI to HDMI Video Converter
Description
Description

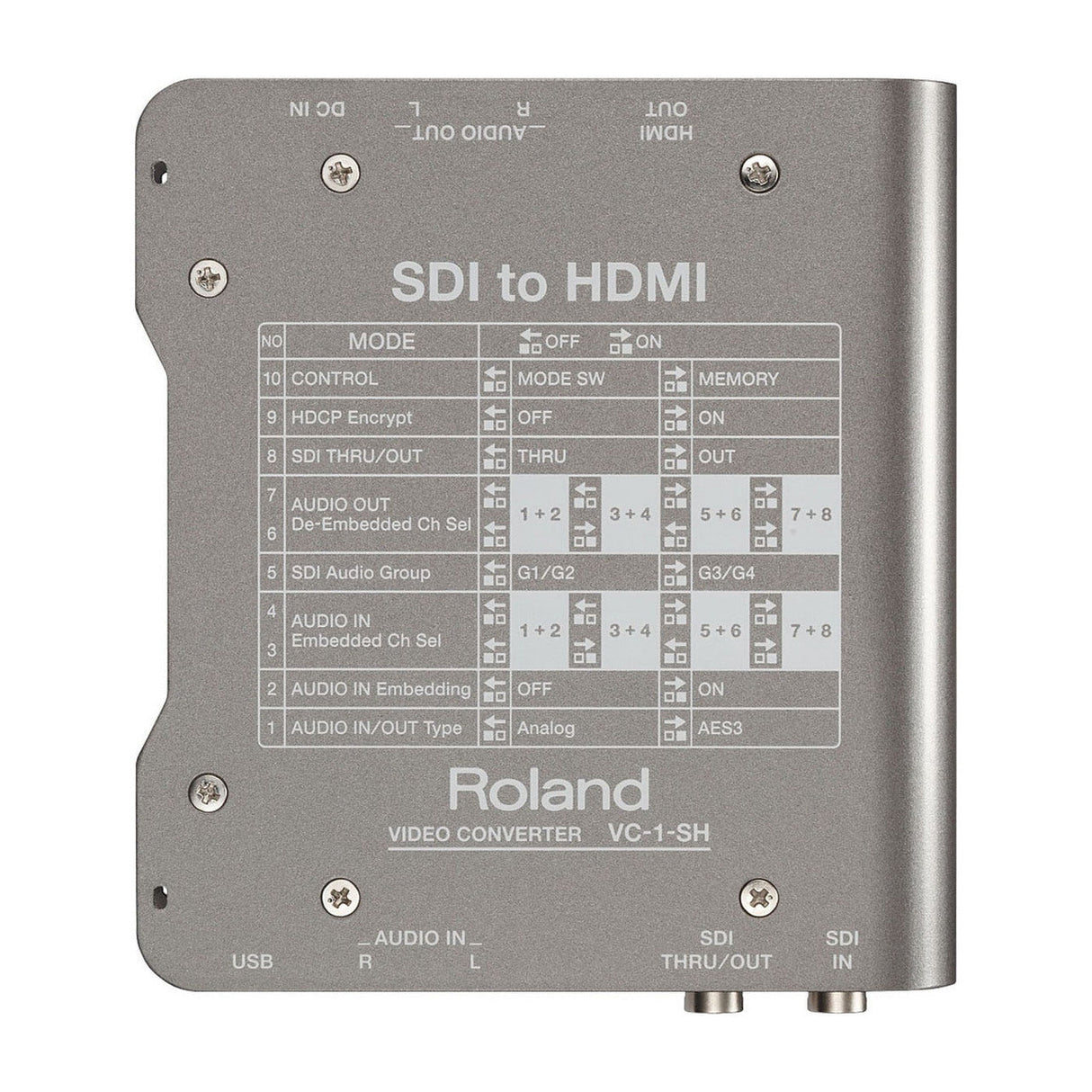

Roland VC1SH SDI to HDMI Video Converter
The Roland VC1SH SDI to HDMI Video Converter provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whIt's. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.
The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.
Key Features
- SDI to HDMI Conversion
- Lossless Image Conversion
- 3G (Level A&B)/HD/SD/SDI
- HDCP Support
- VC-1 RCS, PC/Mac Control Application
- Selectable Channel for Embedded/De-Embedded Audio
Technical Specs
Input
SDI Connector
BNC type x 1
Analog Audio Connector
1/4" TRS phone type ( balanced ) x 1 pair (L/R)
Digital Audio Connector
1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
Processing
Audio embedding Audio de-embedding
Output
SDI Connector
BNC type x 1 ( Thru/Out )
HDMI Connector
Type A (19 pins ) x 1
Analog Audio Connector
1/4" TRS phone type ( balanced) x 1 pair (L/R)
Digital Audio Connector
1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
Input / Output Format
SDI Input Signal Standards
SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Input Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
Audio Format
Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Input Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Input Audio Format
Linear PCM, 24 bit, 48 kHz, 8 ch
SDI Output Signal Standards
SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Output Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
SDI Output Audio Format
Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Output Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Output Audio Format
Linear PCM, 24 bit, 48 kHz, 8 ch
Audio Input / Output
Analog Audio Input Level
+4dBu
Analog Audio Maximum Input Level
+24dBu
Analog Audio Input Impedance
110 ohms
Analog Audio Output Level
+4dBu
Analog Audio Output Impedance
600 ohms
Digital Audio Output Signal Format
AES3, 16/24 bits, 32/48 kHz, 2 ch
Digital Audio Output Impedance
110 ohms
Others
USB Connector
USB Type B (Hi-Speed USB) x 1
Power Supply
DC 9V
Power Consumption
8W
Operation Temperature
+0 to + 40 degrees Celsius
Accessories
AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual
Size and Weight
Width
150 mm
5-15/16 inches
Depth
130 mm
5-1/8 inches
Height
30 mm
1-3/16 inches
Weight
500 g
1 lbs. 2 oz.
(0dBu=0.775Vrms )
