Rolls MX401 Four Channel XLR Stereo Microphone or Line Mixer

Rolls MX401 Four Channel XLR Stereo Microphone or Line Mixer

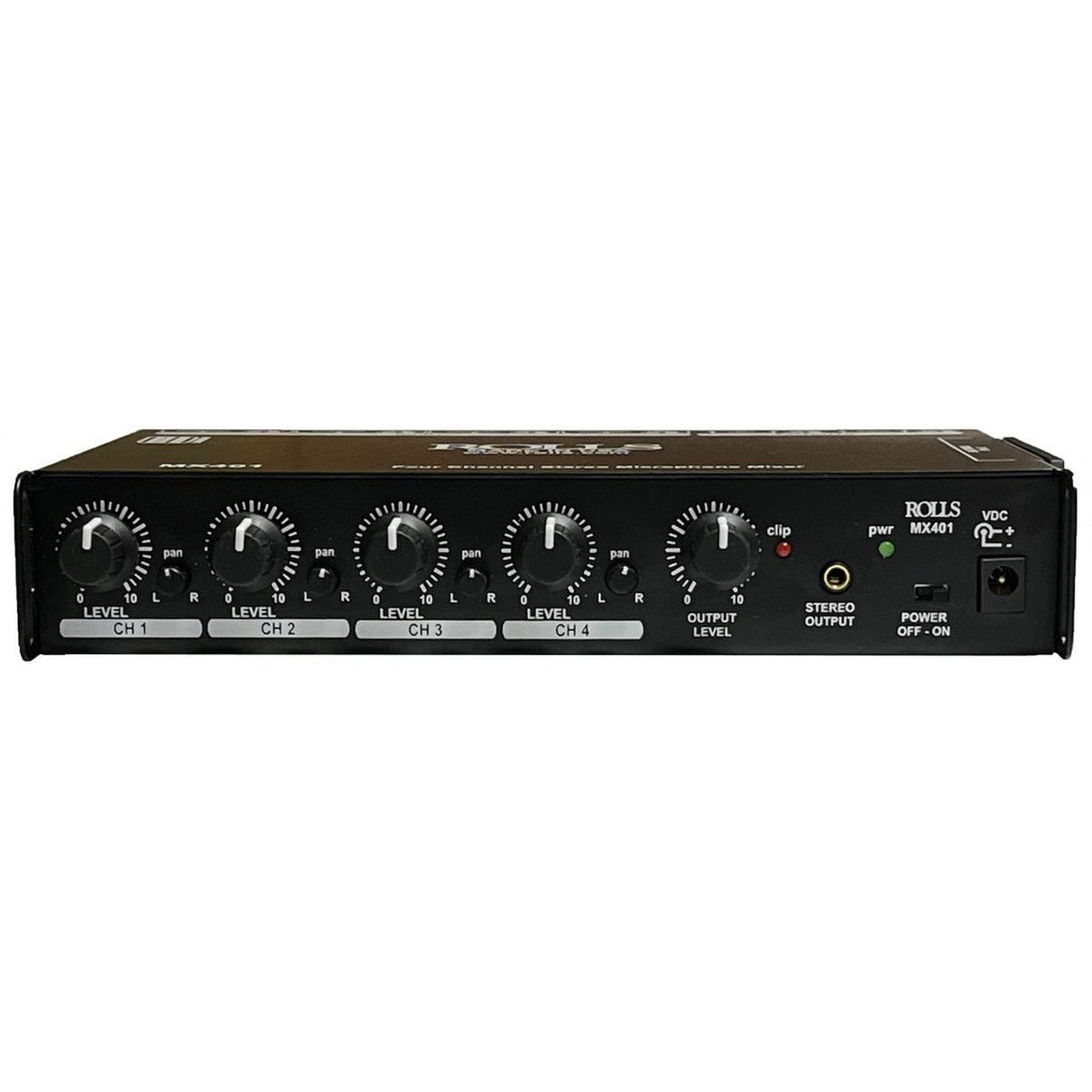

The MX401 mixes 4 microphones or line level XLR′s into two balanced Stereo outputs. The four XLR inputs, each have individually switchable phantom power, MIC or LINE level switch, Level control, and a Pan control. Two independent balanced, XLR outputs both with selectable MIC or LINE level. 1/8” inch Stereo Aux/Headphone output has been provided along with a Clip indicator, Power indicator, and Power switch. The unit is also powered by two 9-Volt alkaline batteries or the included 15VDC power supply.

Key Features

• Four balanced XLR Inputs
• Two balanced XLR Outputs
• Switchable Output Level (Line level, or mic)
• Switchable Phantom Power for each input
• Level controls for each channel
• 3.5mm Stereo Output
• Rolls PS27s 15 VDC external power supply included
• Powered by two 9-volt batteries or the included power supply

Technical Specifications

Input Impedance
600 Ohms MIC - 10k Ohms LINE
Output Impedance
600 Ohms MIC - 10k Ohms LINE
THD Noise
.02%
S/N Ratio
96 dB
THD Noise
.02%
Self-Noise
-65 dB maximum, -90 dB typical
Frequency Response
20 Hz - 20kHz (0 / -3 dB)
Max Output Level
14 dB
Max Gain
55 dB
Current Draw
30 mA with no Phantom Power or Signal
Phantom Power
15 VDC
Power
12-15VDC / < 300-500 mA
Size
8.5” w x 5.75” d x 1.5” h
Weight
2.05 lbs.
