Schoeps BLM 03 Cg Boundary Layer Capsule with Pressure Transducer in 3 Disk | Matte Black

Schoeps BLM 03 Cg Boundary Layer Capsule with Pressure Transducer in 3?€? Disk Matte Black

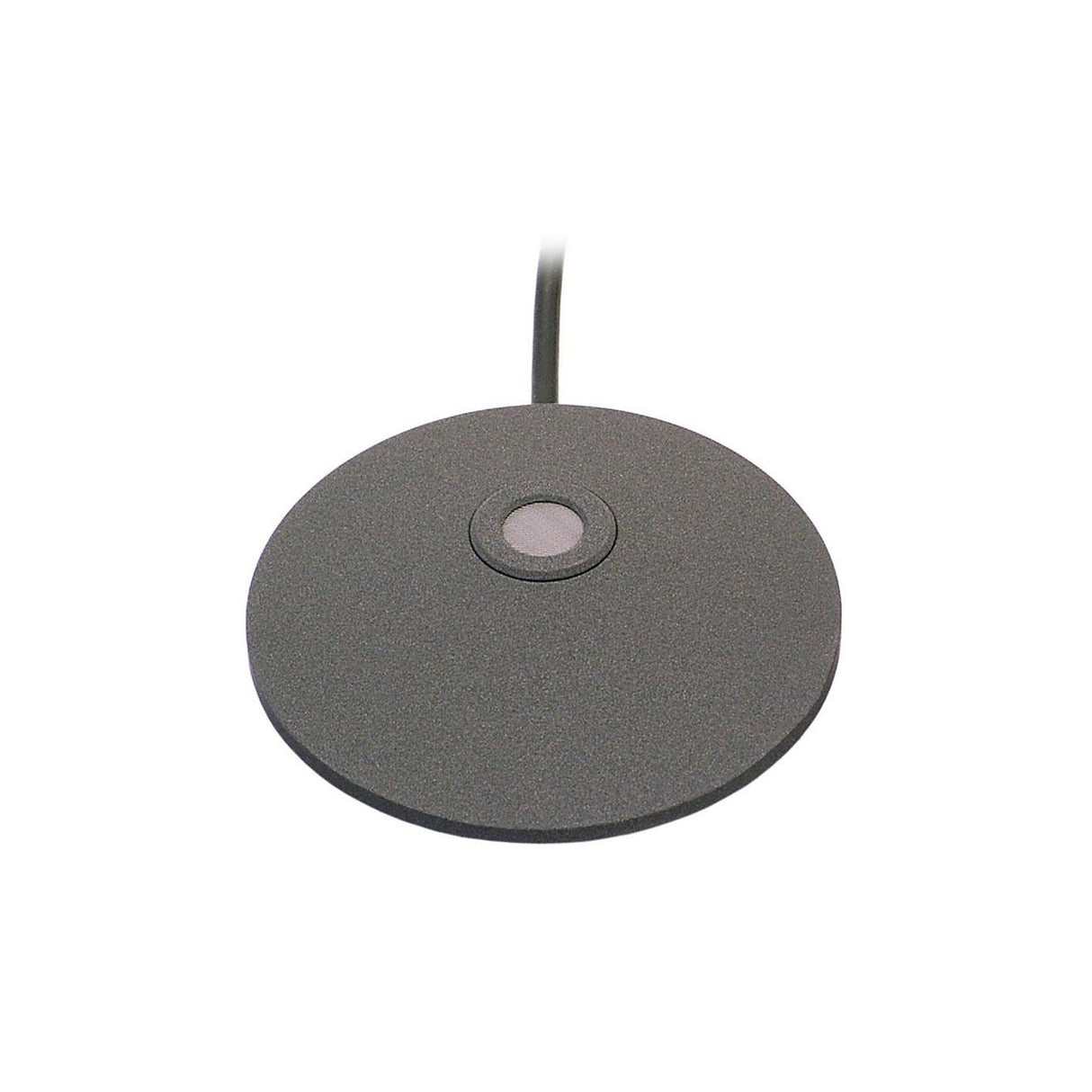

The Schoeps BLM03CG Boundary Layer Capsule with Pressure Transducer in 3” Disk | Matte Black is an accessory for the Colette Microphone Series. A 5 meter long active cable hard-wired to the BLM 03 Cg allows it to be joined to any microphone amplifier of the Colette Series to become a complete microphone. The Schoeps CUT 1 and CUT 2 active low-cut filters can be used with the BLM 03 Cg.

The small dimensions of the BLM 03 CG and its matte gray surface allow for a particular unobtrusive placement. It can often be disguised or hidden, e.g. under a light tablecloth. It'should be noted, however, that any boundary layer microphone must be placed on a sufficiently large sound-reflecting surface for adequate low-frequency reproduction. For speech applications, such as conference recording, a table-top may be sufficient. But most music pick-ups will require a larger surface.

Key Features

• Pressure transducer with hemispherical pattern

• Active miniature version of the BLM3g

• Unobtrusive, universally applivable

• Preferred applivations: on speaker's podiums, altars, ambient sound recording or for recording orchestras

• Diameter: only 80mm

Technical Specs

Frequency range

20 Hz - 20kHz

Sensitivity

19 mV/Pa

Equivalent niose level (A-weighted)

12 dB-A

Equivalent niose level (CCIR)

23 dB

Signal-to-noise ratio (A-weighted)

82 dB-A

Maximum Sound pressure level at 0.5% THD

128 dB-SPL

Diameter

80 mm

Weight

233 g (with CMC6) - 0.52 lbs

Surface finish

matte black
