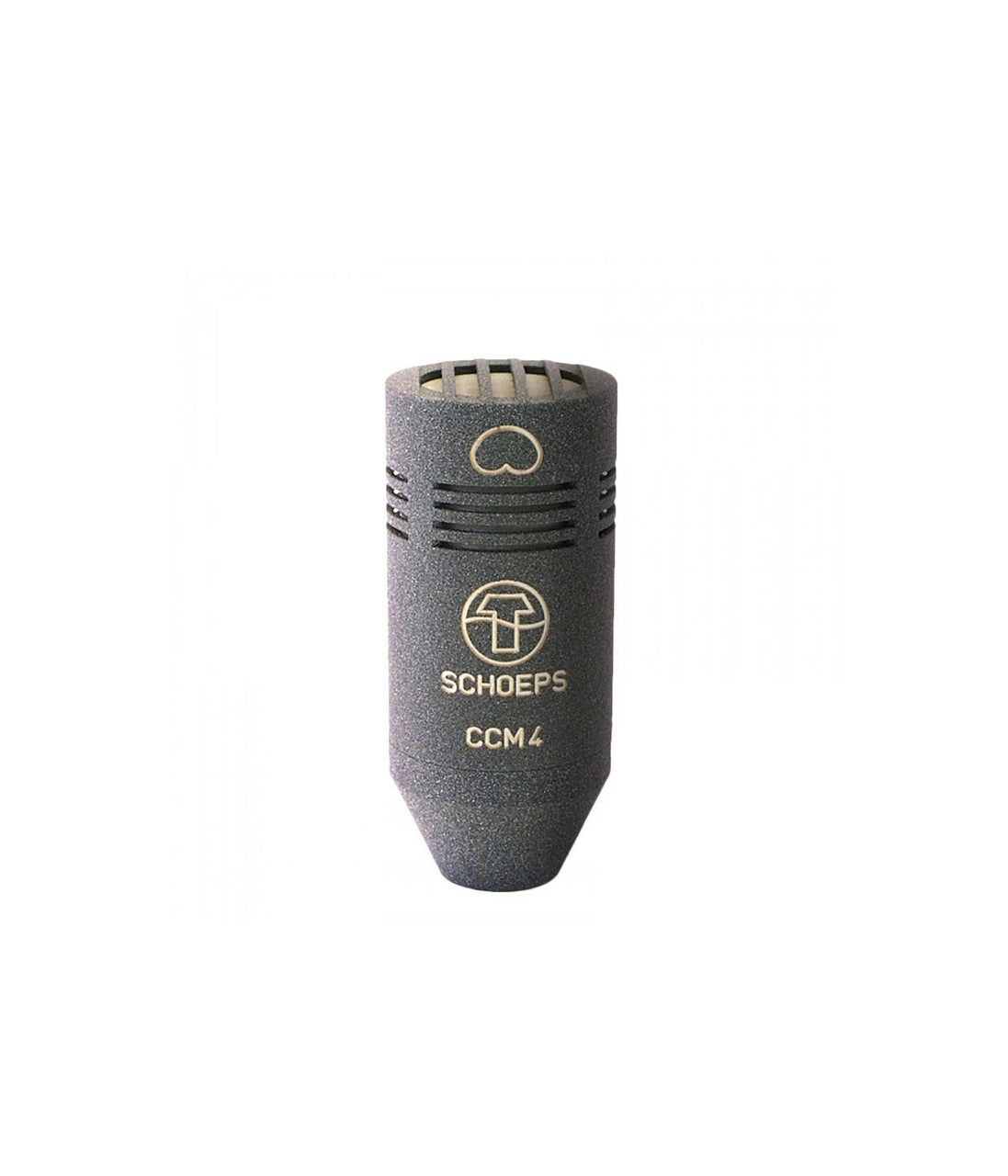

Schoeps CCM 4 Lg Cardioid Compact Condenser Microphone with Classic Unidirectional Pattern | Matte Black

Schoeps CCM 4 Lg Cardioid Compact Condenser Microphone with Classic Unidirectional Pattern Matte Black

The Schoeps CCM4LG Cardioid Compact Condenser Microphone with Classic Unidirectional Pattern | Matte Black is our best-selling compact microphone. It offers the highest sound quality, flat frequency response, optimal rejection of rear-incident sound, and a directional pattern that remains constant throughout the audio frequency range. In the diffuse sound field It'shows only a mild rise around 10 kHz; the sonic impression thus remains free of coloration even when sound is arriving from all sides at once. The sonic impression is thus free of coloration whether sound is arriving at the front or at the sides of the microphone, as well as for diffuse sound (reverberation) in a room.

Key Features

• Classic cardioid

• Suitable for the widest range of applications, either as a spot microphone or for stereo recording with coincident, ORTF or M/S microphone arrangements

• Consistent directionality throughout its frequency range

• Often preferred for singing or speaking voices and most instruments

Technical Specs

Current consumption with 12V

8mA

Current consumptionwith 48V

4 mA

Impedance

90Ω

Minimum recommended load impedance

600Ω

Low-cut frequency

20 Hz

Length

without connector: 46-58 mm

Diameter

20 mm

Weight

43 g - 0.09 lbs

Frequency range

40 Hz - 20 kHz

Sensitivity

13 mV/Pa

Equivalent niose level (A-weighted)

15 dB-A

Equivalent niose level (CCIR)

24 dB

Signal-to-noise ratio (A-weighted)

79 dB-A

Maximum Sound pressure level at 0.5% THD

132 dB-SPL
