Schoeps CCM 4 Ug Cardioid Compact Condenser Microphone with Classic Unidirectional Pattern | Matte Black
Schoeps CCM 4 Ug Cardioid Compact Condenser Microphone with Classic Unidirectional Pattern | Matte Black is backordered. Please call for ETA 877-779-8964
Condition: New
Schoeps CCM 4 Ug Cardioid Compact Condenser Microphone with Classic...
Description
Description
Schoeps CCM 4 Ug Cardioid Compact Condenser Microphone with Classic Unidirectional Pattern Matte Black
This Schoeps CCM4UG Cardioid Compact Condenser Microphone with Classic Unidirectional Pattern | Matte Black rigidly attached to one another and facing in the same direction. They can be tilted forward or backward together.
The second channel serves as a fail-safe backup.

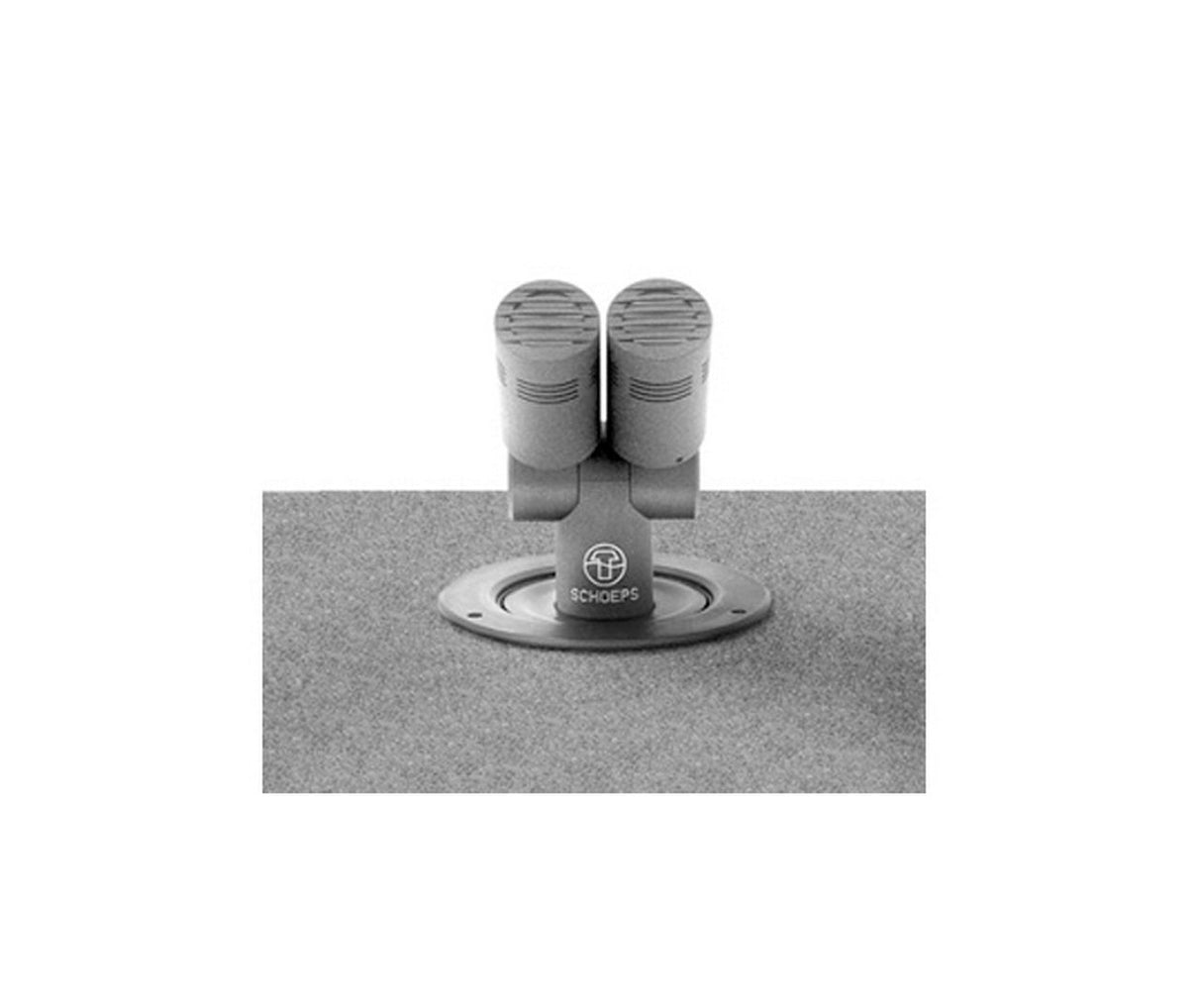

In the illustration at left the C2 CCM 4 Ug is shown, mounted in an AF 1 elastic suspension to provide isolation against solid-borne noise.
This product is manufactured only after we have received an order. Please request our delivery time.
Key Features
-
For mounting into a table-top
Technical Specs
Output socket
XLR-5M
Surface finish
Matte Black
Further technical specification
see CCM 4
Current consumptionwith 48V
4 mA
Impedance
90Ω
Minimum recommended load impedance
600Ω
Low-cut frequency
20 Hz
Length
46-58 mm
Diameter
20 mm
Weight
33 g - 0.07 lbs
Frequency range
40 Hz - 20 kHz
Sensitivity
13 mV/Pa
Equivalent niose level (A-weighted)
15 dB-A
Equivalent niose level (CCIR)
24 dB
Signal-to-noise ratio (A-weighted)
79 dB-A
Maximum Sound pressure level at 0.5% THD
132 dB-SPL
