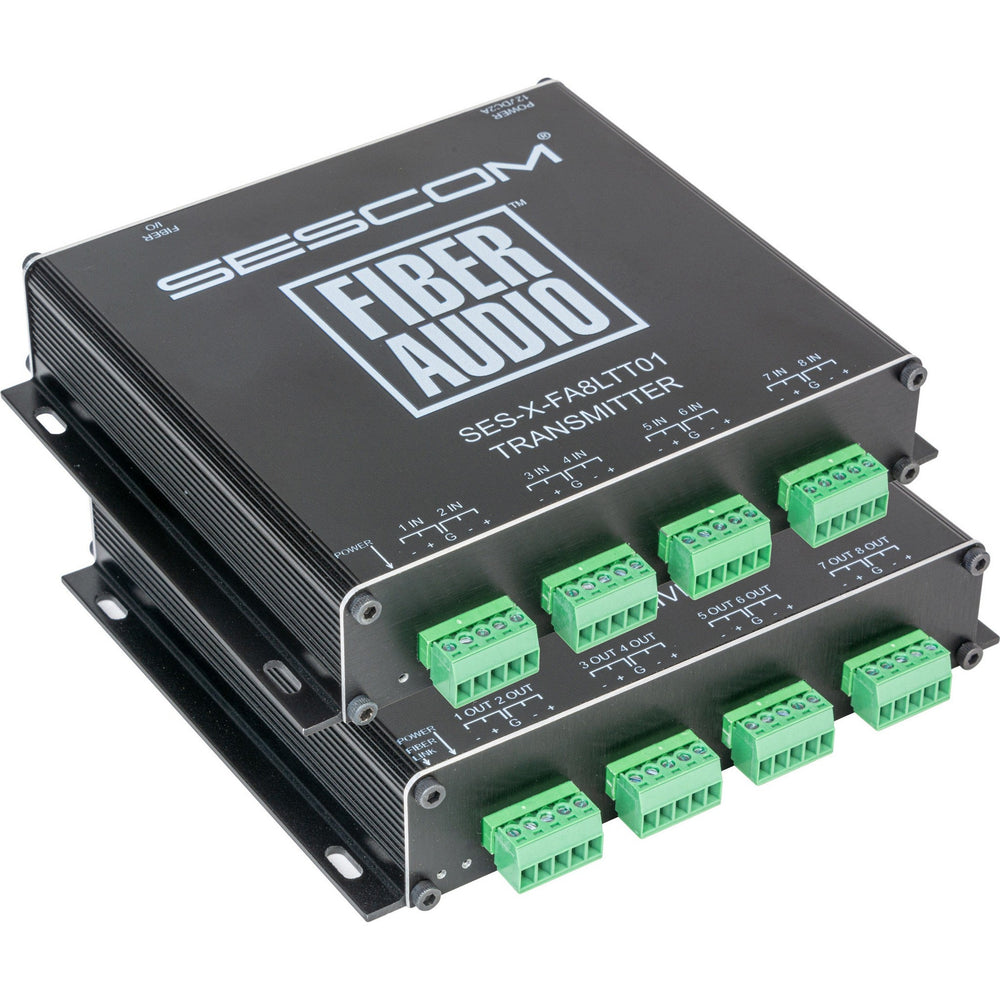

Sescom SES-X-FA8LTT01 8-Channel Audio Fiber Extender

Sescom SES-X-FA8LTT01 8-Channel Audio Fiber Extender

The professional cost-effective solution for sending 8 channels of balanced line level audio over a one single mode fiber cable is the Sescom X-FA8LTT01. It supports 24-bit digitally encoded analog audio and maintains a broadcast quality audio signal at distances up to 12.4 miles on single mode fiber.

Utilizing a Sescom X-FA8LTT01 extender ensures the purest signal transmission as fiber-based systems are superior to traditional copper at rejecting ground loop noise & suppressing EMI. The transmitter and receiver feature four 5-pin phoenix jacks for balanced audio connection via bare leads or use our included XLR to phoenix adapters. Professional bayonet style ST connectors ensure a consistent, uninterrupted signal. The complete transmitter and receiver kit is perfect for Stadiums, Live Event Stages, Broadcast TV, Theme Parks, Distance Surveillance and Professional AV.

Key Features

• 8-Channel XLR Audio to Fiber Transmission
• Phoenix 5-Pin Connectors
• 12-Inch Breakout Adapters: Phoenix 5-Pin to XLR Connectors
• ST Fiber Connector
• 24-Bit Digitally Encoded Analog Audio
• Transmission Distance: Multimode Fiber up to 984 feet / Single Mode Fiber up to 12.4 miles
• No Loss in Signal Quality
• Rejects Ground Loop Noise & Suppresses EMI
• Adjustment-Free Plug & Play Operation
• Enable Cascaded Audio Setups
• Line Level Balanced Audio Operation
• Indicator LEDs Monitor Fiber Link and Power
• Housed in Rugged Aluminum Enclosures
• FCC, CE, & RoHS Certified

Technical Specifications

Unity Gain
0dB
Sample Rate
48kHz, 24K bit rate
Frequency Response
20Hz - 20kHz
Input Impedance
50KΩ
Signal to Noise Ratio
> 90dB Ref. 4dBu, A Weighting
Total Harmonic Distortion
<0.05%
Maximum Balanced Input Signal
18dBu
Optical Wavelength
1310nm
Max Input/Output Voltage
17.4Vp-p
Input Power
12VDC/1A
Power Consumption
< 1W per unit
Weight
TX 13.7 oz / RX 13.7 oz
Overall Dimensions (LxWxH)
6.25 x 6.25 x 1.25 inch with flanges/plugs
Item Includes
1x 8CH Transmitter with Phoenix 5-pin Connectors & 1-8CH Receiver with Phoenix 5-pin Connectors
2x 12VDC/2A Power Supplies
4x 12 Inch Phoenix 5-Pin Break Out Adapters to 2 XLR Female Neutrik Connectors
4x 12 Inch Phoenix 5-Pin Break Out Adapters to 2 XLR Male Neutrik Connectors
1x Meter 9u/125u Single Mode Fiber Optic Patch Cable
Warranty
1 Year
