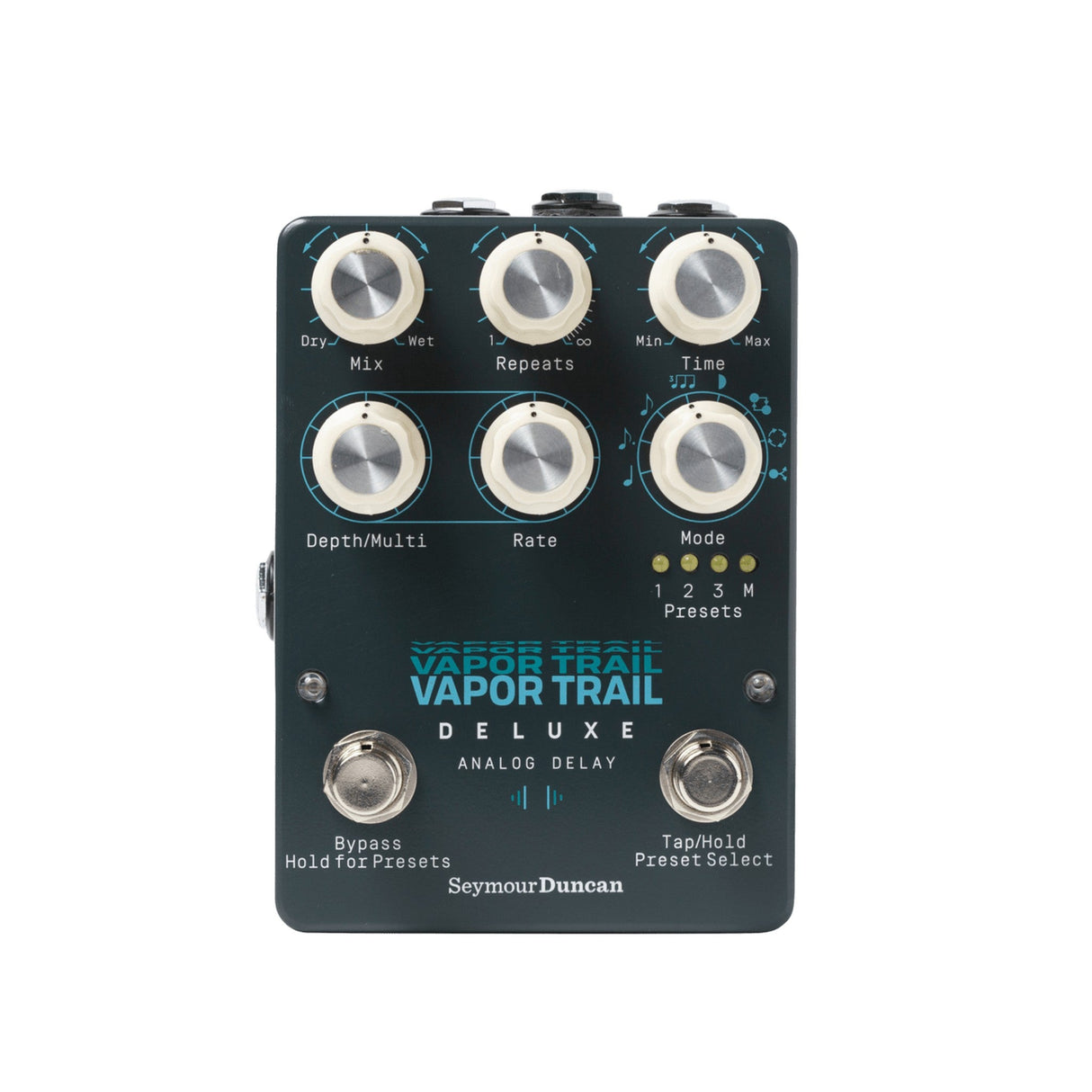

Seymour Duncan Vapor Trail Deluxe Analog Delay Effects Pedal

Seymour Duncan Vapor Trail Deluxe Analog Delay Effects Pedal

The Vapor Trail Deluxe builds on the proud legacy of our original Vapor Trail analog delay pedal. Its warm Bucket Brigade repeats and 3-dimensional modulation continues to inspire guitarists around the world. But its expanded control, new sonic modes, and storable preset locations make the Vapor Trail Deluxe analog delay one of a kind.

100% Analog, Bucket Brigade Tone
The Vapor Trail Deluxe offers 100% analog warmth and character. And with four of the largest Bucket Brigade chips in production, it delivers enhanced tone and increased delay times up to 1.2 seconds. Those chips are also responsible for the pedal’s modulation that goes from a subtle shimmer to rotary speaker-like warble with ease.

Total Control
We worked hard to give the Vapor Trail Deluxe an inspiring analog tone. But we were just getting started. We’ve also outfitted the pedal with tap tempo with subdivisions, expression pedal control, and delay tails on/off options for letting your repeats carry over. And once you’ve dialed in your perfect repeats, you can store them for on the fly recall in one of three preset locations.

Limitless Ambient Inspiration
The Vapor Trail Deluxe is also the perfect platform for ambient sonic exploration. First, we carried over the original’s Wet Insert for adding your own outboard effects to the repeated signal. Then we added four new modes that push the boundaries of analog delay.

Micro Delay
Extremely fast repeats for replicating double-track, slapback, and Leslie speaker-like effects.

Pitch Sequence
Introduces up and down octaves in eight customizable, rhythmic sequences.

Pitch Bender
Puts dive-bomb and glissando control at the tap of your toe.

Runaway
The endless repeats and building energy of runaway delay with effortless control.

Technical Specifications

Type of circuitry
All-analog signal path using Bucket-Brigade Devices with digital control of functions.
Bypass
True hard-wire bypass with selectable active-bypass trailing repeats mode.
Control functionality
Mix - Wet signal 0% to 200% (Dry fixed at 100%)
Repeats - Continuous adjustment from one echo to full runaway
Time - Normal
33ms to 1.6s; Micro 8ms to 400ms
Depth - Modulation from off to Insane
Rate - 10 seconds per cycle to 10 cycles per second
Mode - Four fractional beat settings plus four exotic modes (see user manual)
Auxiliary Functions
Expression pedal sweeps smoothly between two user-selected control settings. Insert jack provides and wet channel insert loop and wet-only output.
Input Impedance
1 Megohm
Output Impedance
1000 ohms
Gain Range
Dry Channel: unity gain
Wet Channel: off to +6dB maximum
THD
Dry channel: 0.003% @ 1Vrms output.
Wet Channel: 1% @ 100mVrms output, 3.5% @ 1Vrms output
Noise referred to input
Dry Channel: <-102dBV, 400Hz to 20kHz
Wet Channel: <-96dBV, 400Hz to 20kHz
Frequency response
Dry Channel: 2Hz - 150kHz
Wet Channel: 30Hz to 2kHz
Power
External 9V to 18V regulated DC adapter (center pin negative)
Current consumption
150mA Maximum
Dimensions
3.57” x 4.80” x 1.60”, exclusive of knobs and connectors
Weight
0.9lbs
