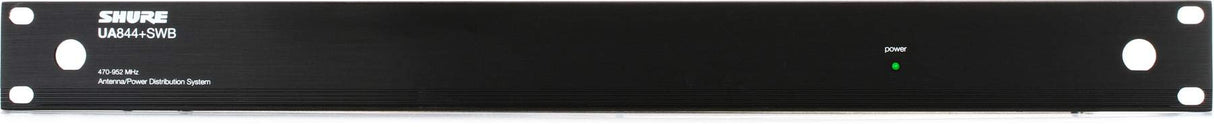

The Shure Model UA844SWB is a UHF antenna distribution system that allows the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. It also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs. A single UA844SWB system can support up to four wireless receivers. A maximum of five UA844SWB systems may be used in a two-tiered configuration.

UA844SWB: Includes all components
UA844SWB/LC: Includes all components, excluding locking power cablesed

Key Features

• Front-mounting antenna hardware
• Rack-mounting hardware
• External power supply
• Antenna cables and hardware for receiver connections (not included in UA844SWB/LC)
• Locking and non-locking DC power cables for receiver connections (locking cables not included in UA844SWB/LC)

Technical Specifications

Power Requirements
14 to 18V DC

DC Output
14 to 18V DC (x4)

Output Current
Combined total from all DC outputs 2.5 A, maximum

Operating Temperature Range
−7°C (20°F) to 49°C (120°F)

Dimensions
45 x 483 x 172 mm (H x W x D)

Net Weight
1.62 kg(3.6 lbs)

Connector Type
BNC

RF Frequency Range
470 to 952 MHz

Bias Voltage
12V DC (150 mA max.) (x2)

Impedance
50 Ω

RF Frequency Range
470 to 952 MHz

Output Intercept Point (OIP3)
21 dBm, typical

Connector Type
BNC

Impedance
50 Ω

Output Connector Isolation
30 dB, typical

Gain
Input to any output port (Unused ports terminated in 50 Ω)
−0.5 to 3.0 dB
