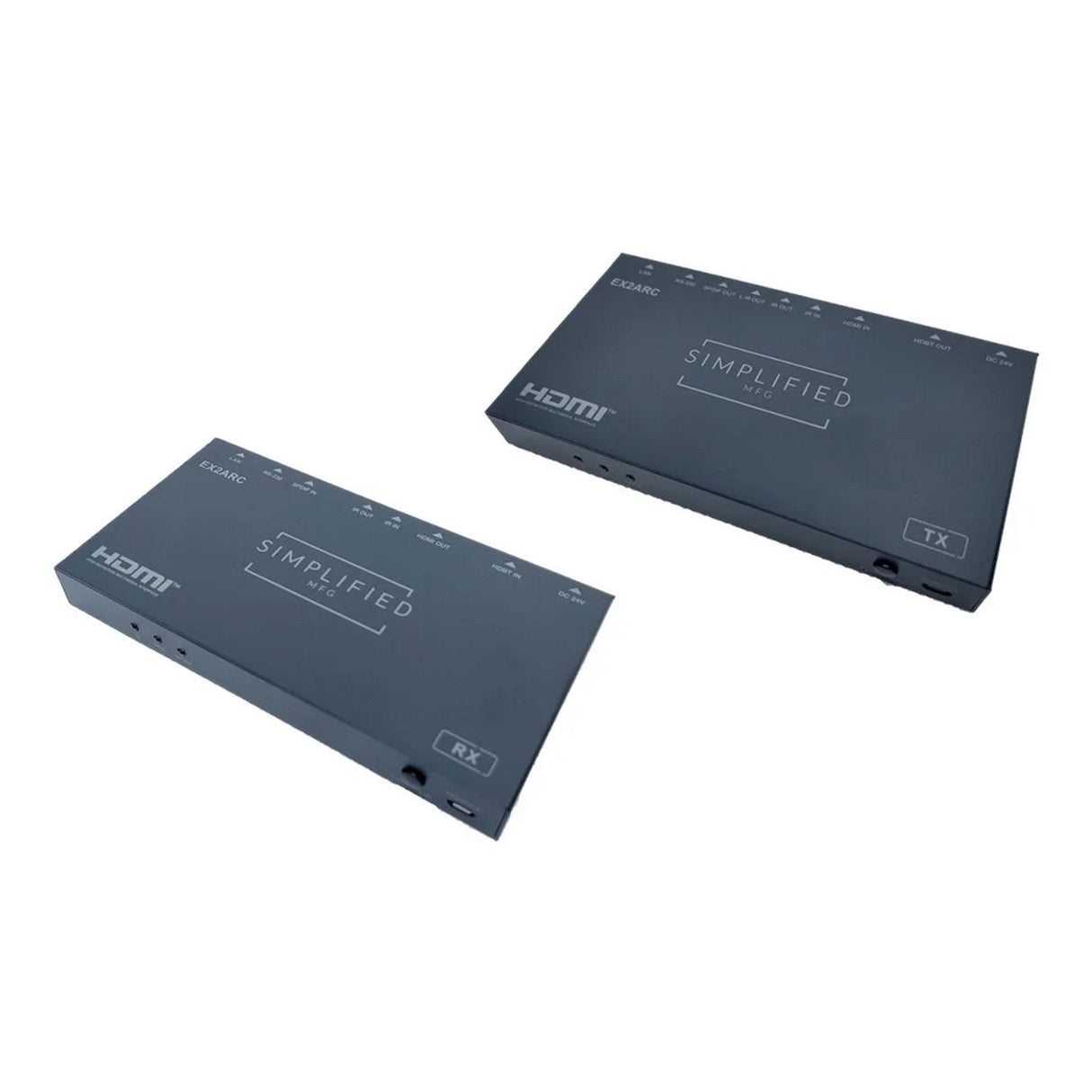

Simplified MFG EX2ARC 4K HDMI/Cat6/Cat 5e 18Gbps Extender
Description
Description
Simplified MFG EX2ARC 4K HDMI/Cat6/Cat 5e 18Gbps Extender
The EX2ARC 18Gbps HDMI Extender is a device which can extend your HDMI signal over 330ft/100meters to a compatible 1080p display, 295ft/90meters to a HDMI 2.0b 18gbps compatible display. The EX2ARC supports HDR8/10/10+ and Dolby Vision as well as the entire HDMI 2.0b standard. The multifunction ARC/Audio feature makes the EX2ARC great for “one wire” situations or when you need to bring audio back to the TX/Rack from the display. It also supports Bidirectional 12V Infrared control, RS232, & 100 Base T Ethernet together with the 18gbps HDMI 2.0b signal.
Key Features
- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
- Video resolutions up to 4K2K@50/60Hz (YUV444)
- HDR8/10/10+ (High Dynamic Range) pass through
- Dolby Vision pass through
- Supports ARC or S/PDIF return from display to TX/Rack
- Supports HDMI High Bit Rate (HBR) audio pass through
- Supports CEC
- Two-way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)
- 100 BaseT Ethernet pass through
- 12V Bidirectional Infrared control signal together with the HDMI signal.
- Transfer Bidirectional RS232 control signal together with the HDMI signal.
- Transmission distance: Over CAT6 cable
- 1080P @60Hz36bit; 3D1080P@30Hz36bit
- 4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)
- 3-Year Warranty
Technical Specifications
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 and HDCP 1.4
Video Bandwidth
18 Gbps
Video Resolutions
up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
8-bit,10-bit, 12-bit
HDMI Audio Formats (Pass-through)
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
POE Format
24V
ESD Protection
Human body model - ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs: Transmitter
1x HDMI Type A <19-pin female>
1x IR INPUT <3.5mm Stereo Mini-jack>
1x RS232
1x Service [Mini-USB jack
Inputs: Receiver
1x HDBaseT in
1x IR INPUT <3.5mm Stereo Mini-jack>
1x RS232
1x Service
Outputs Transmitter
1 x HDBaesT
1 x Optical S/PDIF
1X 3.5mm Mini
1 x 3.5mm Mini <12V IR>
1 x LAN
Outputs Receiver
1x HDMI Type-A <19-Pin>
1 x LAN
1 x 3.5mm Mini 12V IR
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
183mm/7.2”
Weight
450g/15.88 oz.
Power Supply Input
AC100 - 240V 50/60Hz
Power Supply Output
DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption
24W (Max)
Operation Temperature
32 - 104 Degrees F / 0 - 40 Degrees C
Storage temperature
-4 - 140 Degrees F / -20 - 60 Degrees C
Relative Humidity
20 - 90% RH (no condensation)
