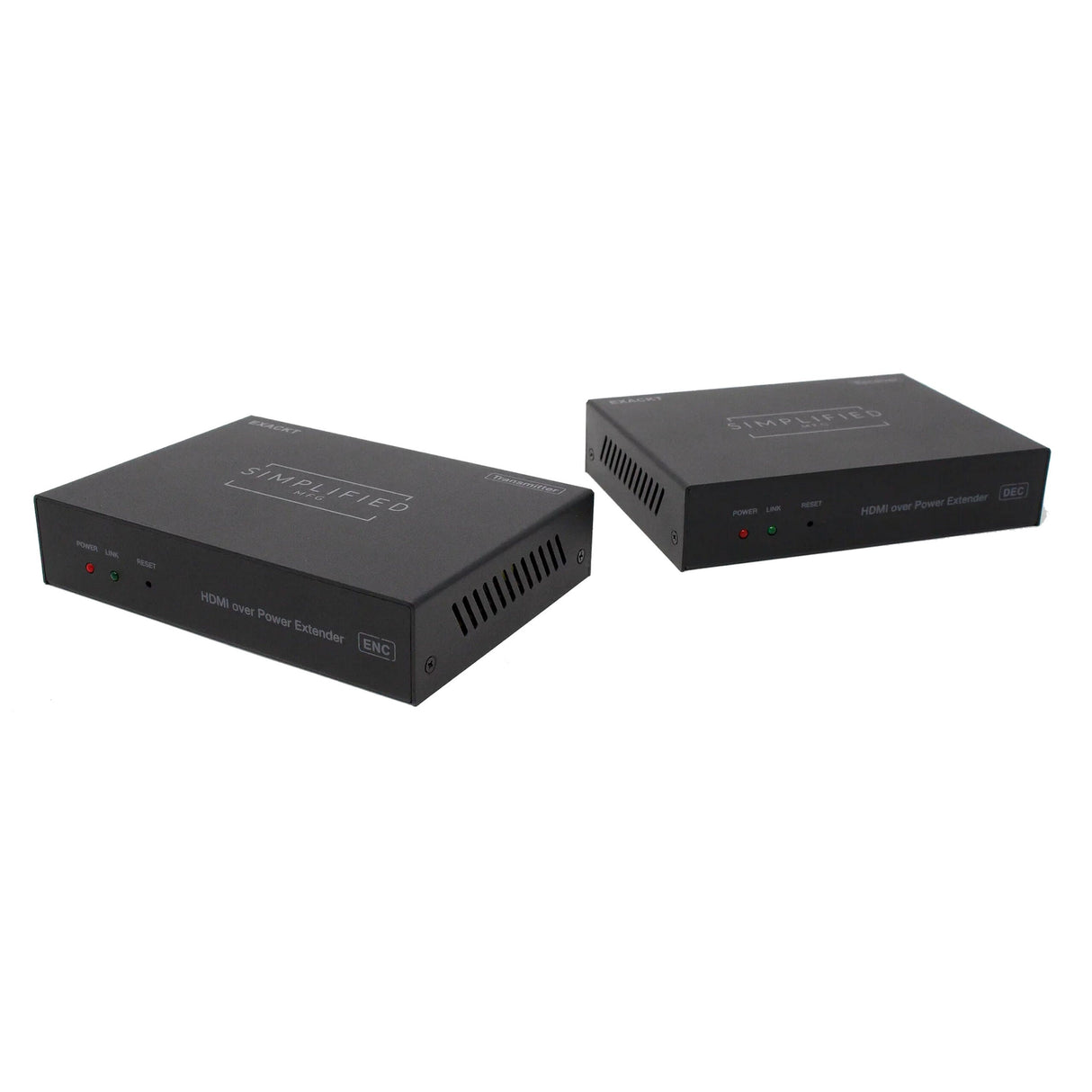

Simplified MFG EXACKT Extender over AC Kit
The EXACKT is an HDMI extender that uses the AC wiring as a medium to transmit HDMI signals that have been converted to H.265 from the TX to the RX. This is a “plug and play” solution. Simply plug the HDMI source into the TX and plug it into the AC outlet, then connect the RX to the display and plug it into the AC outlet, done! The EXACKT also includes an IR receiver and blaster to transmit IR signals from the display (RX end) back the the TX end for source control. You can use up to two extra RX devices for a total of three. The part number is EXAC DEC.
Key Features
- Plug and Play operation
- Up to 3 RX devices can be used with TX
- HDMI 1.3 (6.75Gbps), HDCP 1.4 compliant
- Video resolutions up to 1080p
- LPCM Stereo (32kHz., 44.1kHz., & 48kHz.
- HDMI “loop through” to extend existing HDMI circuit to another display
- Infrared control signal is transmitted together with the HDMI signal (from RX to TX)
- Supports 480i/480p/720p/1080i/1080p/1400x1050 resolutions
- Transmission distance: 70m/ 232 ft.
- 3-Year Warranty
Technical Specifications
HDMI Compliance
HDMI 1.3
HDCP Compliance
HDCP 1.4
Video Bandwidth
6.75 Gbps
Video Resolution
Up to 1080p
Color Space
RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4
Color Depth
8/10/12-bit
HDMI Audio Formats
LPCM 2.0 32kHz., 44.1kHz., & 48kHz.
ESD Protection
Human body model - ±8kV (Air-gap discharge)
±4kV (Contact discharge)
Connections
Transmitter Inputs
1 x HDMI Type-A <19 pin female>
1 x IEC320 AC cord connection
Receiver Inputs
1 x 3.5mm
1 x IEC320 AC Connection
Transmitter Outputs
1 x HDMI Type-A <19 pin female>
1 x 3.5mm
Receiver Outputs
1 x HDMI Type-A <19 pin female>
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions (RX and TX)
135mm (5.31”)
Weight (RX and TX)
405g (14.28 oz.)
Power Supply
Input: AC 100 - 240V 50/60Hz.
Power Consumption
3.5W Max each
Operating Temperature
32 - 104 Degrees F / 0 - 40 Degrees C
Storage Temperature
-4 - 140 Degrees F / -20 - 60 Degrees C
Relative Humidity
20 - 90% RH (no condensation)
