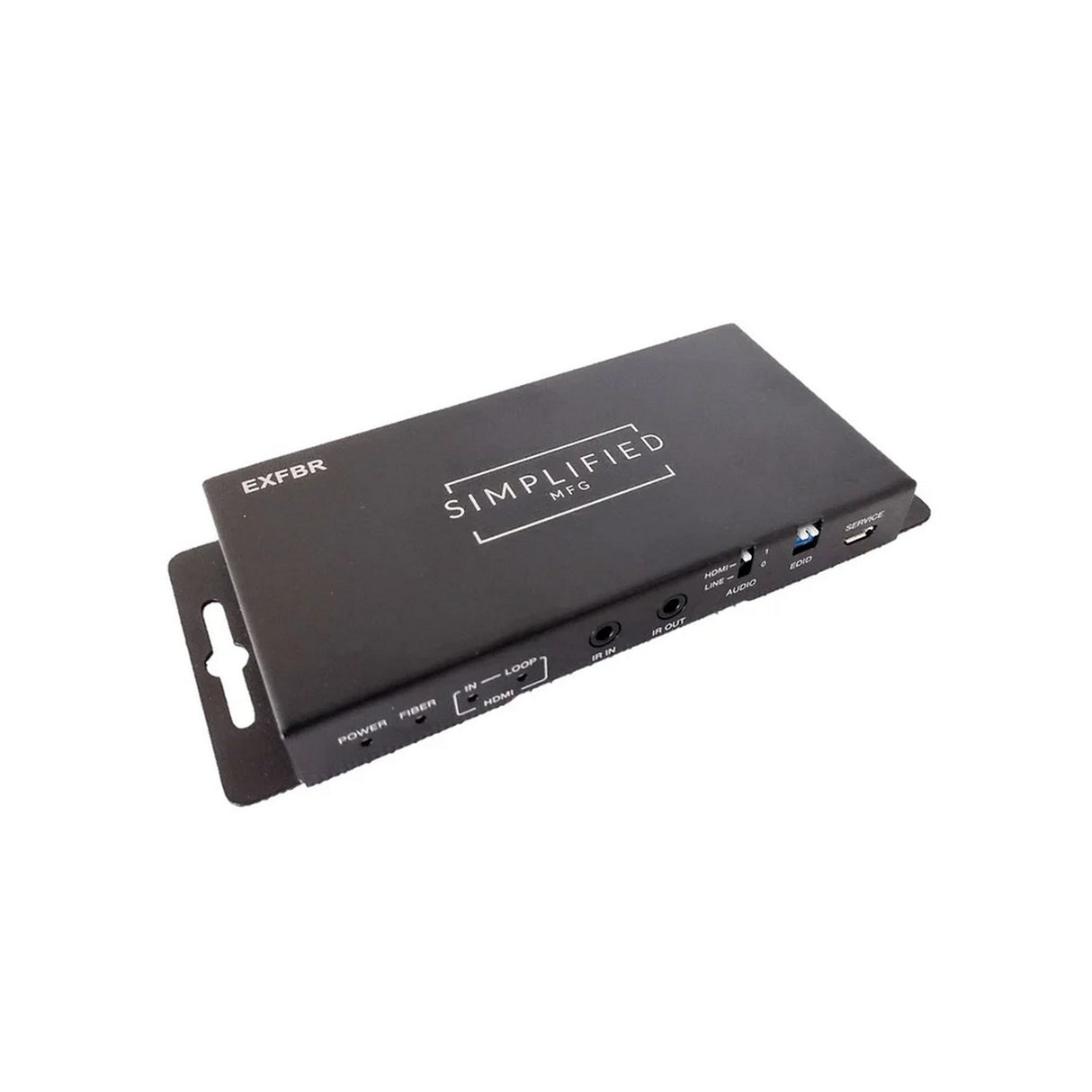

Simplified MFG EXFBR HDMI 18Gbps Extender Over Fiber

Simplified MFG EXFBR HDMI 18Gbps Extender Over Fiber

The EXFBR 18Gbps HDMI Extender is a device which can extend your HDMI signal over 10,000meters on single mode fiber to a compatible HDMI 2.0b display. The EXFBR supports HDR8/10/10+ and Dolby Vision as well as the entire HDMI 2.0b standard. It also supports Bi-directional Infrared control, RS232, audio insertion or pass-through, and EDID management. The kit also includes the SFP modules.

Key Features

• HDMI 2.0b (18Gbps)
• HDCP 2.2
• Video resolutions up to 4K2K@50/60Hz (YUV444)
• HDR8/10/10+ pass through
• Dolby Vision pass through
• Supports HDMI High Bit Rate (HBR) audio pass through
• The kit includes SFP modules
• Bidirectional Infrared control signal together with the HDMI signal
• Transfer Bidirectional RS232 control signal together with the HDMI signal
• Audio Insertion or pass-through ability
• EDID management
• Transmission distance over single mode fiber: 10,000 meters/33,000 Ft.

Technical Specifications

HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 & HDCP 1.4
Video Bandwidth
18Gbps
Video Resolutions
Up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
8-bit, 10-bit, 12-bit
HDMI Audio Formats
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Operation Range
Up to 33,000 feet/10,000 meters over single-mode fiber cable
IR Frequency
20KHz - 60KHz
RS-232 Baud Rate
4800-115200bps
ESD Protection
Human body model - ±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions
134mm/5.28” x 68mm/2.68” x 18mm/0.71”
Weight
TX: 280g/9.88oz. RX: 278g/9.8oz.
Power Supply
Input: AC100 - 240V 50/60Hz
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption
TX 3.85W (max) RX .2.7W (max)
Operating Temperature
32 - 104 Degrees F / 0 - 40 Degrees C
Storage Temperature
-4 - 140 Degrees F / -20 - 60 Degrees C
Relative Humidity
20 - 90% RH (no condensation)
