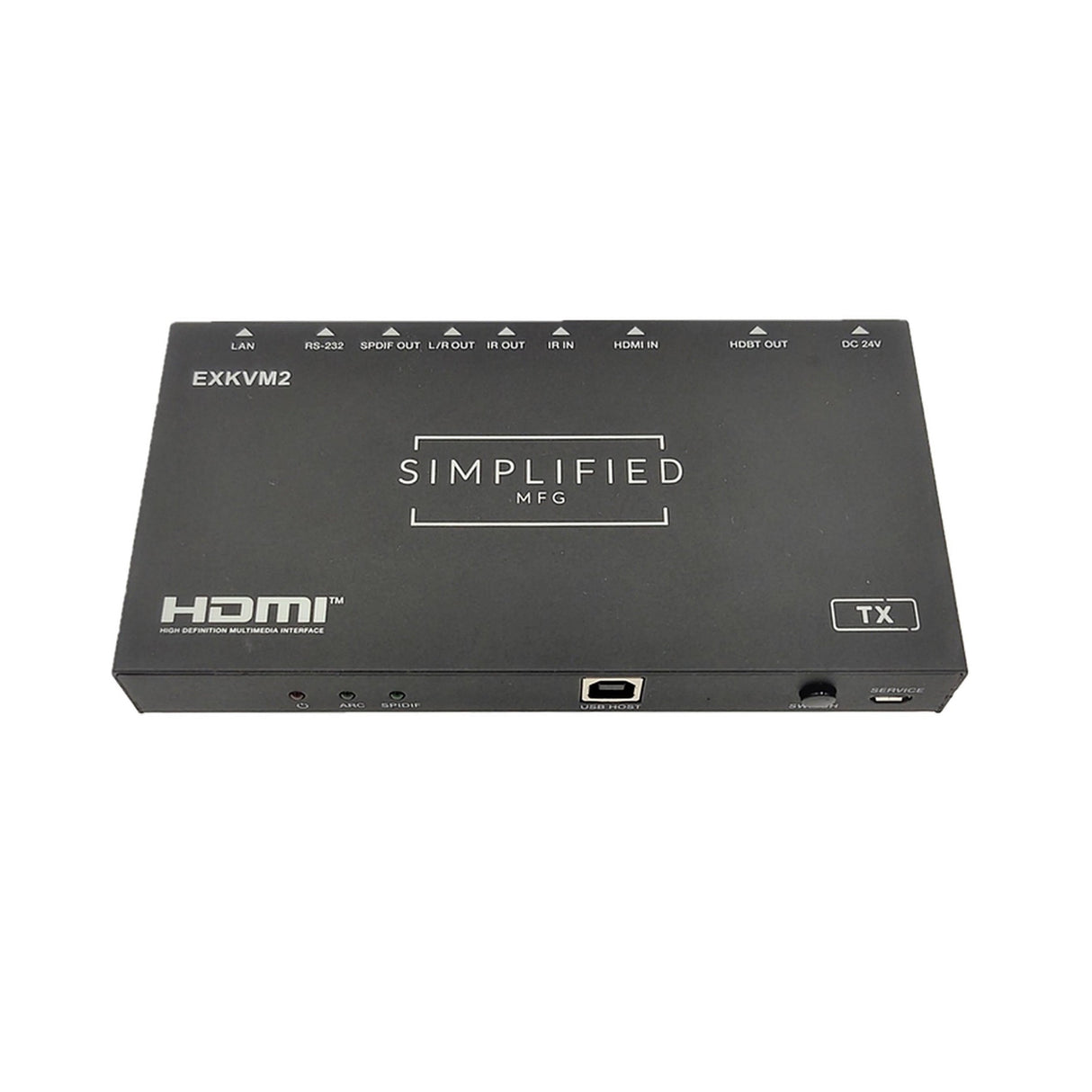

Simplified MFG EXKVM2 HDMI 18Gbps Extender over Cat6/6A
The EXKVM2 Extender is a device which can extend your HDMI signal over 295ft/90meters to a compatible 4K display, 330ft/100meters to a 1080p compatible display, while simultaneously, returning audio and USB camera signals while sending the AV to the display along with control and Ethernet. It is designed to convert HDMI signal to standard HDBaseT signal which can be transmitted by category cable. The features include ARC return to TX via S/PDIF in or HDMI to display, Ethernet passthrough, USB 2.0, RS232, 2-Way 12V IR, and the ability to power on one end (RX or TX).
Key Features
- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
- Video resolutions up to 4K2K@50/60Hz (YUV444)
- ARC from Display to S/PDIF on TX
- USB 2.0 (Client or Server from either end)
- S/PDIF send from Display to S/PDIF on TX
- 100 BaseT Ethernet passthrough
- Two-way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)
- Bidirectional 12V Infrared control signal together with the HDMI signal
- Transfer Bidirectional RS232 control signal together with the HDMI signal
- Transmission distance: Over CAT6 cable
- 1080P @60Hz36bit; 3D1080P@30Hz36 bit
- 4K x 2K HDR/DolbyVision YUV 444 HDMI 2.0b (18Gbps)
- 3-Year Warranty
Technical Specifications
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 and HDCP 1.4
Video Bandwidth
18 Gbps
Video Resolutions
up to 4K2K@50/60Hz (YUV4:2:0),4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
8-bit, 10-bit, 12-bit
HDMI Audio Format (Passthrough)
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
POE Format
24V
ESD Protection
Human body model - ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs Transmitter
1x HDMI Type A <19-pin female>
1 USB Mini (Service Port)
1 Optical SPDIF
1 3.5mm IR
1 RS232 3 Pin Phoenix
1 USB 2.0 (Host)
2 USB 2.0 (Devices)
1 LAN
1 Optical S/PDIF
Inputs Receiver
1 HDBaseT
1 USB Mini (Service Port)
1 3.5mm IR
1 RS232 3 Pin Phoenix
1 USB 2.0 (Host)
2 USB 2.0 (Devices)
1 LAN
Outputs Transmitter
1 HDBaseT
1 Optical SPDIF
1 3.5mm IR
Outputs Receiver
1 HDMI
1 3.5 mm IR
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
160mm/6.3”
Weight
470g/16.57oz. each
Power Supply Input
AC100 - 240V 50/60Hz
Power Supply Output
DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption
24W (Max)
Operation Temperature
32 - 104 Degrees F / 0 - 40 Degrees C
Storage Temperature
-4 - 140 Degrees F / -20 - 60 Degrees C
Relative Humidity
20 - 90% RH (no condensation)
