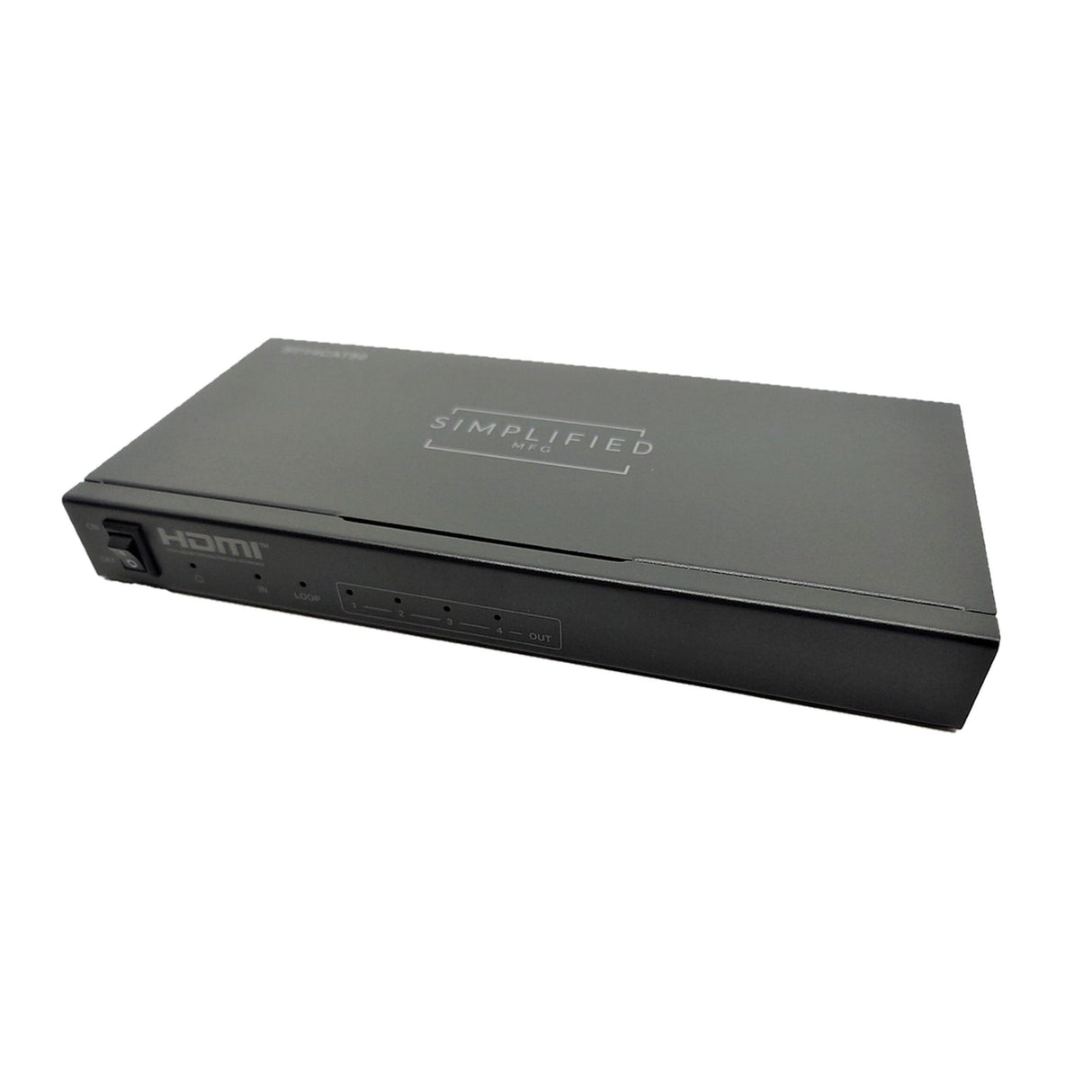

Simplified MFG SP14CAT50 HDMI 18gbps 1 x 4 HDMI Splitter on Category Cable

Simplified MFG SP14CAT50 HDMI 18gbps 1 x 4 HDMI Splitter on Category Cable

The SP14CAT50 is an18gbps 4K/UHD Splitter 1 to 4 HDMI splitter over category cable. The SP14CAT50 supports HDCP 2.2/1.4 and is a solution for splitting a single HDMI input to four HDMI outputs where you need to send the output over distance. The receivers are powered by the TX, compact (about the footprint of a credit card). EDID can be managed from the TX with the ability to copy or use EDID from the integrated EDID library. The SP14CAT50 is rated at 50m at 4K and 70m at 1080p while supporting the all-latest features of the most advanced HDMI 2.0b signals including HDR8/10/10+ and Dolby Vision. IR from the RX devices are returned to the TX for source control. The technology used is also very efficient, this device only draws 14W. Also, there is a loop out to cascade more devices to make a larger splitter. Also see the SP18CAT120 for more outputs and a longer distance.

Key Features

• Compliant with HDMI2.0, HDCP2.2 and DVI 1.0
• Supports video formats up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:4:4
• Supports HDR8/10/10+ and Dolby Vision
• EDID can be copied or can be circumvented by using EDID files from the EDID library in the TX device
• Link and signal lights on the TX/RX for easy trouble shooting
• Supports high resolution VESA mode video format up to QSXGA@60Hz
• Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
• Highly efficient/low power consumption (14W)
• 3-Year Warranty

Technical Specifications

Video Bandwidth
600MHz/18Gbps
Input Ports
1 x HDMI (Female type)
Output Ports
4 x HDBaseT
Output Resolution
480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz
ESD Protection: Human Body Model
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Power Supply
12V/2.5A DC (US/EU standards, CE/FCC/UL certified)
Dimensions
TX: 210 mm/8.25” (W) x 100 mm/4” (D) x 25 mm/1” (H) RX: 81mm/3.2” x 68mm/2.67” x 18mm/ .7”
Weight
TX: 595g (1lb., 5oz.) RX: 155g (5.5oz.)
Chassis Material
Metal
Operating Temperature
0 Degrees C~40 Degrees C/ 32 Degrees F~104 Degrees F
Storage Temperature
-20 Degrees C ~ 60 Degrees C/-4 Degrees F ~140 Degrees F
Relative Humidity
20~90 % RH (non-condensing)
Power Consumption (Max)
14W
