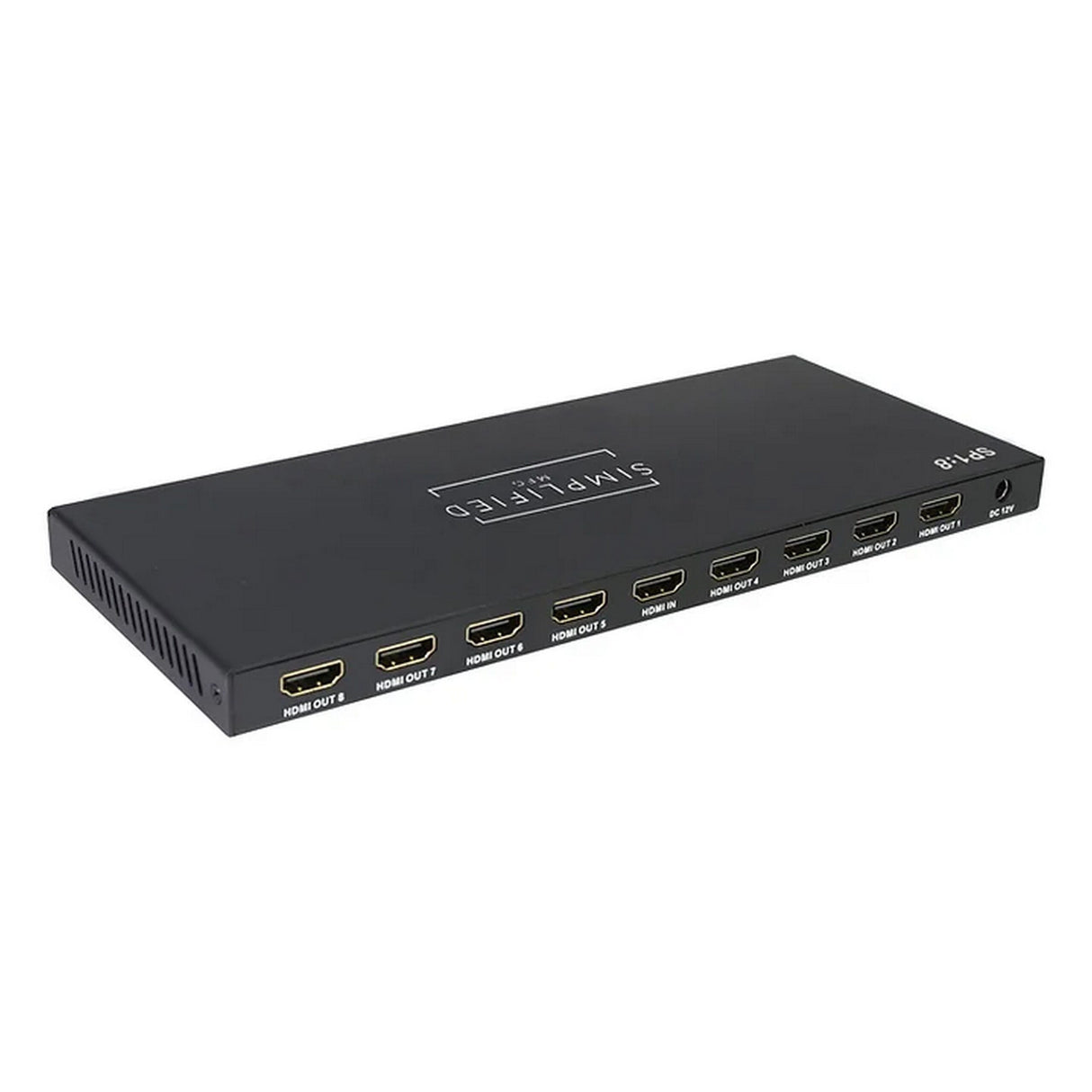

Simplified MFG SP1:8 HDMI 18gbps 1 x 8 HDMI Splitter
Description
Description
Simplified MFG SP1:8 HDMI 18gbps 1 x 8 HDMI Splitter
The SP1:8 is 1 by 8 HDMI 18gbps 4K/UHD Splitter with HDCP 2.2 is a solution for splitting a single HDMI input to eight HDMI outputs. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz (YUV444) resolution and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss. Supporting the all-latest features of the most advanced HDMI 2.0b signals including HDR8/10/10+ and Dolby Vision.
Key Features
- Compliant with HDMI2.0, HDCP2.2 and DVI 1.0
- Supports video formats up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:4:4
- Supports HDR8/10/10+ and Dolby Vision
- EDID copy copies output 1 automatically
- EDID switch changes all outputs to 1080p for troubleshooting
- Supports high resolution VESA mode video format up to QSXGA@60Hz
- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- Supports smart EDID control
- 3-Year Warranty
Technical Specifications
Video Bandwidth
600MHz/18Gbps
Input Ports
1 x HDMI (Female type)
Output Ports
8 x HDMI (Female type)
Output Resolution
480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz
ESD Protection: Human Body Model
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Power Supply
12V/2.5A DC (US/EU standards, CE/FCC/UL certified)
Dimensions
245 mm/9.65”
Weight
630g/1lb., 6.2oz.
Chassis Material
Metal
Operating Temperature
0 Degrees C~40 Degrees C/ 32 Degrees F~104 Degrees F
Storage Temperature
-20 Degrees C ~ 60 Degrees C/-4 Degrees F ~140 Degrees F
Relative Humidity
20~90 % RH (non-condensing)
Power Consumption (Max)
30W
