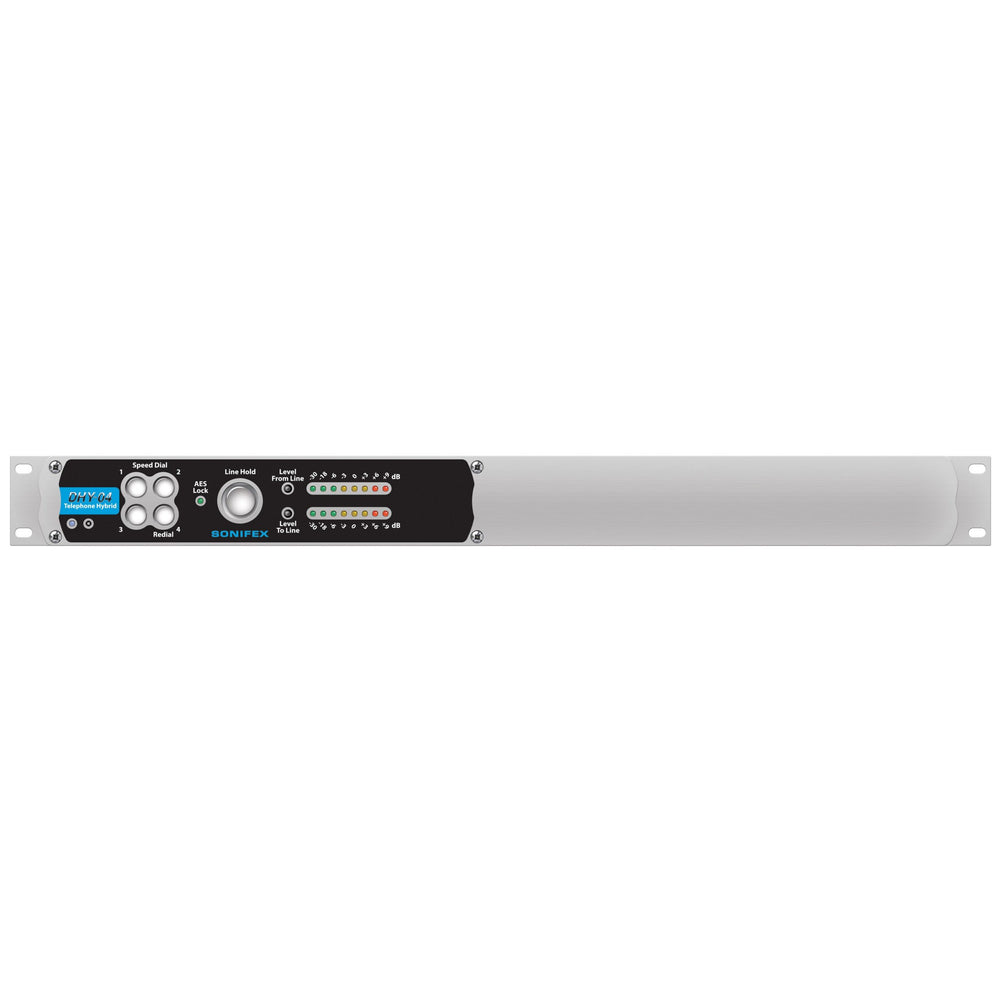

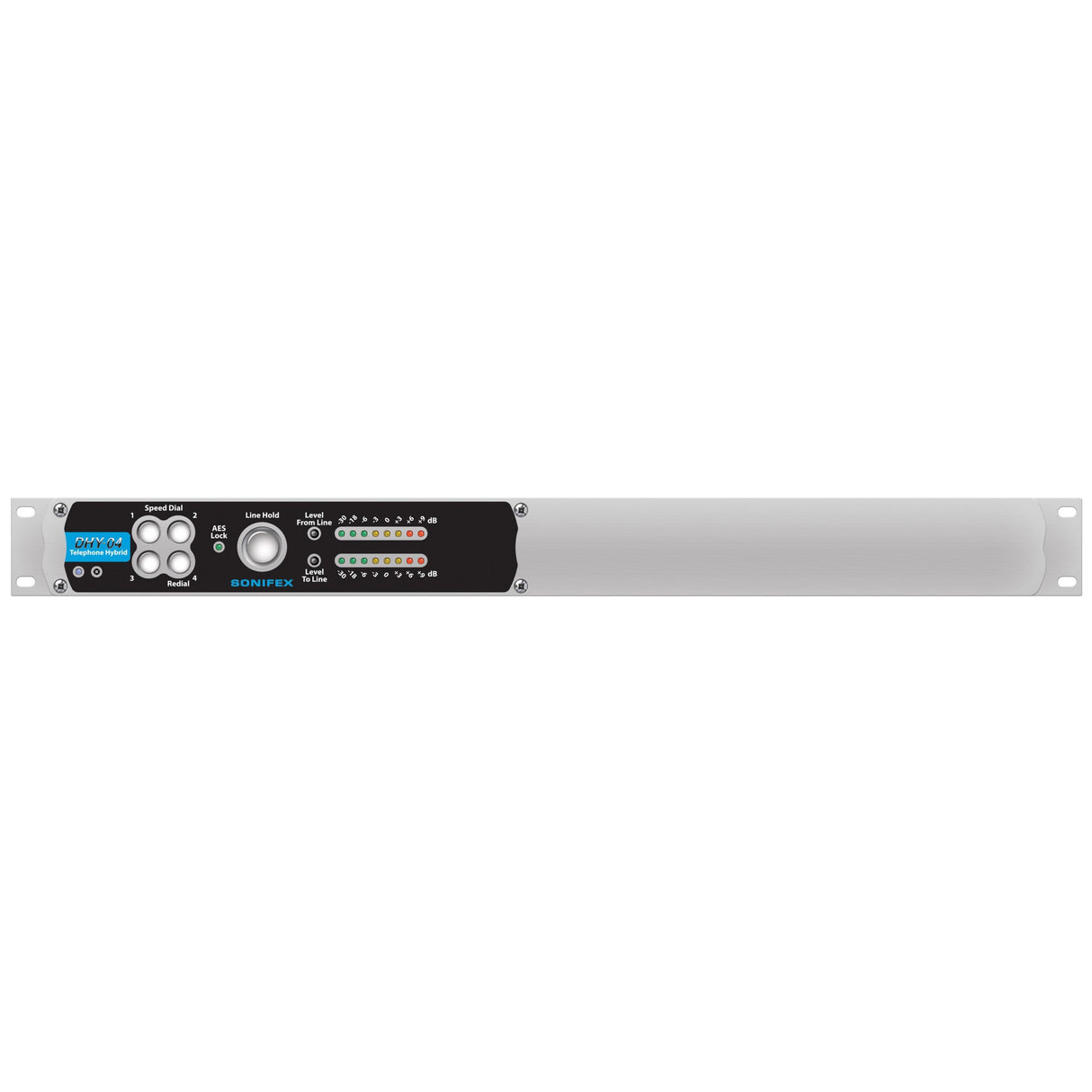

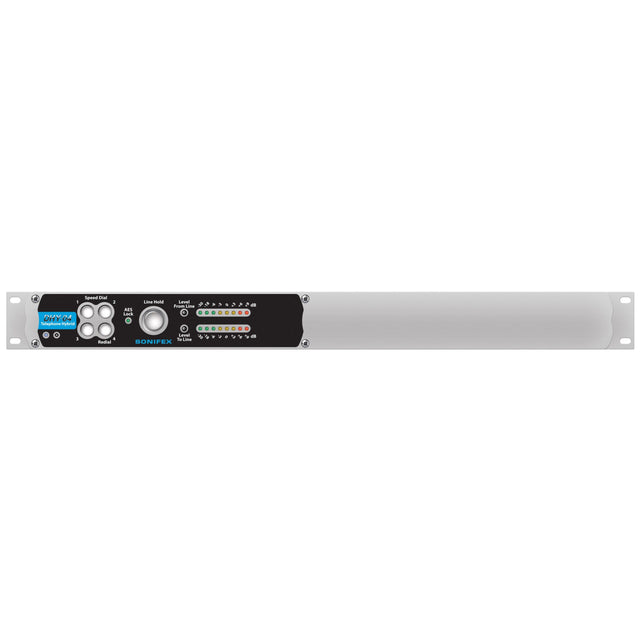

The DHY-04S 1U rackmount telephone hybrid is an enhanced redesign of the DHY-03 , the best performing telephone hybrid in the world. It now has auto-sensing combined analogue and AES/EBU inputs and outputs, front panel speed dial buttons, together with an Ethernet interface to allow web browser access to the configuration and internal settings. All whilst still retaining stunning line balance rejection figures. For the best sounding audio calls you’re likely to hear, you should specify the DHY-04.

Key Features

• Auto-sensing combined analogue or AES/EBU XLR input
• AES/EBU sample rates up to 24 bit/96kHz accepted
• Configurable analogue or AES/EBU XLR output
• Ethernet port for remote configuration via web browser GUI
• Remote dialing and line hold control via Ethernet
• Ethernet network interface can generate SNMP Traps for SNMP management systems
• DTMF dial tone recognition for reporter remote access - a journalist can dial into the unit which can recognize a pre-programmed
• DTMF numeric password to automatically connect the journalist on-air
• Four front panel speed-dial buttons for dialing internally preset phone numbers
• Front panel Redial button for redialing the last number

Technical Specifications

Analogue Audio I/O
Input Impedance - Line Mode (Clean Feed)
10kOHMS balanced 0dB
Input Impedance Conferencing
10kOHMS balanced 0dB
Input Impedance - Microphone Mode
2kOHMS balanced
Input Level Gain Range
+6dB, 0dB, and -6dB adjusted by 3-position front panel switch, +10dB jumper
Microphone Level Gain Preset
From 65dB to 35dB
Maximum Input Levels
Line +26dBu, mic -24dBu
Clean Feed Limiting Input
-4dBu for CTR21 setting, other values available *
Output Impedance - Line Out
50OHMS balanced floating 0dBu
Output Impedance - Conference/Record
50OHMS balanced floating 0dBu
Output Level Gain Range
+6db, 0dB, and -6dB adjusted by 3-position front panel switch
Digital Audio I/O
Input Impedance
110OHMS -20% balanced
Output Impedance
110OHMS -20% balanced
Sample Frequency Range
30 - 100kHz (i.e. including 32kHz, 44.1kHz, 48kHz, 64kHz, 88.2kHz & 96kHz)
Signal Level
2V/7V peak to peak min/max
Analogue Input Level for Full Scale Digits
+18dBU
Telephone Line
Bandwidth to Telephone Line
250Hz - 4kHz, -3dB ref 1kHz
Telephone Line Impedance
600OHMS, 900OHMS plus 14 other complex impedance circuits *
Rejection Ratio
80-88dB on complex waveforms, reference peak level of 0dBFS
Ring Detector Sensitivity
Off, 2, 4 or 6 rings
Connections
Mic/Line/AES-EBU Input
XLR 3 pin female, with push-button mic/line selection
Line/AES-EBU Output
XLR 3 pin male
Telephone Line
RJ11 6/4 socket
Telephone Handset/Instrument
RJ11 6/4 socket
Conferencing or Record Audio
RJ45 socket
Remotes
9-way D-type socket
Ethernet
RJ45 socket
RS232 Serial
9-way D-type socket
Power
IEC mains (CEE22)
