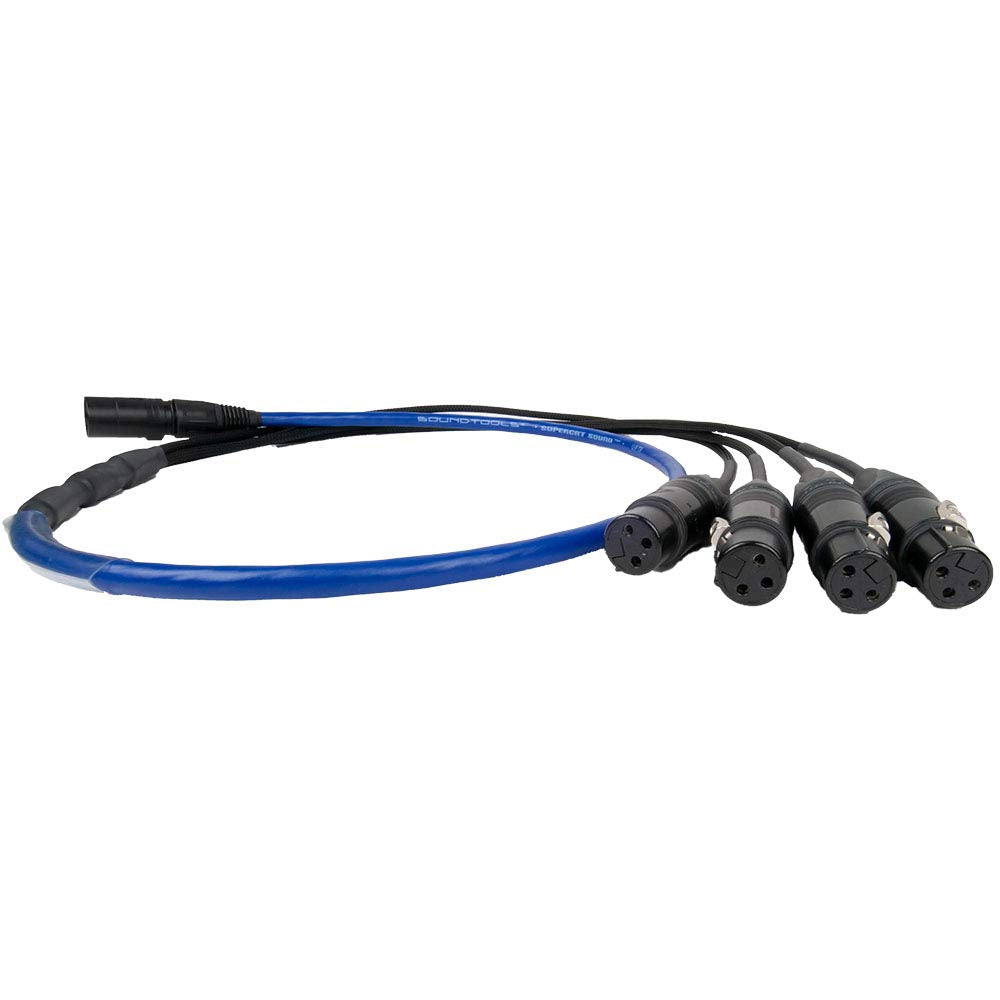

SoundTools SuperCAT Tails Male etherCON Breakout to 4 Female XLR

SoundTools SuperCAT Tails Male etherCON Breakout to 4 Female XLR

SoundTools SuperCAT Tails Male etherCON Breakout to 4 Female XLR

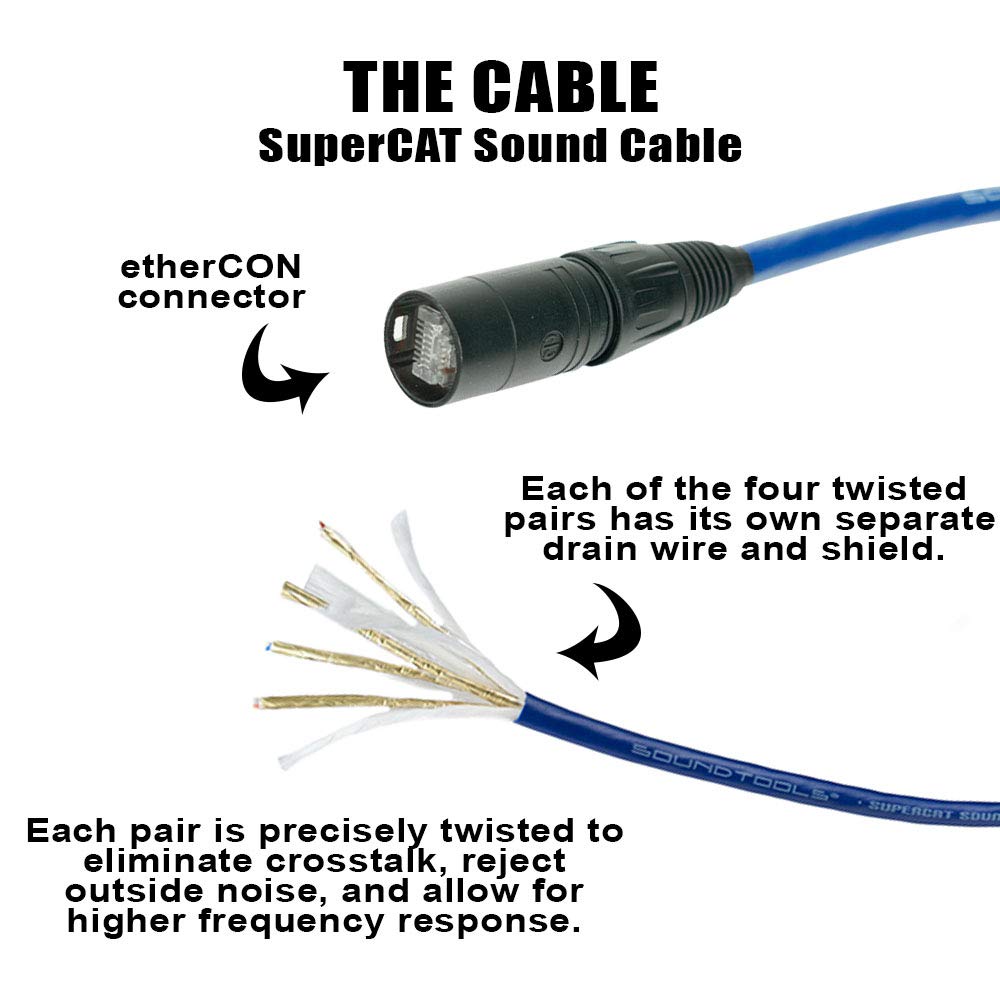

The SoundTools SuperCAT Sound cable allows the SuperCAT Tails to achieve a new level of simplicity at a lower cost while enhancing reliability and reducing weight. The SuperCAT Sound Tails implement a male cable mount etherCON on one end, terminating to four XLR 3-pin, DMX 5-pin, or quarter-inch connectors on the other end. The SuperCAT Tails can be directly plugged into SoundTools CAT Tails forming a disconnectable four channel male-to-female cable or to create four channel adaptors of differing genders and connector types. The SuperCAT Tails combine key aspects of both the SoundTools CAT Tails and SuperCAT Sound cable to create a high-quality, durable and cost-effective product specifically aimed to excel in high-impact, touring environments. The SuperCAT Sound cable is designed with sound in mind; each of the four twisted pairs has its own separate drain wire and shield, and each pair is precisely twisted to eliminate crosstalk, reject outside noise, and allow for higher frequency response.

Key Features

• One black shielded Neutrik etherCON RJ45 connector and four black Neutrik XLR connectors, laser engraved 1-4
• Connects to Cat5e cables with Neutrik etherCON adapter (NE8FF)
• Made with SuperCAT Sound cable which excels in durability and reliability
• 52” in total length with a 44” span

Technical Specifications

DIMENSIONS
Unit
Total Length
52”
Span Length
44”
Weight
9.6 oz (.272 KG)
In Package
Height x Width x Depth
9 in (228.6mm) x 10.5 in (266.7mm) x
1 in (25.4mm)
Weight
13 oz (.368 KG)
SYSTEM REQUIREMENTS
*Requires shielded cable for full functionality
Analog audio including phantom power
DMX
AES3
Intercom
Available in Male or Female
Available with RJ45 or etherCON connection
Complatible with all SoundTools Analog Audio Over CAT5 products
Connects to CAT5/6/7 cables with Neutrik etherCON adapter (NE8FF)
PACKAGE CONTENTS
SuperCAT Sound Tails breakout snake
SoundTools Canvas bag
User documentation
