SurgeX SX-DC-8-12-120 AC/DC MultiStage Surge Suppression

SurgeX SX-DC-8-12-120 AC/DC MultiStage Surge Suppression

Designed to fulfill the unique needs of today's small meeting/huddle space environments and digital signage/video applications, the SurgeX Squid packs an array of power quality tentacles in a compact design. It ushers in a new category for power quality that packs tremendous options in a compact design to offer completely contained, boxed network control and AC/DC protection in a single application. The Squid combines both AC and DC outlets with advanced surge protection, power conditioning, power management and analytical software in an extremely compact form factor. Ensuring you'll no longer have to install a product for AC, another for DC, and yet another to monitor and control the power environment. It provides everything you'll need in an individual package for use worldwide, and allows for monitoring and control from one Network Operations Center. Create a proper and intelligent power foundation, that entails the flexibility of a squid, to help businesses meet quickly and easily without disruption.

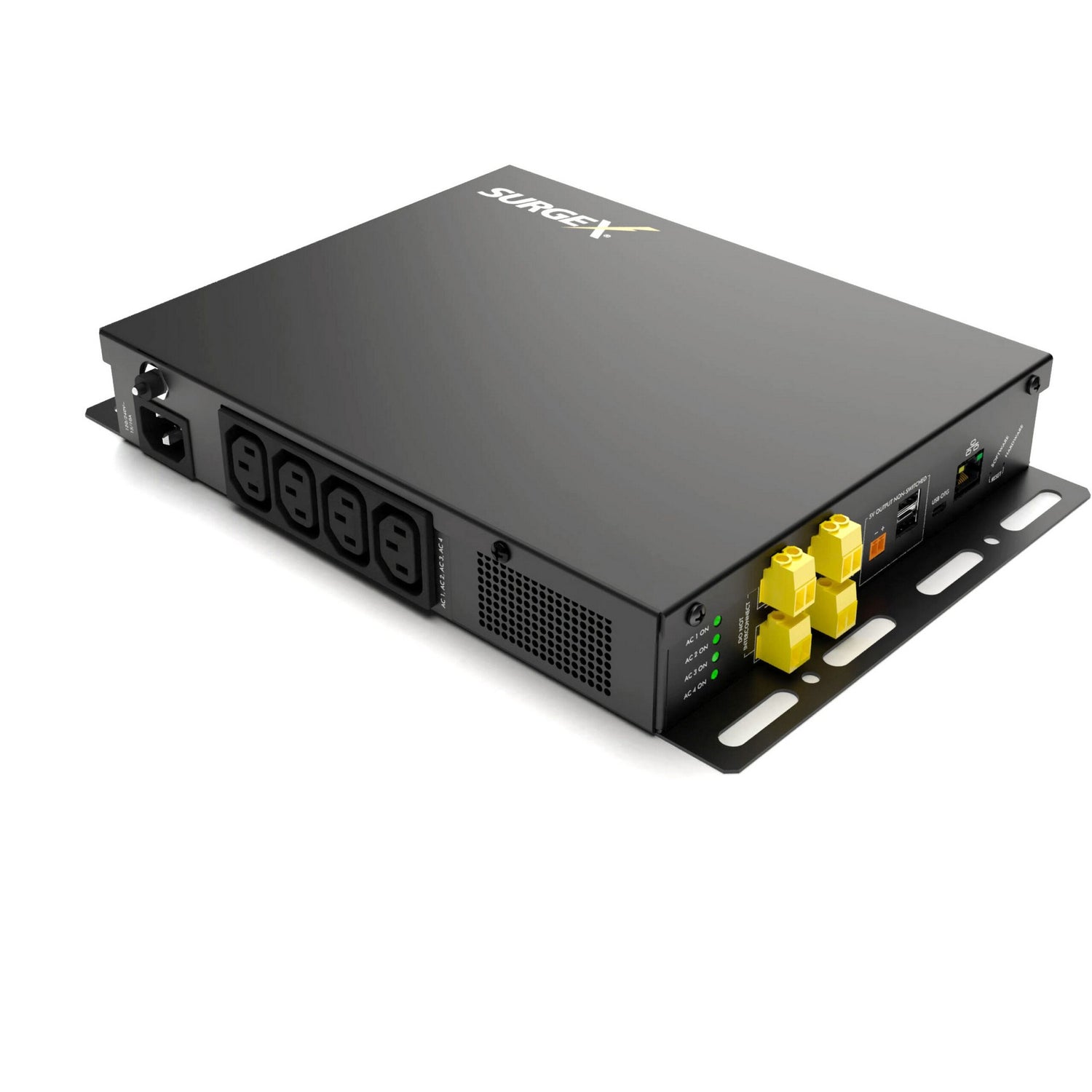

The SurgeX SX-DC-8-12-120 shall be a universally mountable unit in a magnetic shielding steel enclosure. It'shall operate at 120- or 240-volts AC and have a detachable line cord. There shall be 4 grounded AC receptacles on the input face, with all 4 individually switched. There shall be 2 individually switched DC output banks with 2 detachable connectors per bank. There shall be an unswitched 5 volts DC output on a detachable connector, as well as two USB A ports for power. There shall also be a USB OTG port for out of band control and configuration. Overall dimensions shall be 1.75” D x 8.25” W x 10” L. Weight shall be no more than 5.5 pounds. The unIt'shall have remote turn-on capabilities enabled by wired Ethernet. Remote turn-on, turn-off, and reboot shall be activated by software. It'shall have remote control, sequencing, scheduling, measurement, AutoPing, and adjustable trigger functions, and shall support wired Ethernet HTTP, HTTPS, SNMPv1, SNMPv3, NTP, mDNS, 802.1x, and LDAP protocols. The unIt'shall measure voltage, current, power, frequency, energy, and temperature, and shall record events and measurements in its internal memory. The SX-DC-8-XXXX shall have a load rating of 15 amps at 120 volts, a load rating of 10 amps at 240 volts, a self-test circuit with software enabled indicator, and provide EMI/RFI filtering, and catastrophic over/under-voltage shutdown. It'shall wIt'stand surge pulse voltages up to 6000 volts.

Key Features

• Universal 120V-240V AC input with IEC connectors
• 4 controlled and monitored AC receptacles
• 3 DC banks, 2 controllable
• Measures electrical parameters, including Voltage, Current, Power, Frequency, Power Factor, Crest Factor
• Time stamped power quality events
• Internal storage of 30 days’ worth of Max/Min/Avg electrical parameters
• Wired Ethernet for Web server (HTTP/HTTPS), 802.1x authentication
• TLS, SSL, SNMP V3, single sign-on
• 2, 5V USB ports for charging
• Compact size fits along, behind, or near equipment

Technical Specifications

AC Load Rating Max Full Load
12A @ 120V
DC Load Rating Max Full Load
DC1 Output Rating
5A@12V
DC2 Output Rating
5A@12V
Combined DC1 & DC2 Output Rating
10A@12V
5V Output Rating
3A@5V
Power Requirement (no load)
15 Watts
DC Efficiency
90% Typical
Audible Noise at 1m
35 dBA Typical
Heat Generation
185 BTU/h Max
EMI/RFI Filter
Normal Mode (50Ω Load)
> 30 dB 80 kHz - 50 MHz
Common Mode (50Ω Load)
> 20 dB 160 kHz - 27.5 MHz / > 30 dB 310 kHz - 17.6 MHz
Under-Voltage Auto Shutdown
Adjustable from 0V to 300V, or disabled.
Over-Voltage Auto Shutdown
Adjustable from 125V to 300V, or disabled.
Over-Current Auto Shutdown
Adjustable from 0.1A to 20A, or disabled.
Measurement Accuracy
Voltage
± 2% Typical Product Accuracy
Current
± 2% Typical Product Accuracy
Power
± 2% Typical Product Accuracy
Energy
± 2% Typical Product Accuracy
Network Port
10/100 Ethernet connection on Female RJ-45, Auto Negotiating with 10/100 network connections with Link and Activity LEDs
USB RNDIS Device on micro-AB
Dimensions (DxLxH)
1.75 x 10 x 8.25”
Weight
5Lbs
Temperature Range 100% Load
41 Degrees to 102 Degrees F (5 Degrees to 39 Degrees C)
Humidity Range
0 to 95% R.H. Non-condensing
Agency Listings
UL/CUL/CB 62368
