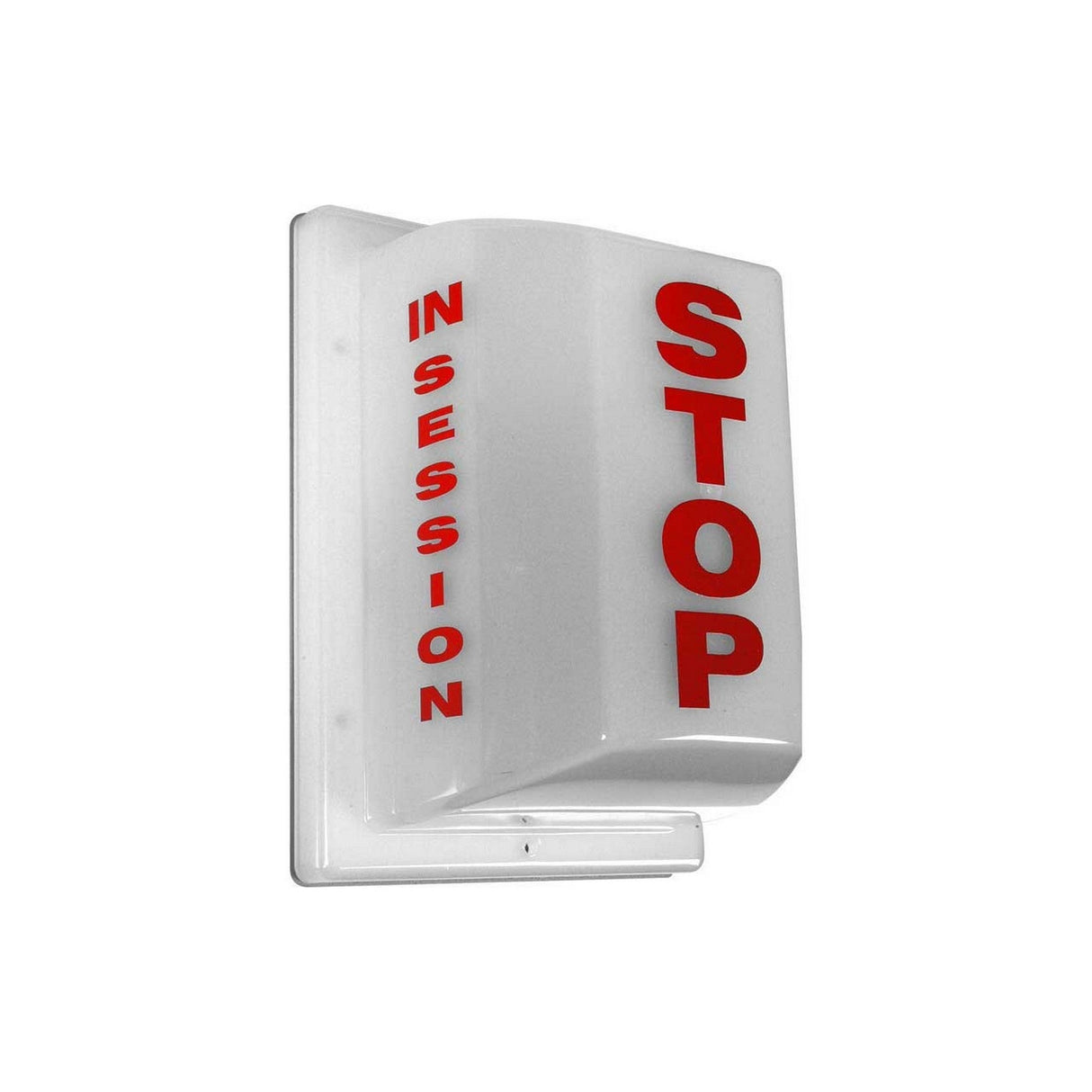

TecNec FSL-3 | Triple Side Non Flashing Warning Light, Stop: In Session

TecNec FSL-3 Triple Side Non Flashing Warning Light, Stop: In Session

Large, bright red light with white 3-sided shell. Ultra high impact housing with easy mounting to any surface. AC operated and suitable for outdoor or indoor use.

Recommended Installation: Hardwire to 110v Junction Box

Key Features

• Ceiling or wall mount - 9.25"H x 6.375"W x 4.75"D Overall
• 16-gauge cold rolled steel baseplate
• One-piece, UV-stabilized polycarbonate lens
• Peace of Mind Guarantee against breakage
• 120V 75W Incandescent wall fixture
• Medium base socket (standard incandescent)

Technical Specifications

Option
"Stop: In Session"
LENS/HOUSING
One-piece wraparound lens/housing (UV-stabilized, high impact, virgin injection molded polycarbonate). High efficiency Pearlescent lens. Nominal thickness .125".

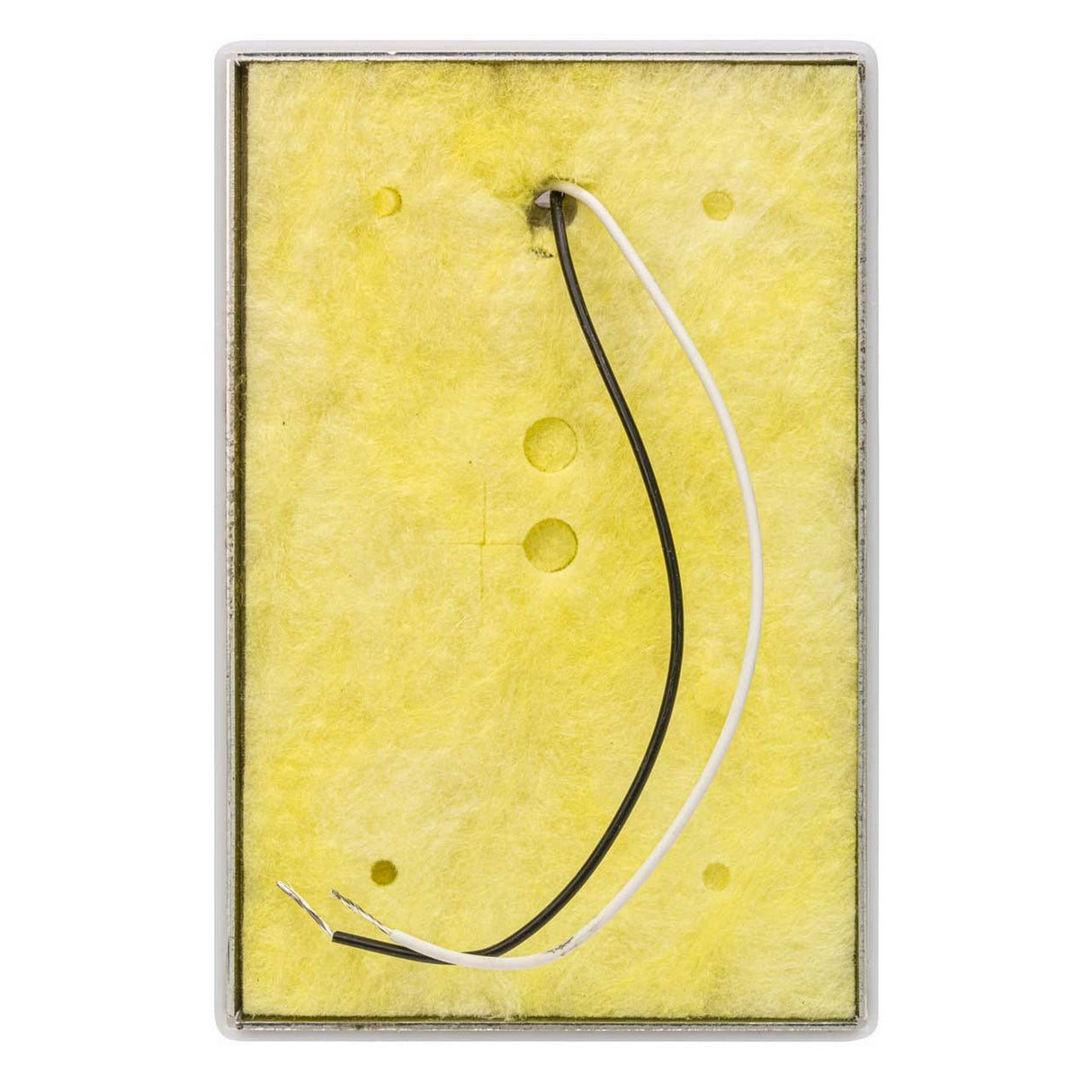

BASEPLATE
16-gauge CRS. Baseplate provided with four-point mounting holes, one wireway hole - see Cross Section/Details. White TGIC polyester powder coat - 5-stage pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. See Options or Accessories for marine grade aluminum baseplate (AL), convenience outlet adapter (CO) and die-cast aluminum surface conduit adapter (SA).
GASKET
Die-cut closed cell neoprene gasket seals lens/housing to mounting surface.
HARDWARE
Two stainless steel Torx with center pin fasteners secure lens/housing to baseplate.
ELECTRICAL
Medium base shock absorbing lamp socket .
INSTALLATION
Fixture must be installed lamp base up. Standard four-point mounting required for Peace of Mind Guarantee.
LISTINGS
UL and CUL listed for Wet Location.
Mount Plate Dimensions
8.75"H x 5.75"W
Overall Light Dimensions
9.25"H x 6.375"W x 4.75"D
