TecNec JackReel XL1 High Capacity Heavy Duty Broadcast Fiber Optic Cable Reel

The JackReel-XL1 is a fantastic value for a super high capacity steel cable reel that is specially designed for multi-channel tactical fiber optic cables, SMPTE fiber optic camera cables, audio snake cables and other cable assemblies.

The JackReel-XL1 features rugged steel construction with round tubing protective frame, non-reflective black matte finish, adjustable cam-lock drag brake for fast cable rollout and storage and large heavy duty locking caster wheels.

The main cable drum is specially engineered to protect the bend radius of fiber optic cables. A special drum divider plate protects connectors and fan-outs separating them from the main cable run during storage and rollout.

Key Features

• Split Drum for Safe & Easy Connector Pigtail Storage
• Durable Non-reflective Black Paint Finish
• Heavy Duty Tubular Steel Construction
• 3-Position Brake Lock: Free Spool, Soft Brake, Full Lock

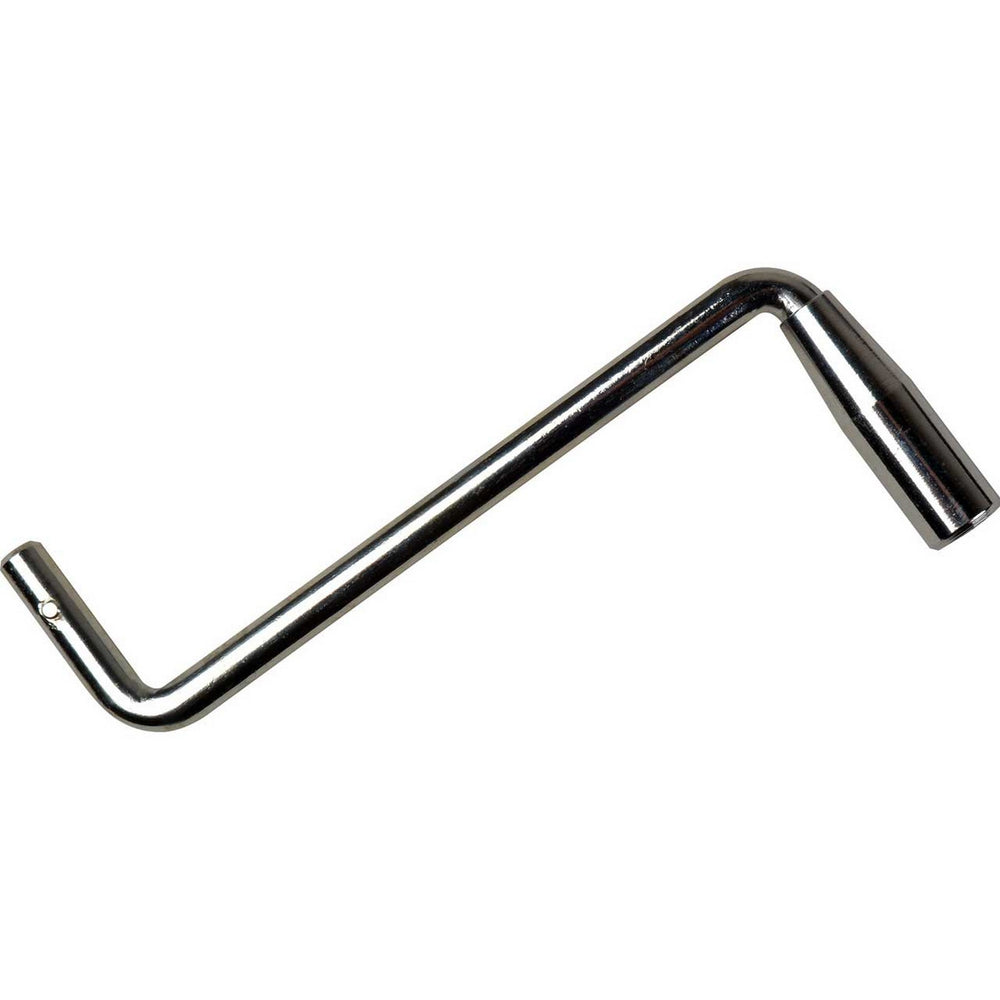

• Rugged Winding Handle with Storage
• Locking Casters

Technical Specifications

Height: 21.187"H
Height (less casters): 17.875"
Width: 21.75"
Depth: 17.875"
Center Hub Overall Width: 17.625"
Center Hub Main Hub Width: 14" Outside (13.375" Inside)
Center Hub Divider Width: 4" (3.312" Inside)
Capacity for 5mm O.D. Cable: 4500 Feet
Capacity for 7mm O.D. Cable: 2500 Feet
Capacity for 9.5mm O.D. Cable: 1100 Feet
