Tentacle Sync Timebar Multipurpose Timecode Display
Description
Description
The Tentacle Sync Timebar Multipurpose Timecode Display stands out as a versatile timecode display unit that combines functionality with a high-contrast screen. Utilizing OLED technology, it boasts a distinct alphanumeric layout that guarantees exceptional readability, suitable for studio and on-set use. Acting as a dependable timecode generator or display tool for directors and teams, the TIMEBAR offers reliability and convenience.
For presenters and content creators, the TIMEBAR can function as a timer or stopwatch, enhancing its utility. Moreover, it can display text messages via the Setup App, making it a versatile tool in the realm of timecode displays.
The OLED screen not only delivers sharp contrast but also ensures minimal energy consumption, enabling the TIMEBAR to last the entire day. To promote sustainability and longevity, both the battery and OLED display are easily replaceable and are available through the official shop or authorized dealers.
Integrated seamlessly into the Tentacle workflow, the Tentacle TIMEBAR allows for effortless operation through the familiar Setup App using Bluetooth®. This streamlined approach guarantees a user-friendly and efficient experience across various production settings.
Key Features
- OLED Technology with a Wide Viewing Angle, ensuring high contrast
- Compact and Lightweight design for easy portability
- Alphanumeric Display Design that stands out from the rest
- Impressive Battery Runtime of up to 24 hours
- Bluetooth® connectivity allows for seamless control, synchronization, and operation of all devices
- Equipped with a Timecode Generator featuring TC In & Out functionality
- Includes Timer & Stopwatch Functionality for added convenience
- Text Display feature for clear and easy-to-read information
- Comes with a Tentacle Sync Studio Software License for macOS
- Backed by a Limited Two Year Warranty for peace of mind
- Proudly Designed and Manufactured in Germany, ensuring top-notch quality.
Technical Specifications
Connectivity
3.5 mm Jack: Timecode In/Out
USB Connection: USB-C (USB 2.0)
USB Operating Modes: Charging, Firmware Update
Control & Sync
Bluetooth®: 5.2 Low Energy
Remote Control: Tentacle Setup App (iOS/Android)
Synchronization: Via Bluetooth® (Tentacle Setup App)
Jam-Sync via Cable
Timecode In/Out: LTC via 3.5 mm Jack
Drift: High Precision TCXO / Accuracy less than 1 frame drift in 24 hrs (–30°C to +85°C)
Frame Rates: SMPTE 12M / 23.98, 24, 25 (50), 29.97 (59.94), 29.97DF, 30 (60)
Power Source
Built-in rechargeable Lithium Polymer Battery
Battery Capacity
2200 mAh
Battery Operation Time
6 hrs (highest brightness) to 80 hrs (lowest brightness)
Battery Charging Time
Standard Charge: 4-5 hrs
Fast Charging: 2 hrs
Mounting

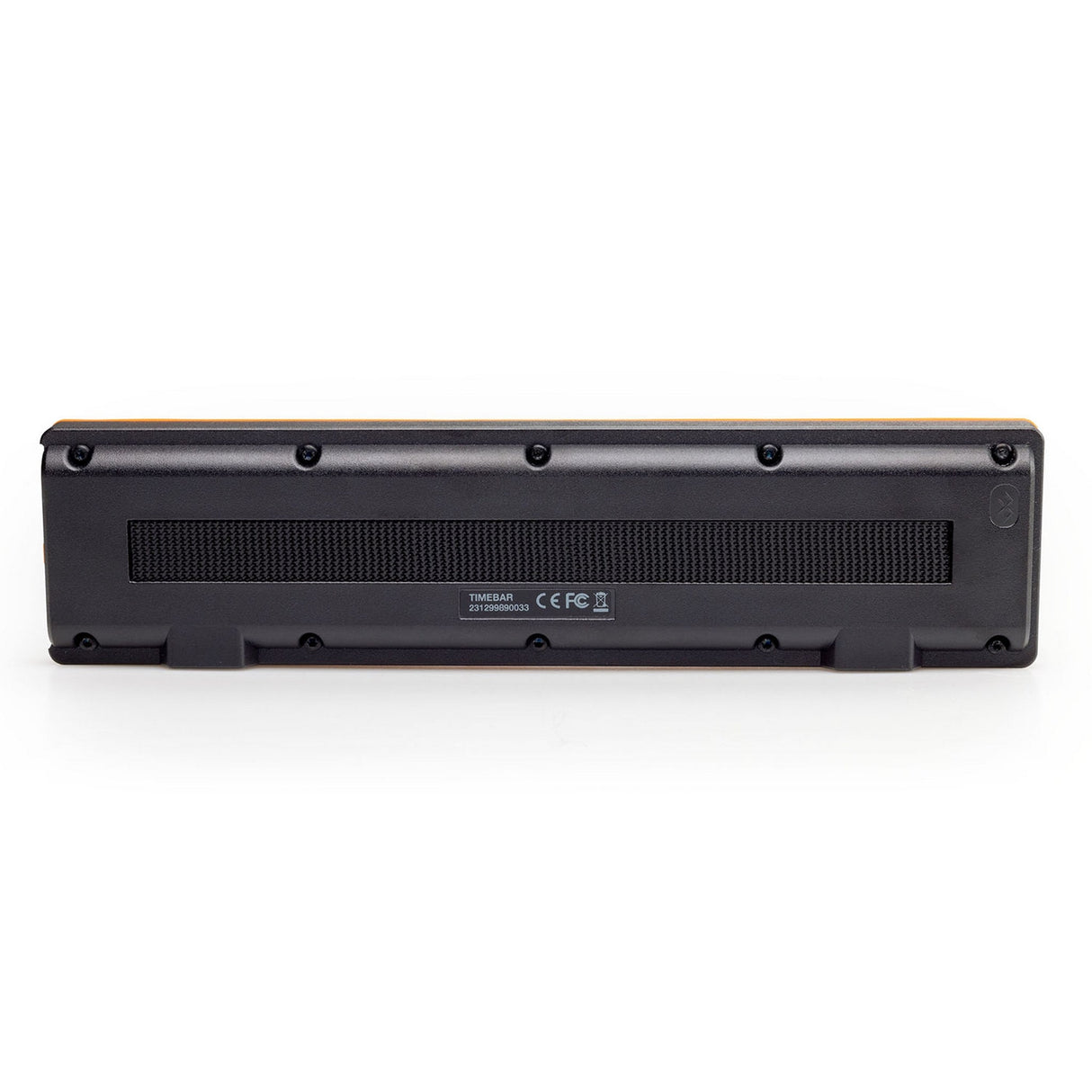

Integrated Hook Surface on the Back for Easy Mounting, other Mounting Options available separately
Weight
222 g / 7.83 oz
Dimensions
211 × 54 × 19 mm / 8.3 × 2.13 × 0.75 in
Included
1 × TIMEBAR – Multipurpose Timecode Display
1 x 3.5 mm to BNC Cable
1 × USB-A to USB-C Cable
1 × Zipper Bag Long
1 × Software License for Tentacle Sync Studio (macOS)
