TOA Electronics BA-260 60-Watt 2-Channel Power Amplifier
Description
Description

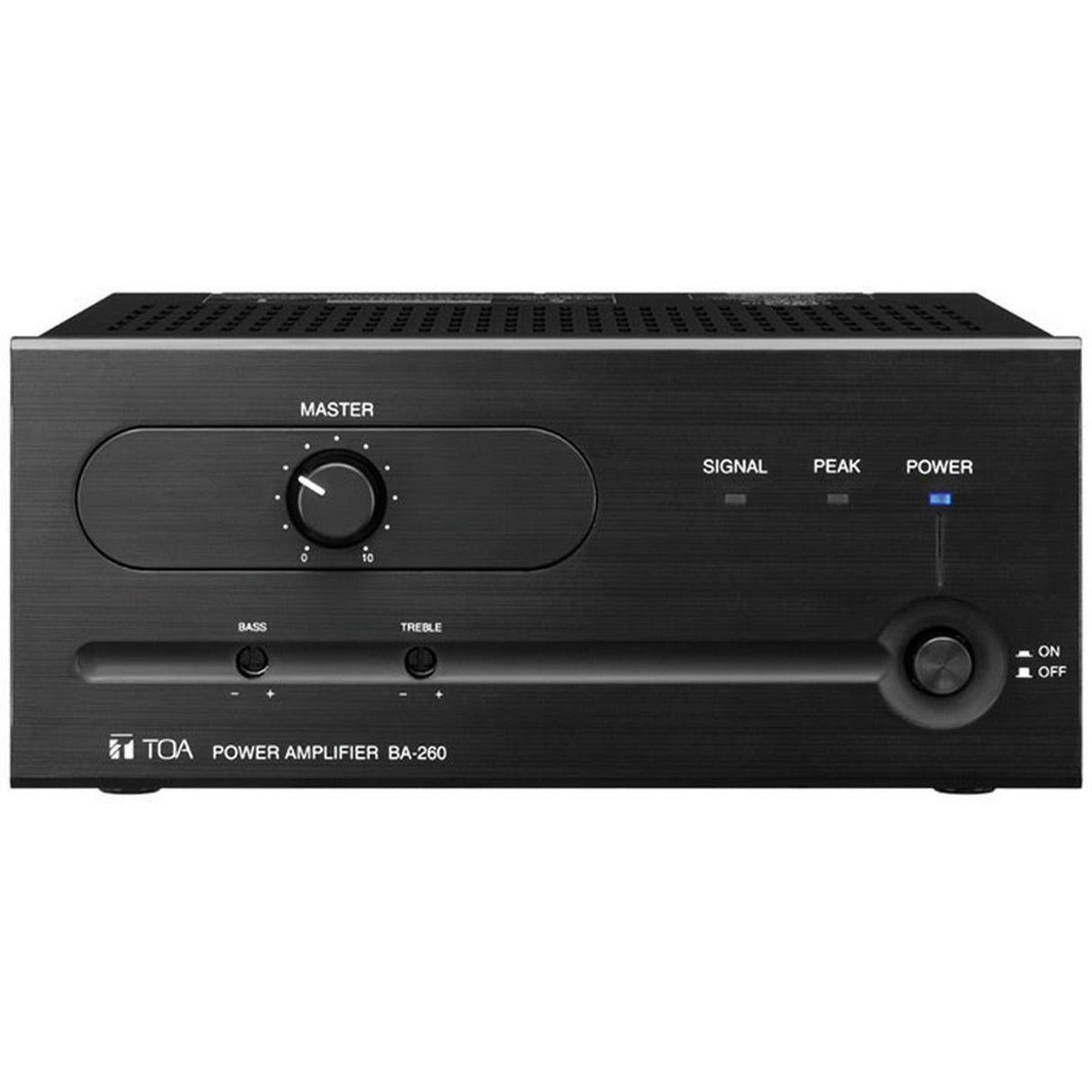

TOA Electronics BA-260 60-Watt 2-Channel Power Amplifier
The BA-260 is a 60 W power amplifier for background music and general announcement. It is suited for use in bars, retail stores, and banquet rooms. When used in conjunction with the optional mixer amplifier BG-220 (20 W) or BG-235 (35 W), 2-channel broadcast can be made.
THE TOA BA SERIES POWER AMPLIFIERS are ideal solutions for installations in restaurants, retail stores, lounges, classrooms and meeting rooms. Incorporating TOA's no-compromise technology, the new BA Series are designed to provide the high performance and audio quality with wide frequency response, low noise and distortion and stable output regulation.
The BA-200 Series Power Amplifiers is comprised of two models: BA-235 (35W) and BA-260 (60W). Both models offer a simple and cost-effective solution for adding powered zones to an existing system as well as powering speakers in applications that require a line input from a mix or playback source. Using the perfected amplifier technology and bullet-proof construction that has made TOA an industry standard, the BA-200 Series Power Amplifier is designed to make sound projects affordable, reliable and easy to install.
Technical Specifications
Power Source
120 V AC, 60 Hz
Rated Output
60 W
Power Consumption
130 W (rated output), 66 W (based on cULus standards)
Frequency Response
50 Hz - 20 kHz
Total Harmonic Distortion
0.5 % or less, at 1 kHz, rated output
Input
Line In: 0 dB*/+4 dB* (selectable), 10 kΩ, unbalanced, removable terminal block or RCA jack
Output
Speaker: 4 Ω, 25 V (10 Ω) and 70 V (83 Ω), balanced, removable terminal block
Bridge: parallel in Line in, removable terminal block
Output Regulation
2 dB or less, no load to full load (1 kHz)
S/N Ratio
80 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered)
Tone Control
Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Control
Master gain control, Bass tone control, Treble tone control,
Input Level selector switch, Remote Volume control, Power ON/OFF switch
Indicator
Power LED, Signal LED, Peak LED
Operating temperature
0 Degrees C to +35 Degrees C (32 Degrees F to 95 Degrees F)
Operating Humidity
35 % to 80 %RH (no condensation)
Finish
Panel: ABS resin, black
Case: Steel plate, black, paint
Dimensions
210 (W) x 94.3 (H) x 265 (D) mm (8.27” x 3.71” x10.43”)
Weight
4.6 kg (10.14 lb)
Accessory
Volume control cover: YA-920 ……1
Removable terminal plug (2 pins) ……3
Removable terminal plug (4 pins) ……1
Option
Rack mounting bracket: MB-25B-BK, MB-25B-J
