TOA Electronics BG-2120 120-Watt 5-Channel Mixer/Amplifier
Description
Description

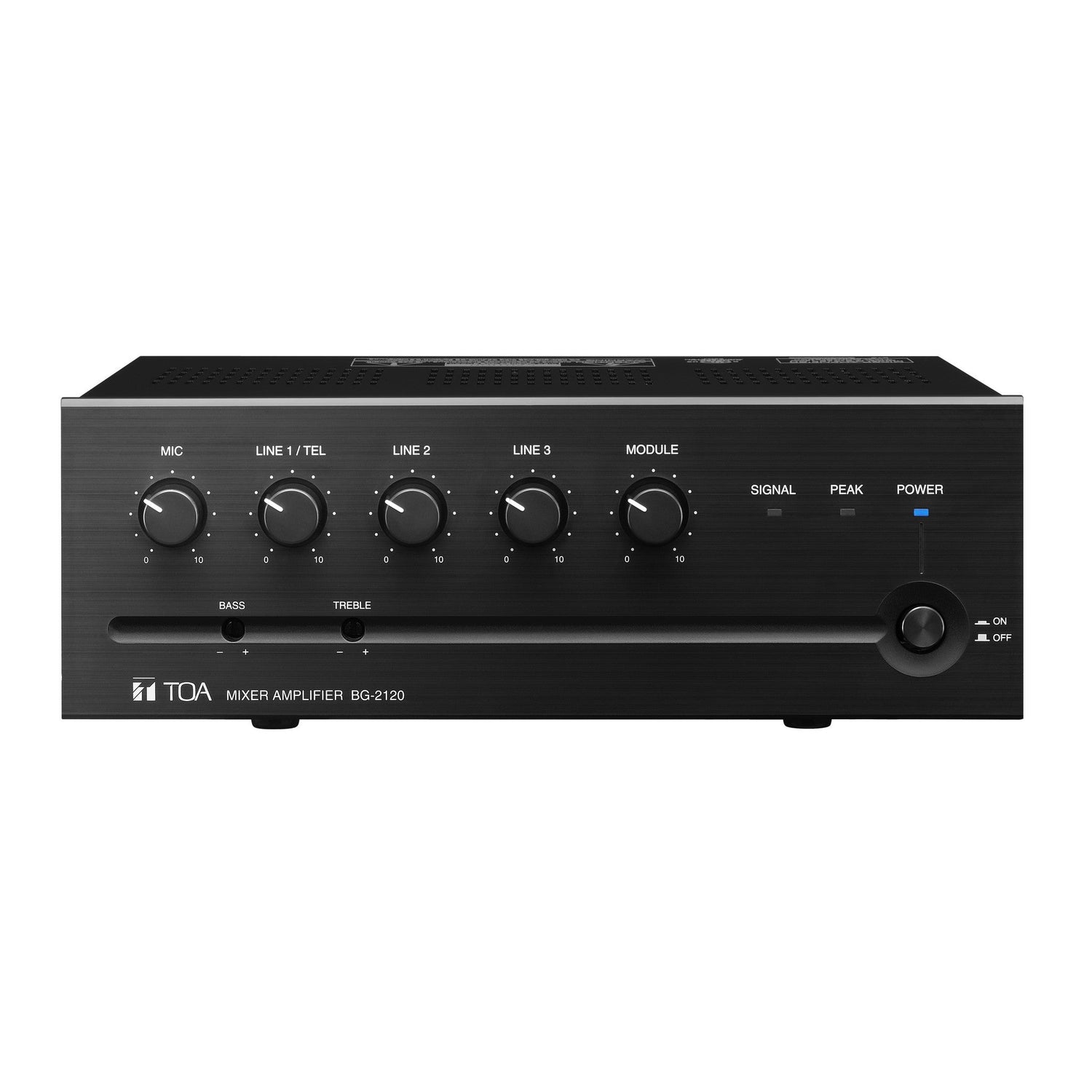

TOA Electronics BG-2120 120-Watt 5-Channel Mixer/Amplifier
The BG-2120 is 120W Mixer/Amplifier. It is a total redesign of the highly successful BG-1000 Series and not just for design’s sake. We spoke with our customers, who told us exactly what they wanted in a commercial background music & paging amplifier. We responded with a newly-engineered chassis, designed to not only look better, but perform better and most of all-install easier. Starting with removable euro-block connectors to make wiring a snap, we added assignable MOH/Second Zone source assignment and provided access to mute priority and other settings via rear panel DIP switches - no more “popping the top”. Lastly, we’ve upped the power to 35W on the lower end model. Of course, we kept all the good stuff-solid, reliable performance for which TOA has been renowned.
Technical Specifications
Power Source
120 V AC, 60 Hz
Rated Output
120 W
Power Consumption
265 W (rated output), 120 W (based on cULus standards)
Frequency Response
50 Hz - 20 kHz
Total Harmonic Distortion
0.5 % or less, at 1 kHz, rated output
Input
Mic
-60 dB*, 600 Ω, electronically balanced, removable terminal block
Line 1
-10 dB*/ TEL: -20 dB*
Line 1/TEL selectable, 10 kΩ, electronically balanced, removable terminal block
Line 2, 3
-10 dB*, 10 kΩ, unbalanced, removable terminal block and RCA jacks
Module
Output
Speaker
4 Ω, 25 V (5.2 Ω), 70 V (42 Ω), balanced, removable terminal block
MOH
0 dB*, 600 Ω, balanced, removable terminal block
Line
0 dB*, 600 Ω, unbalanced, removable terminal block
Output Regulation
2 dB or less, no load to full load (1 kHz)
Phantom Power
On/Off switch for Mic, +24 V DC
S/N Ratio
Mic
60 dB or more, Line 1/TEL, Line 2, 3, Module: 75 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered)
Muting
Manual mute/Automatic mute
Tone Control
Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Control
Mic gain control, Line 1/TEL gain control, Line 2 gain control, Line 3 gain control,
Module gain control, Bass tone control, Treble tone control, MOH out gain control,
Mute control (Manual mute), Remote volume control, Mute sense control,
Line 1/TEL selector switch, Phantom power switch (Mic),
Auto mute switch (Mic, Line 1/TEL, Module),
Mute receive switch (Mic, Line 1/TEL, Line 2, 3, Module),
MOH assign switch (Mic, Line 1/TEL, Line 2, 3, Module), Power ON/OFF switch
Indicator
Power LED, Signal level LED, Peak LED
Operating temperature
0 Degrees C to +40 Degrees C (32 Degrees F to 104 Degrees F)
Operating Humidity
35 % to 80 %RH (no condensation)
Finish
Panel
ABS resin, black
Case
Steel plate, black, paint
Dimensions
264 (W) x 94.3 (H) x 267.3 (D) mm (10.39” x 3.71” x 10.52”)
Weight
6 kg (13.23 lb)
Accessory
Volume control cover
YA-920 ……5, Removable terminal plug (2 pins) ……4
Removable terminal plug (3 pins) ……2, Removable terminal plug (4 pins) ……1
Removable terminal plug (5 pins) ……1
Option
Rack mounting bracket: MB-1000
