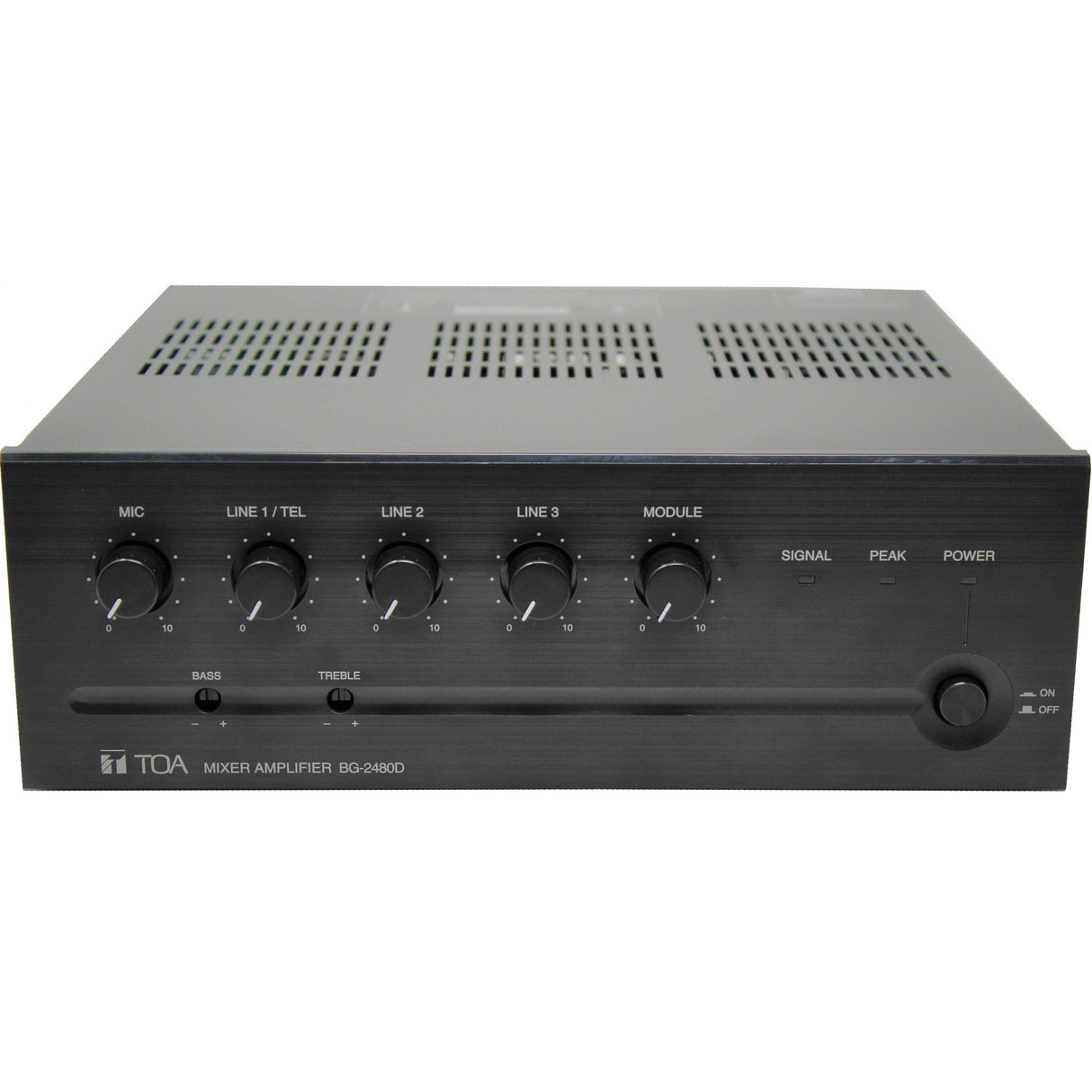

TOA Electronics BG-2480D 480-Watt High Power Mixer/Amplifier
Description
Description
TOA Electronics BG-2480D 480-Watt High Power Mixer/Amplifier
The BG-2480D (480W) is 5-input mixer amplifiers designed for background music distribution and general announcements in commercial spaces such as bars/restaurants, retail stores and hospitality facilities. They are each equipped with an MOH output that permits two independent zones when used in conjunction with an optional external power amplifier with a line level analog audio input. It uses D-class amplifiers which are lighter, more efficient and cooler running than conventional amplifier and have the same basic feature set as analog BG-2000 models, including: Dual balanced priority mic/line inputs, dual unbalanced line inputs, assignable 2nd zone/MOH output, front panel bass and treble controls, remote volume control port, assignable mute function and a 900 series input module slot (output modules not compatible).
Technical Specifications
Power Source
120 V AC, 60 Hz
Rated Output
480 W
Power Consumption
600 W (rated output), 110 W (based on UL 60065 standards)
Frequency Response
50 Hz - 20k Hz
Total Harmonic Distortion
0.8% or less, at 1 kHz, 1/3 rated output, LPF 20KHz
Input
Mic: -60dB*, 600Ω, electronically balanced, removable terminal block
Line 1: -10 dB*/TEL: -20 dB*
Line 1/TEL: selectable, 10kΩ, electronically balanced, removable terminal block
Line 2, 3: -10 dB*, 10 kΩ, unbalanced, removable terminal block or RCA jack
Module
Output
Speaker: Lo-z(4Ω), 70V(10.5Ω),100V(21Ω), balanced, removable terminal block
MOH: 0 dB*, 600 Ω, balanced, removable terminal block
Line: 0 dB*, 600 Ω, unbalanced, removable terminal block
Output Regulation
2 dB or less, no load to full load (1k Hz)
Phantom Power
On/Off switch for Mic, +24V DC
S/N Ratio
Mic: 60 dB or more, Line 1/TEL, Line 2, 3, Module: 80 dB or more (A-weighted, Tone Controls: Centered)
Tone Control
Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10k Hz
Muting
Manual mute/Automatic mute
Control
Mic gain control, Line 1/TEL gain control, Line 2 gain control, Line 3 gain control,
Module: gain control, Bass tone control, Treble tone control, MOH out gain control,
Mute control (Manual mute), Remote volume control, Mute sense control, Line
1/TEL selector switch, Phantom power switch (Mic), Auto mute switch (Mic,
Line 1/TEL, Module), Mute receive switch (Mic, Line 1/TEL, Line 2, 3, Module),
MOH assign switch (Mic, Line 1/TEL, Line 2, 3, Module), Power ON/OFF switch
Indicator
Power LED, Signal level LED, Peak LED
Operating Temperature
0 Degrees C to 40 Degrees C (32 Degrees F to 104 Degrees F)
Finish
Panel: ABS resin, black
Case: Steel plate, black, paint
Dimensions
264 (W) x 94.3 (H) x 267.3 (D) mm (10.39” x 3.71” x 10.52”)
Weight
3.5 kg (7.72 lb)
Accessory
Volume control cover: YA-920 x 5, Removable terminal plug (2 pins) x 4, Removable terminal plug (3 pins) x 2, Removable terminal plug (screw 2 pins) x 1, Removable terminal plug (5 pins) x 1
Option
Rack mounting brackets: MB-1000
