TOA Electronics M-800RC-AM Remote Audio Control Panel, White
Description
Description

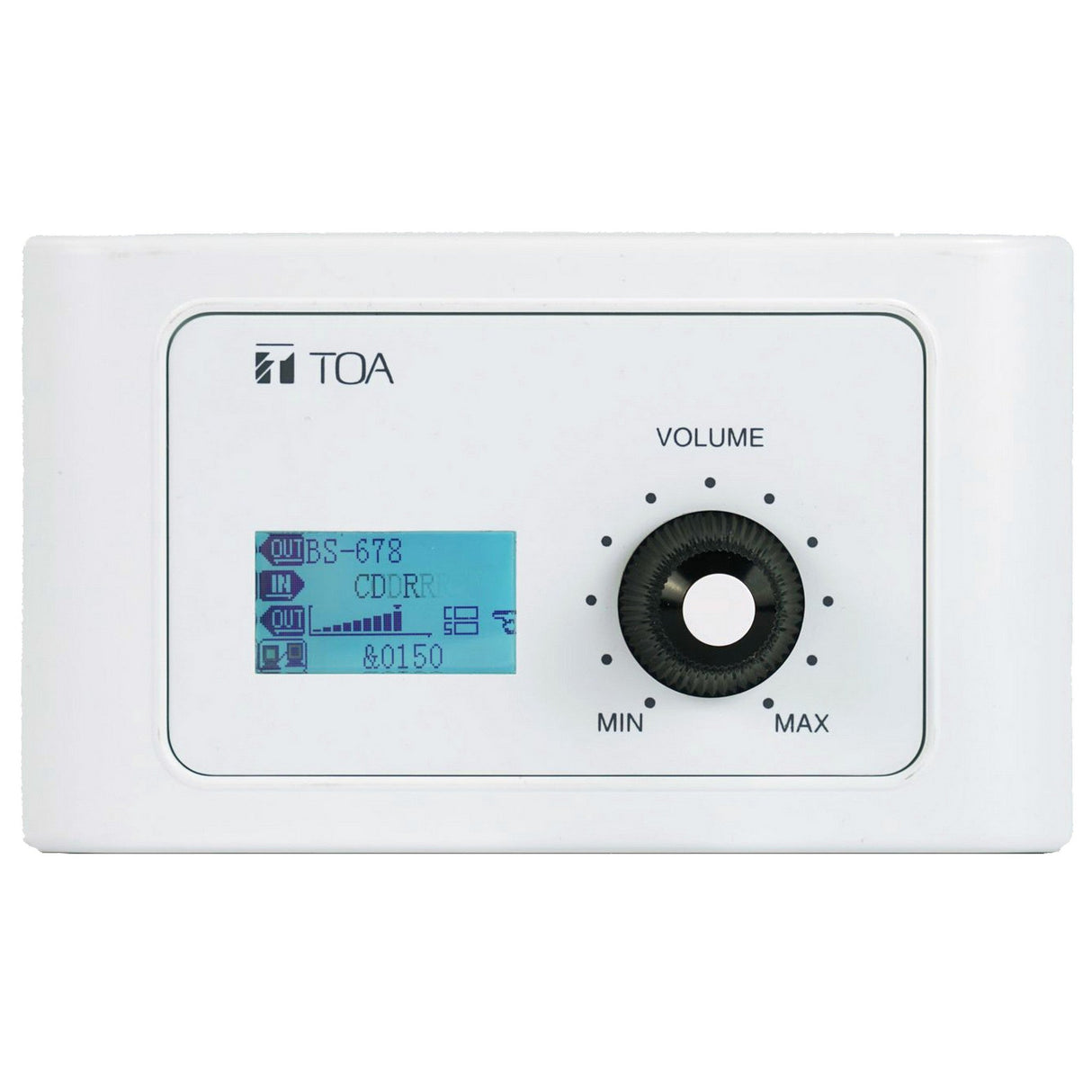

TOA Electronics M-800RC-AM Remote Audio Control Panel, White
Designed for exclusive use with the M-8080D, the M-800RC Remote Audio Control Panel has a volume/routing control knob.
Key Features
- 4.3” touch screen
- Input/Output signal routing
- Volume control
- Preset Control
- Direct power supply by network cable
- LCD screen with output level display
- RD port IN, for connection to M-8080D
- RD port LINK for daisy chain connection
- 100m CAT5e cable length
Technical Specifications
Power source
24 V DC (Powered by M-8080D or M-804EX or external)
Display
Touch LCD Screen
Displays device information: ID, Volume, communication status, system
Inputs
RD In
Transmits and receives AES3 digital audio plus control data
Connect to M-8080D, M-804EX o M-800RC, M-800RCT for daisy chain, RJ45 connector
Outputs
RD EXP
Transmits and receives control data
Connect to M-800RC or M-800RCT, RJ45 connector
Controls
Volume / Routing / Presets
Operating temperature
0 Degrees C to +40 Degrees C (32 Degrees F to 104 Degrees F)
Finish
Panel: Polycarbonate + ABS resin, white or black
Dimensions
150 W x 115 H x 28 D mm (5.9” W x 4.53” H x 1.1” D)
Weight
0.28 kg
