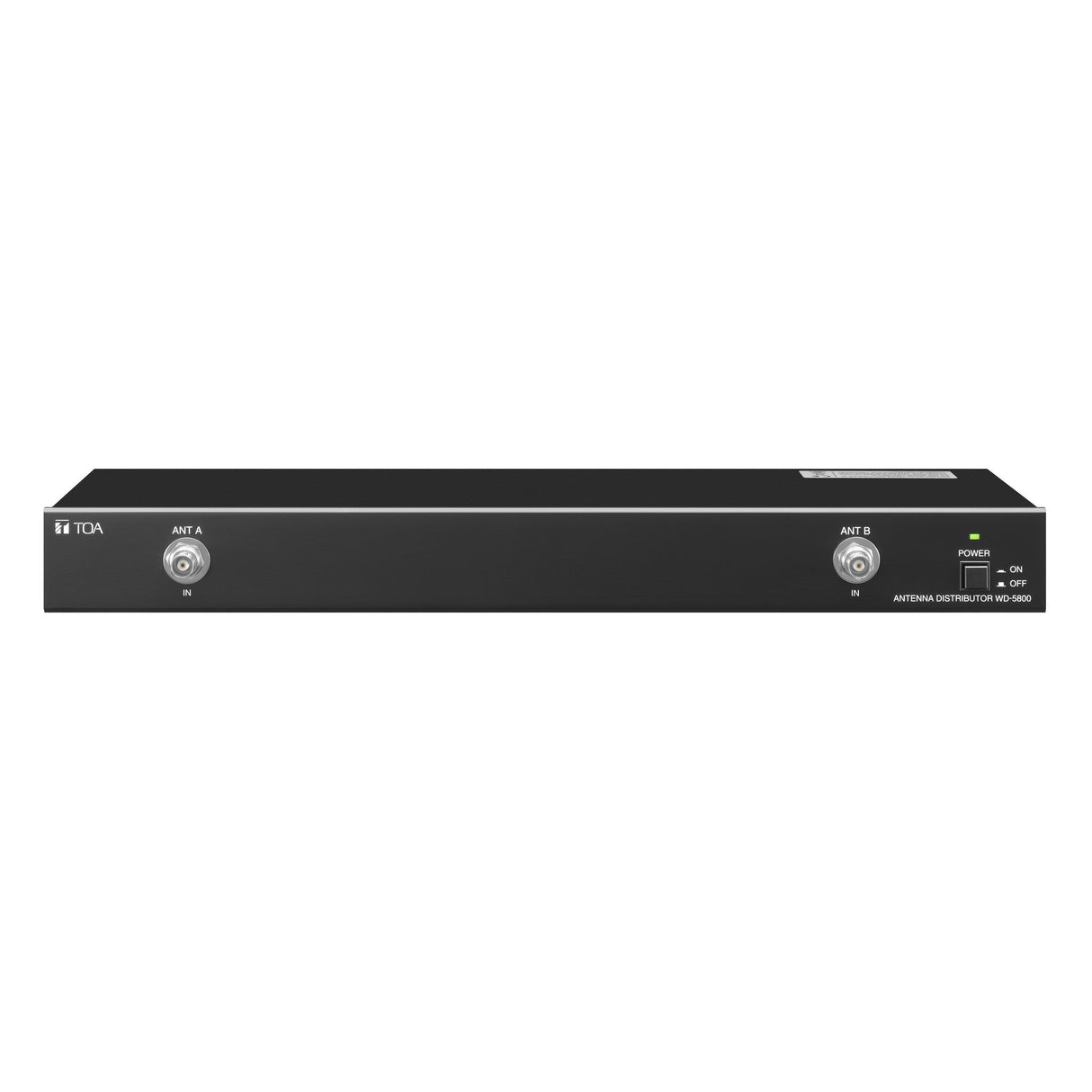

TOA Electronics WD-5800 VHF/UHF Wireless Antenna Distributor
The TOA Wireless antenna distributor WD-5800 is designed to be used in conjunction with VHF/UHF band system. It comes with two distribution channels, in which two input signals are mixed and distributed to four outputs. The WD-5800 also has four DC power distribution outputs.
Technical Specifications
Power Source
AC mains (supplied AC adapter must be used)
Power Consumption
25 W or less
Current Consumption
1.6 A (12 - 15 V DC)
Frequency Range
VHF/UHF
Antenna Input
2 inputs per distribution channel (front x 1, rear x 1), 75 Ω, BNC (phantom power for antenna)
Antenna Output
4 outputs per distribution channel, 75 Ω, BNC
DC Power Supply
4 outputs (each output: 12 V DC/250 mA)
(Output voltage of this unit depends on that of AC adapters.)
Indicator
Power lamp
Operating Temperature
-10 Degrees C to +50 Degrees C (14 Degrees F to 122 Degrees F)
Operating Humidity
30 % to 85 %RH (no condensation)
Finish
Panel: Aluminum, black, paint
Case: Steel, black, paint
Dimensions
420 (W) x 44 (H) x 214 (D) mm (16.54”x 1.73” x 8.43”)
Weight
2 kg (4.41 lb)
Accessory
AC adapter (*1) …1, Power cord (2 m (6.56 ft)) (*1) …1, DC cable …4, Rubber foot …4
Option
Rack mounting bracket: MB-15B
