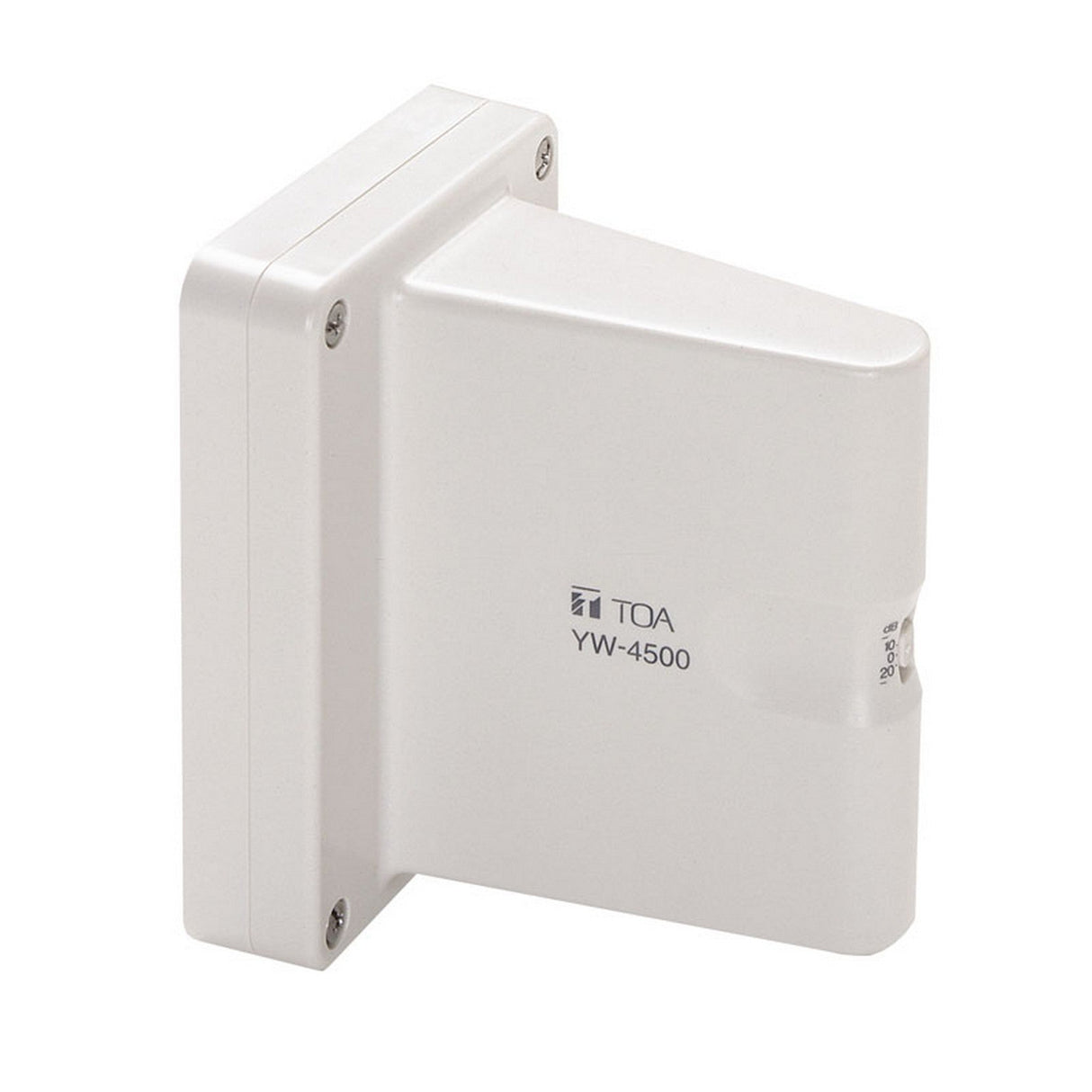

TOA Electronics YW-4500 Wallmount Remote Powered Antenna
The wireless antenna YW-4500 has been designed for UHF band wireless system. Cable loss can be compensated for by a built-in RF signal booster. The YW-4500 in a dipole antenna designed to be installed in doors. Use the coaxial cable with 75Ω impedance.
Key Features
- Compatible with frequency bands H01, RH1 and H2 only
Technical Specifications
Power Source
7 - 12 V DC (supplied from amplifier or tuner)
Current Consumption
15 mA or less
Receiving Frequency
550 - 932 MHz, UHF
Dipole ratio Relative Gain
8 dB or more (780 MHz)
V.S.W.R
3.0 or less
Output Impedance
75 Ω
Mounting Hole Pitch
83.5 mm (dimensions for wiring box)
Operating Temperature
-10 Degrees C to +50 Degrees C
Finish
AES resin, off-white
Dimensions
105 (W) x 140 (H) x 126 (D) mm (4.13” x 5.51” x 4.96”)
Weight
270 g (0.6 lbs)
Accessory
M3.5 screw for wiring box x2 Tapping screw (M4) for wooden wall x2,
RG-6/U or RG-11/U sleeve x1
