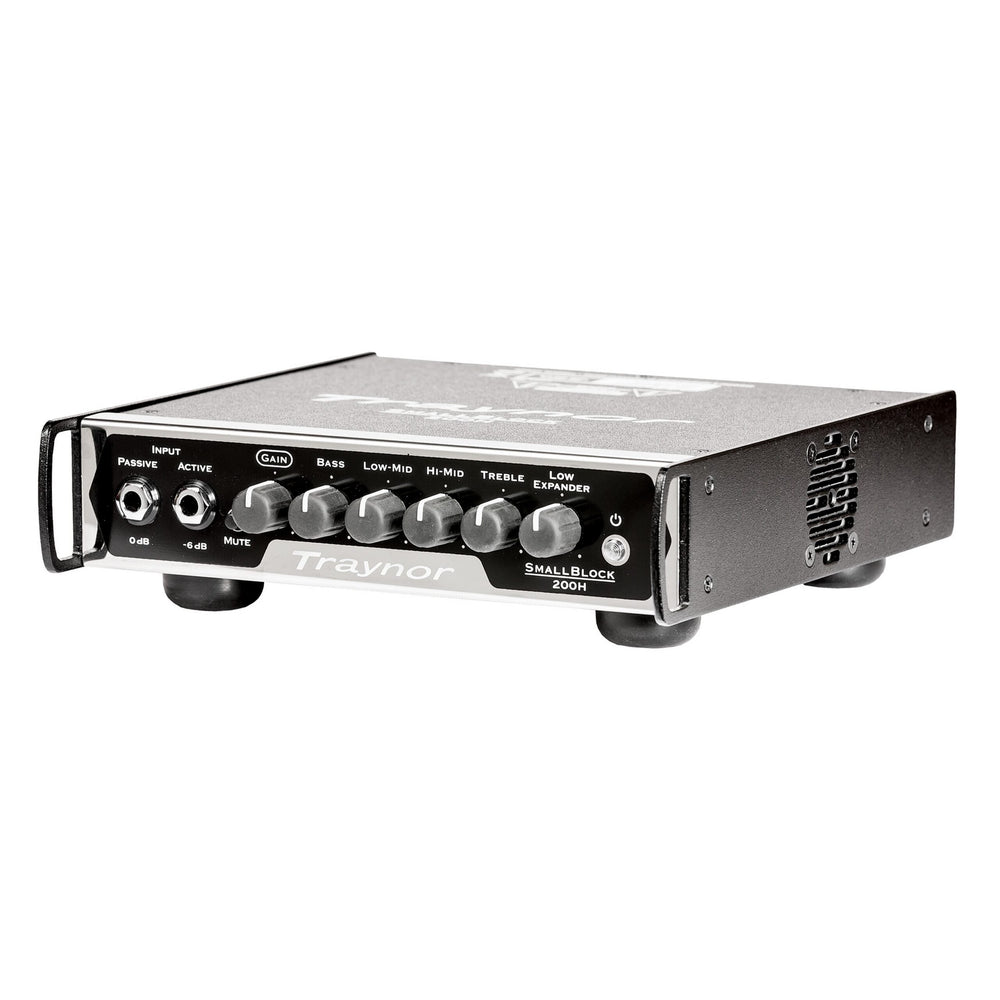

Traynor Small Block 200 Watt Ultra Compact Bass Amp Head

Traynor Small Block 200 Watt Ultra Compact Bass Amp Head

The ultra-compact and lightweight 200-watt Traynor Small Block SB200H head is built for the travelling musician. At less than 7 inches (20cm) wide and weighing under 1.5lbs (680g), the SB200H is small in stature, but big on tone. Loaded with essential features including Active and Passive level instrument inputs XLR DI output, a versatile four band EQ with an additional low frequency expander, the SB200H allows virtually any tone to be dialed in quickly and easily. Designed to withstand the rigors of the road, the SB200H is built using an all-metal chassis with front mounted handles to protect the knobs and jacks. A combination Speakon - -inch speaker output jack ensures the SB200H is included for maximum convenience. A -inch Auxiliary Input allows source material to be blended with bass making the SB200H a perfect rehearsal tool. A -inch headphone out is provided for private practice.

Key Features

• Ultra Compact and Lightweight Design
• Versatile 4-band EQ with Additional Low Frequency Expander
• Selectable Pre / Post XLR DI Output
• Convenient Speakon - -inch Combi-jack Speaker Output
• All-Metal Chassis
• Passive and Active Inputs
• Auxiliary Input & Headphone Output for Private Practice

Technical Specifications

Power @ min. impedance (Watts)
200 watts
Minimum Impedance (Ohms)
4
Burst Power - 2 cycle
250 watts
Inputs
Passive 0 dB, Active -6 dB
Controls
Gain, Bass, Low Mid, High Mid, Treble, Low Expander, Master Volume
Additional Inputs
-inch Aux Input
Line Out (type / configuration)
Balanced Pre/Post Line Out W/ Ground Lift Switch
Line Out Sensitivity (Vrms)
1 Vrms
LED Indicators
Blue - Power / Red - Protect/Mute
Protection
Clip, Thermal, Overcurrent
External speaker output / location
Speakon / -inch Combi-Jack
Other Features
Aux Input /Headphone Out /Mute / Tuner Out
Dimensions (DWH, inches)
7.5 x 8 x 1.75
Dimensions (DWH, cm)
19.1 x 20.35 x 4.5
Weight (lbs / kg
2.4lbs/1.08kg
