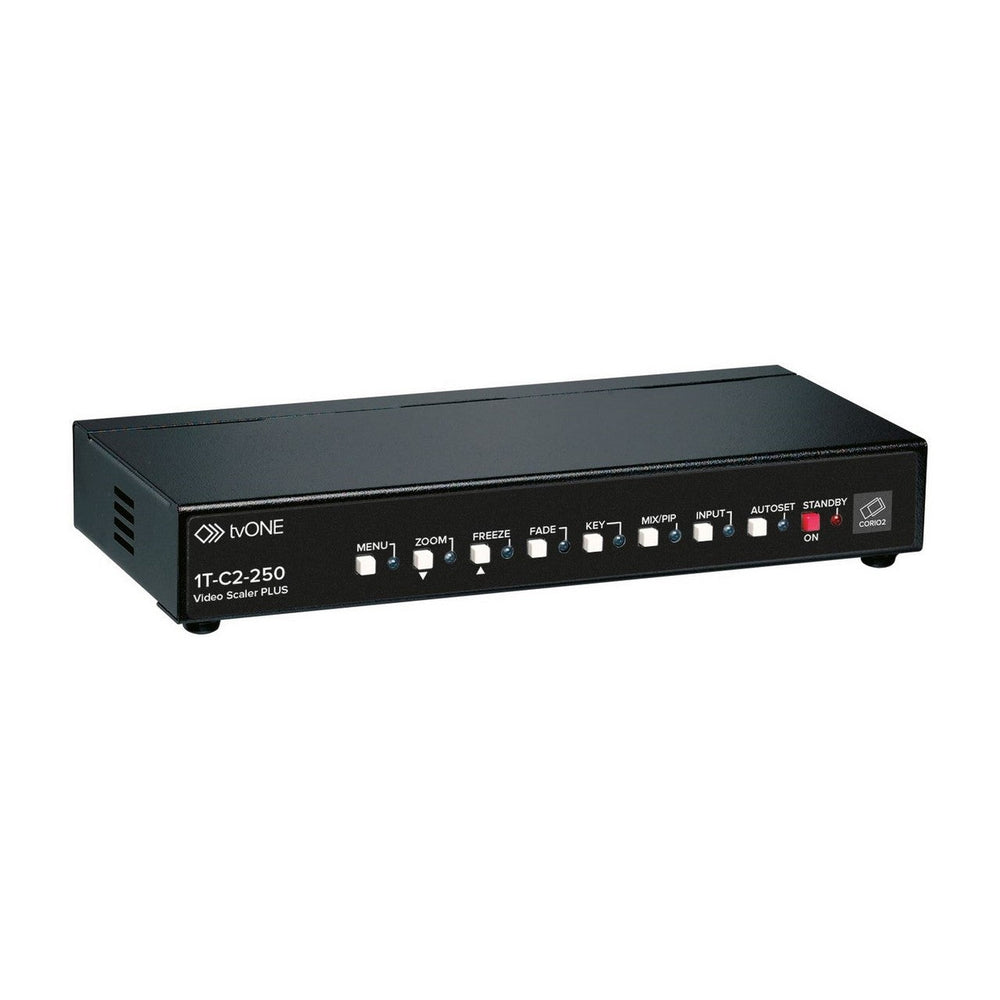

tvONE 1T-C2-250 High Resolution Analog Video Scaler with Genlock and Keying

tvONE 1T-C2-250 High Resolution Analog Video Scaler with Genlock and Keying

1T-C2-250 Video Scaler PLUS is based on TV One’s exclusive CORIO2 technology and provides high quality up conversion from standard video formats to Computer or HDTV signals in a compact package. NTSC and PAL video standards are supported. Inputs can be Composite or S-Video. A computer bypass is also provided. The output is selectable as any computer resolution up to 2048x2048 at any vertical refresh rate and all HDTV resolutions up to 1080p. A wide variety of computer signal formats are available to support PC, Mac and Workstation formats.

Key Features

• Automatic incoming resolution detection
• 1x Composite and 1x S-Video Input
• Computer Resolutions to 2048x2048
• HDTV Resolutions to 1080p
• Multiple Worldwide Television Standards
• 1x RGB/YPbPr Output
• Integral 4x1 Stereo Audio Routing Switcher
• RS-232 Interface and Windows Control Panel
• IR Remote Control
• Variable Image Zoom to 10X and Shrink to 10%

Technical Specifications

Computer Input
Signal Type
Analog RGBHV, RGBS, RGsB, YPbPr
Connectors
1x HD - 15 Female with Loop-thru
PC Resolutions
Any up to 2048x2048
HDTV Resolutions
Any up to 1080p
Video Outputs
Television Standards
NTSC, PAL, PAL-M, PAL-N, SECAM
Composite Video
2x via BNC
YC (S-Video)
2x via 4-PIN
Computer Loop-thru
1x via HD-15 Female Connector
Control Methods
Front Panel
RS-232
Infrared Remote
Warranty
Limited 5 Years Parts and Labor
Mechanical
Size (H-W-D)
30x200x90mm(1.18”x7.87”x3.54”)
Weight (Net)
0.52 kg (1.14 lbs)
