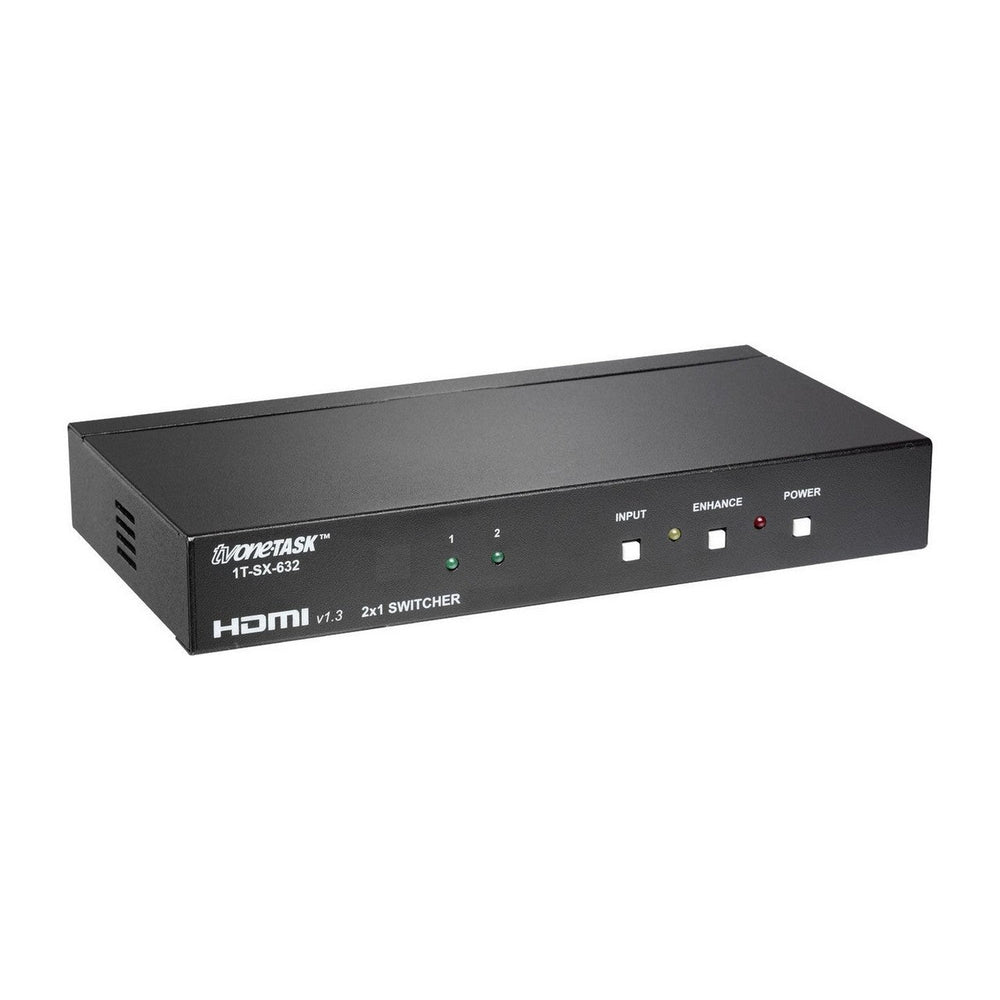

tvONE 1T-SX-632 2 x 1 HDMI Switcher
Description
Description
tvONE 1T-SX-632 2 x 1 HDMI Switcher
1T-SX-632 and 1T-SX-634 HDMI Switchers are HDMI Version 1.3 compliant. The 1T-SX-632 switches between two inputs, the 1T-SX-634 switches up to four inputs. Both units maintain the signal components present within the encoded signal and allow the user to easily select program material without plugging and unplugging cables. Embedded audio, including Dolby Digital TrueHD and DTS-HD is supported.
Key Features
- Switches two or four HDMI Sources
- Supports HDTV resolutions up to 1080p
- Supports SDTV 480i, 576i resolutions
- Supports PC resolutions up to 1920x1200
- HDMI v1.3, HDCP v1.1, DVI v1.0 Compliant
- 3D Compatible
- Built in Enhancer for long cable runs
- Supports 10/12 bit Color Depth Displays
- Supports DDWG Standard for HDMI Monitors
- Supports embedded audio, including Dolby Digital TrueHD and DTS-HD
- Controllable via Front Panel or Included IR Remote
- RS-232 Control Port Provided
- Single/Dual Rackmount Kit optional
- Locking DC Power Connector for Security
Technical Specifications
Video Input
HDMI
2x HDMI via Type A Connectors
Video Output
HDMI
1x HDMI via Type A Connector
Video
SDTV Resolutions
480i, 576i
HDTV Resolutions
480p, 576p, 720p, 1080i, 1080p
PC/DVI Resolutions
Up to 1920x1200
Bandwidth
2.25GHz
Color Depth
10/12 bit
Mechanical
Size (H-W-D)
30x200x89mm (1.2”x7.9x3.5”)
Weight (Net)
0.85 kg (1.9 lbs)
