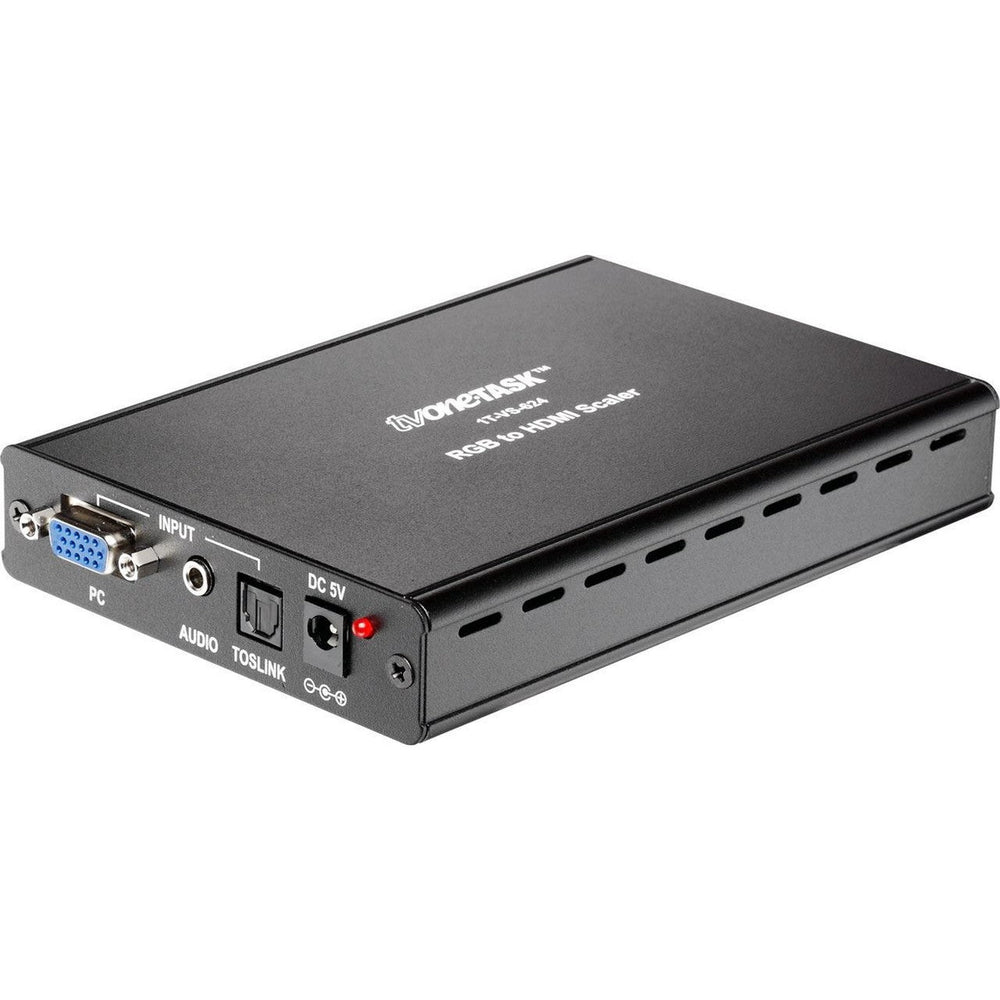

tvONE 1T-VS-624 RGB to HDMI Scaler with Audio Embedding
Description
Description
tvONE 1T-VS-624 RGB to HDMI Scaler with Audio Embedding
1T-VS-624 RGB to HDMI Scaler will convert a wide variety of standard PC (RGB) signals between VGA and WUXGA to a standard HDMI output at PC, SD or HD resolutions. In addition, externally available audio can be embedded into the output HDMI signal via separate Toslink and Analog Stereo inputs. Output audio, embedded in the HDMI signal, is separately available as Toslink and Analog Stereo outputs providing maximum flexibility for systems integration.
The unit is HDCP complaint and DVI compatible and is ideal for situations where PC or other RGB video must be viewed on an HDMI display. The resolution of the attached display is automatically discovered by the unit. A comprehensive OSD menu allows manual selection of output resolution, adjustments of picture quality and audio input selection. A Locking DC power connector is used for security.
Key Features
- HDMI v1.2, HDCP 1.1, DVI 1.0 Compliant
- Input: VGA through WUXGA
- Output: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
- Automatically Detects HDMI Display Resolution
- Video Level Adjustments
- Supports embedded and external audio in and out
- Locking DC Power Adapter
Technical Specifications
PC RGB Video Input
1x Via HD-15 Connector
HDMI Output
1x Via Type A Connector
Analog Stereo Input
1x via 3.5mm Mini-Stereo
Analog Stereo Output
1x via 3.5mm Mini-Stereo
Digital Input
1x SPDIF via Toslink Connector
Digital Output
1x SPDIF via Toslink Connector
Size (H-W-D)
25x102x145mm (1x4x5.7”)
Weight (Net)
340g (12oz)
Warranty
Limited 1 Year Parts and Labor
