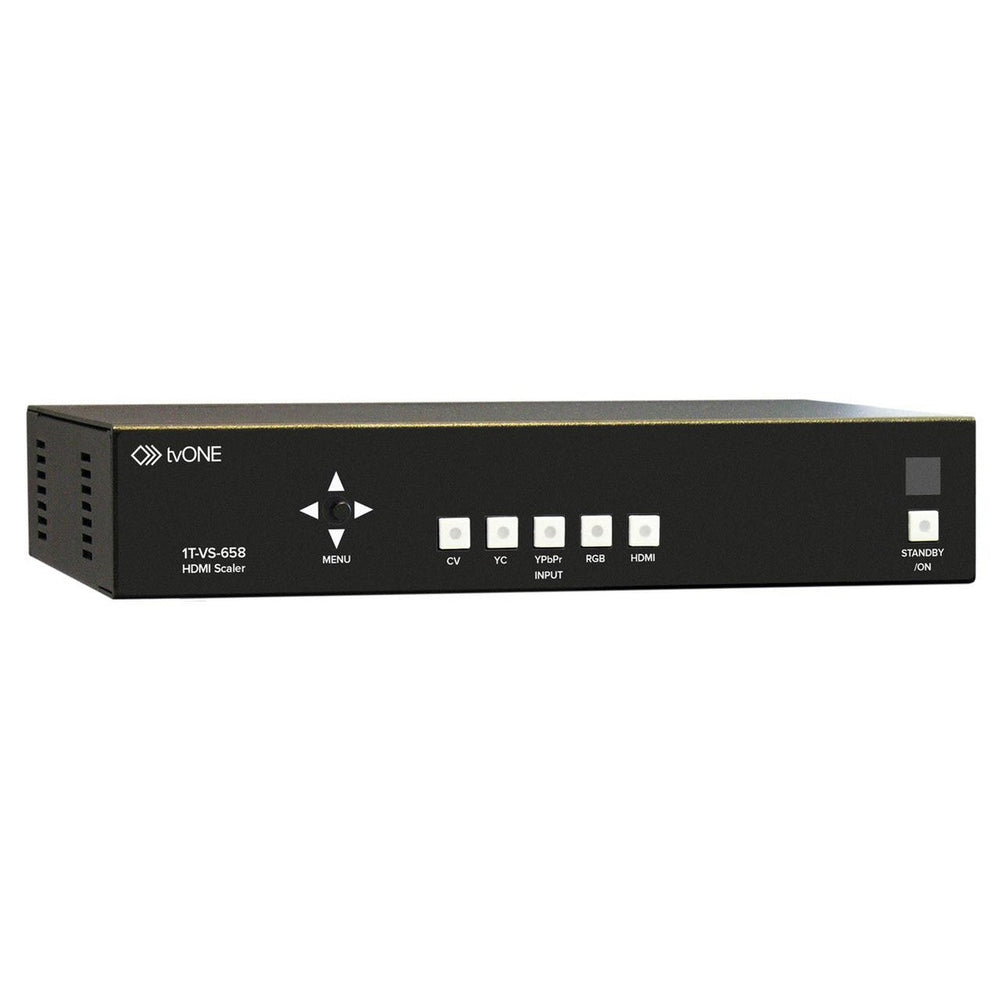

tvONE 1T-VS-658 HDMI Video Scaler
1T-VS-658 Video Scaler is an Up and Cross Converter with HDMI output. Fully scaleable video inputs include HDMI, DVI (via the HDMI connector), Analog RGB via an HD-15, Analog YPbPr or 480i/576i YUV Component via three RCA, YC and Composite Video. It handles I/O Resolutions up to 1080p and WUXGA. Both digital and analog audio processing is supported and audio delays of up to 150ms can be introduced to insure lip sync. Five Analog Stereo and a SPDIF Coaxial Digital Audio input can be selected for embedding into the HDMI output. A separate Coaxial Digital Audio output is also provided.
Advanced features, such as 3D Motion Adaptive De-Interlacing, 3D Noise Reduction and 8-bit triple ADC/PLL technology, combine to provide extremely high quality signal conversion. The HDMI I/O is HDCP Compliant. An OSD (On Screen Display) menu makes the 1T-VS-658 easy to set up. Control is via front panel joystick and buttons, Infrared Remote or RS-232 interface.
Key Features
- HDMI Output Resolutions to WUXGA and 1080p
- Inputs: HDMI, RGB, YPbPr, YUV, YC (S-Video), CV
- Both Analog and Digital Audio Capable
- Audio Delay for Lip Sync Corrections
- 3D Motion Adaptive De-Interlace & Noise Reduction
- 3:2 Pull-Down w/2:2 Pull-Down Recovery
- Infrared Remote Control
- Locking DC Power Supply
- Optional Single/Dual Rackmount Kit
Technical Specifications
Video Inputs
HDMI (DVI Compatible)
1x via HDMI Connector
Analog RGBHV
1x via HD-15 Connector
Analog YUV Component
1x via 3x RCA Connectors
YC (S-Video)
1x via 4-pin Mini Din
Composite Video
1x via RCA Connector
Audio Inputs
Digital (S/PDIF)
1x viaRCA Connector
Analog Stereo
3x via RCA (R/L)
2x via
3.5mm Mini-Stereo
Video Output
HDMI (RGBHV)
1x via HDMI Connector
Audio Outputs
Embedded into HDMI
Digital per HDMI Spec
Digital (S/PDIF)
1x via RCA Coax Connector
Audio Delay Adjustment
Off, 40ms, 110ms, 150ms
Input Video Formats Supported
HDMI (RGBHV/YPbPr)
Up to WUXGA, 1080p
Analog RGBHV
Up to WUXGA@60Hz
Analog YPbPr
Up to 1080p
Analog Interlace Component
480i, 576i YUV (Y,R-Y,B-Y)
DVI (via HDMI Connector)
Up to WUXGA, 1080p
Composite and YC (S-Video)
NTSC or PAL
Remote Control
Front Panel
Infrared
RS-232 Interface
Warranty
1 Year Parts and Labor
Size (H-W-D)
42x218x164mm (1.7x8.5x6.45”)
Weight (Net)
1.21 kg (2.68 lbs)
