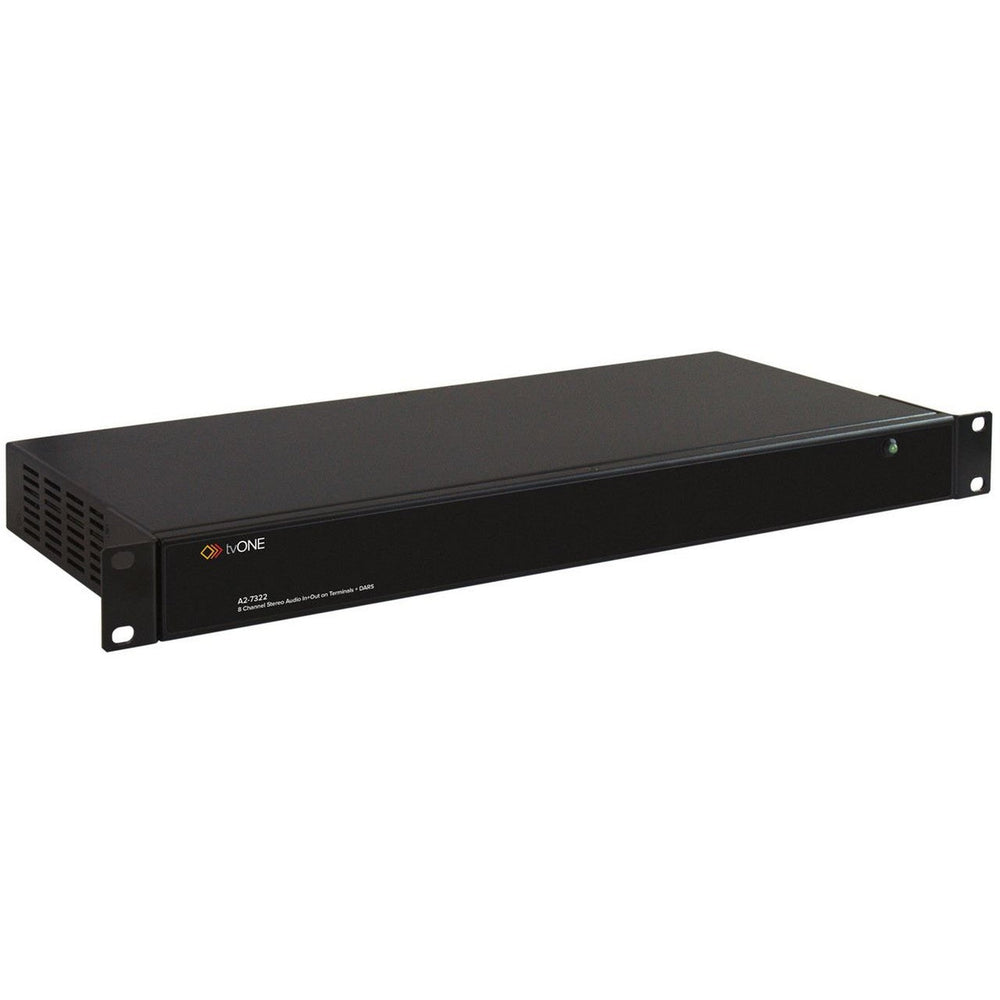

tvONE A2-7322 Analog Stereo on Terminals Format Converter
Description
Description
tvONE A2-7322 Analog Stereo on Terminals Format Converter
Provides 8-In/8-Out Analog Stereo Channels (Bal or Unbal) on Terminals from CM-AUD-8IN-8OUT.
Key Features
- 8 Balanced/Unbalanced Stereo In on Terminals
- 8 Balanced/Unbalanced Stereo Out on Terminals
- DARS AES3-id Input on a HD44 connector
- User adjustable sample rates 32, 44.1, 48KHz
Technical Specifications
Interface
via HD-44 Connector
Analog Stereo Audio I/O
Inputs: 8 Channels Stereo via Terminals
Outputs: 8 Channels Stereo via Terminals
DARS Reference: 75 BNC
Impedance: 600 Balanced (Analog I/O)
Voltage Level: 6Vp-p input maximum (8.75dBu).
0dBFS AES3 input equating to 8.75dBu analog output
THD+Noise at 48KHz: -97dB (A to D), -93dB (D to A)
Mechanical
Size (HWD): 44x482x200mm (1.75”x19”x7.9”)
Weight: 3.0kg (6.6 lbs)
Power Requirement
External Power: 12VDC @ 3A
Regulatory Approvals
Format Converter: FCC, CE, RoHS
