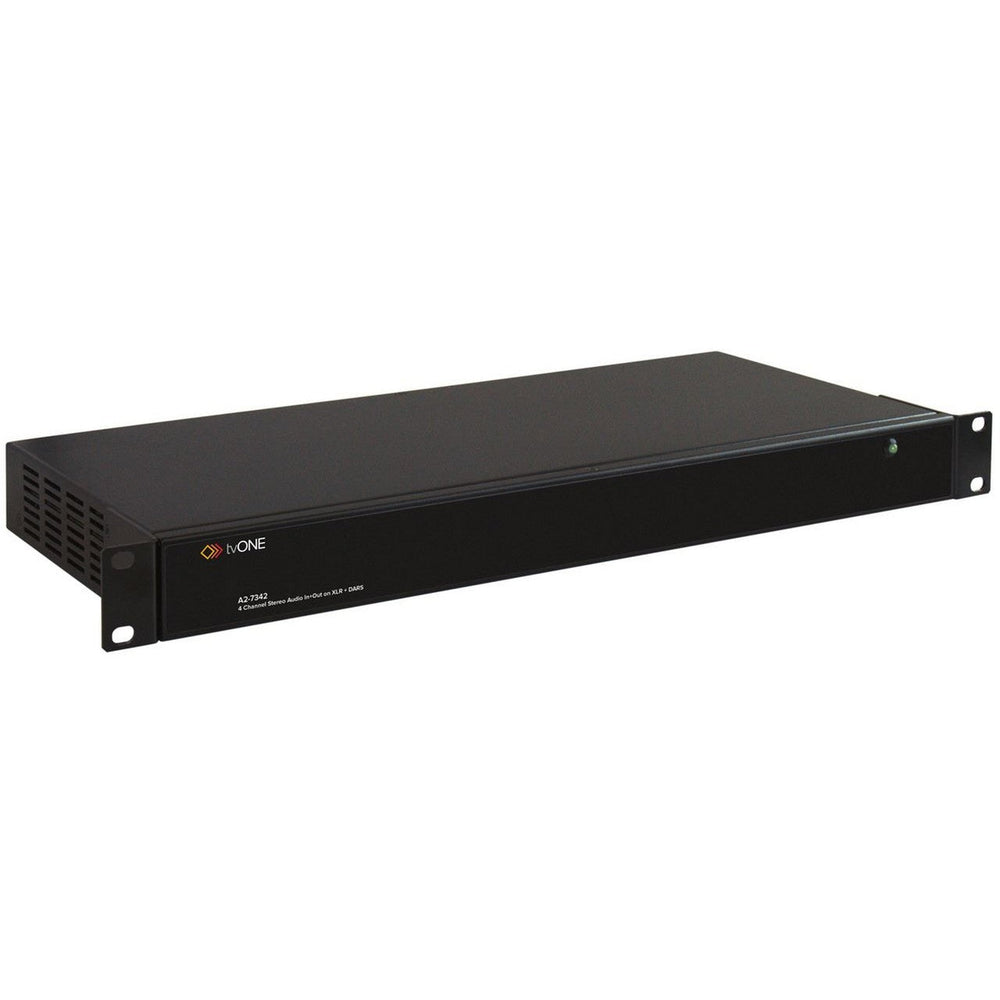

tvONE A2-7342 Analog Stereo on XLR Format Converter
Description
Description
tvONE A2-7342 Analog Stereo on XLR Format Converter
Provides 4-In/4-Out Analog Stereo Channels on XLRs from CM-AUD-8IN-8OUT
Key Features
- 8 AES3-id Inputs on 75 BNC Connectors
- 8 AES3-id Outputs on 75 BNC Connectors
- DARS AES3-id Input on a HD44 Connector
Technical Specifications
Interface
Via HD-44 Connector
Audio Stereo Audio I/O
Inputs: 4 Channels Stereo via 8x XLR
Outputs: 4 Channels Stereo via 8x XLR
DARS Reference: 75 BNC
Impedance: 600 Balanced (Analog I/O)
Voltage Level: 0dbFS =6Vp-p (8.75 dBu) AES3 input maximum
THD+Noise at 48KHz: -100dB (A to D), -97dB (D to A)
Bandwidth: 30 Hz to 22.5 kHz (-3dB)
Mechanical
Size (HWD) : 44x482x200mm (1.75”x19”x7.9”)
Weight: 2.7kg (6.0 lbs)
Power Requirement
External Power: 12VDC @ 3A
Regulatory Approvals
Format Converter: FCC, CE, RoHS
