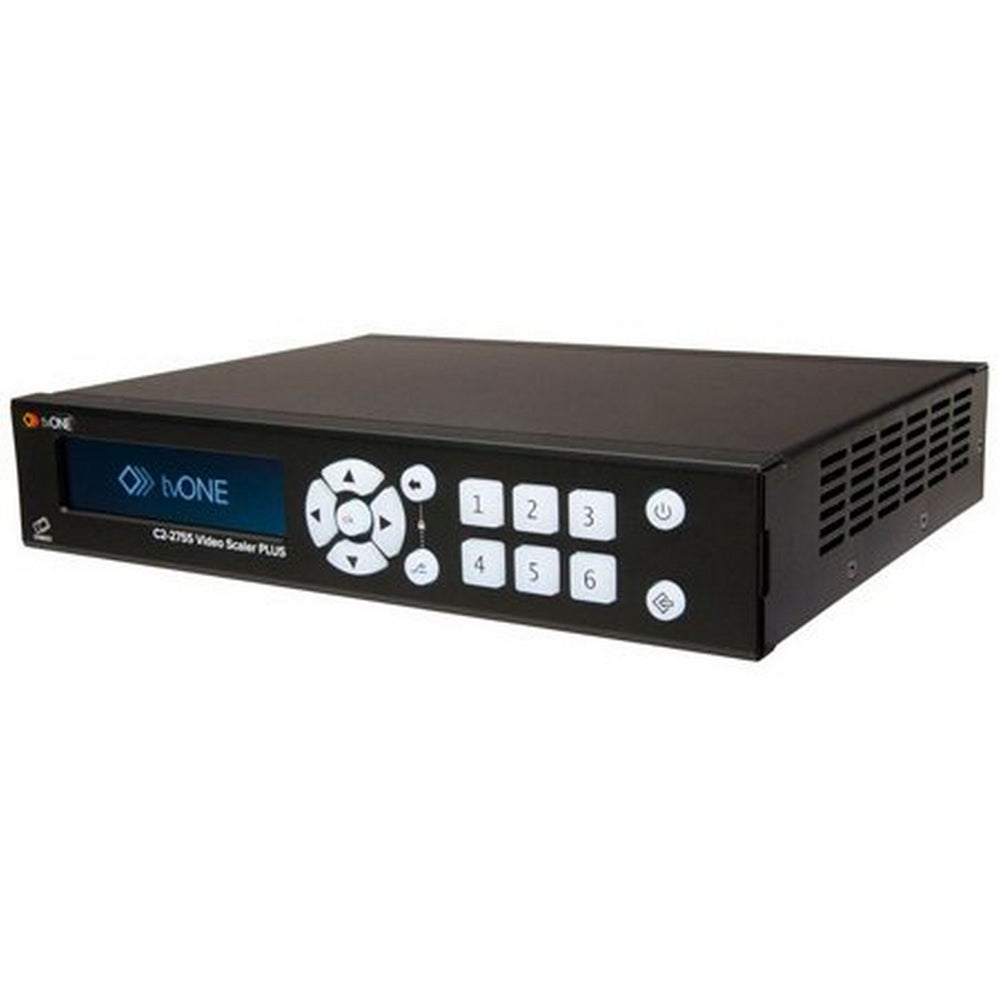

tvONE C2-2755 Up/Down/Cross Converter, HDMI/DVI-I Outputs
Description
Description
tvONE C2-2755 Up/Down/Cross Converter, HDMI/DVI-I Outputs
The C2-2755 Video Scaler PLUS is one of a new generation of high performance scalers that provides best-in-class video scaling and format conversion along with revolutionary, intuitive user interface tools. The crystal clear OLED display intuitively guides users through setup and control using color-modulated, backlit buttons. Alternatively, a graphic user interface for Windows can be used to set up and control the unit via IP. RS232 is also provided as a direct control interface for 3rd party control systems. The video performance of the C2-2755 provides high quality bi-directional conversion and switching between a wide variety of analog and digital video formats. Living up to its designation as a "Video Scaler" the C2-2755 supports SD/HD/3G-SDI, HDMI, DVI, Composite Video, YC, YUV, YPbPr or RGB, on inputs and HDMI and DVI-I outputs, and the signal parameters of the incoming video may be adjusted. The high resolution RGB/YPbPr output is selectable at virtually any PC or HDTV resolution.
Twelve user-defined presets are readily available for instant, on-the-fly adjustment to diverse customized applications.
Key Features
- Up/Down/Cross Conversion
- Supports: NTSC, PAL, PAL-M, PAL-N
- Motion Compensation & 3:2 Pulldown
- Temporal Interpolation & Diagonal Interpolation
- Automatic Incoming Resolution Detection
- Calibrate - Automatic picture sizing of PC inputs
- 4:4:4 Full bandwidth Chroma Sampling for RGB sources
- 4:2:2 for SDI, YC and CV sources
- HDMI YUV support for either 4:4:4 or 4:2:2 sampling
- Video signal parameter adjustments
- Integral 4x1 Stereo Analog Audio Routing Switcher, fully integrated with digital audio
- Stereo Audio Embedding on capable outputs (DVI-I, HDMI)
- RS-232 and IP Interface for Control Software
- Variable Image Zoom to 10X and Shrink to 10%
- Genlock
- Framelock
- PIP, Chromakey and Lumakey
- Optional Single/Dual Rackmount Kit
Technical Specifications
Video Inputs
Television Standards: NTSC, PAL, PAL-M, PAL-N, SECAM
Composite Video: 1x via BNC & 1x via Universal DVI
YC (S-Video): 1x via 4-Pin Mini-DIN & 1x via DVI
HDTV: 1x via HDMI & 1x via DVI
SD/HD/3G-SDI: 1x via BNC
Computer Inputs
Signal Type: 1x Analog via PC/HD HD15, 1x DVI
Format: RGBHV, RGBS, RGsB, YPbPr, YUV
Analog Signals: PC to 1920x1080, HD to 1080p/60
DVI & HDMI signals: PC to 1920x1200, HD to 1080p/60
Video Outputs
Television Standards: 720p,1080i,1080p
RGB, YUV, YPbPr: 1x via DVI-I
HDTV: 1x via HDMI
Computer Outputs
Signal Type: 1x DVI-I & 1 x HDMI
Format: RGBHV, RGBS, RGsB, YPbPr
Analog Signals: PC; 800x600/60 to 1920x1080, HD
DVI & HDMI Signals: PC; 800x600/60 to 1920x1200, HD
Audio Input/Output
Inputs: 3x Unbalanced via Terminals; 1x Unbalanced via 3.5mm jack ; 1x HDMI, 1x Universal DVI, 1x SDI
Outputs: Unbalanced via Terminals; 1x HDMI, 1x DVI-I
De-embedding support: 1 stereo pair at 32 kHz, 44.1 kHz, 48kHz
Embedded support: 1 stereo pair at 48kHz
Control Methods
Front Panel
RS-232 Interface
IP Interface
Control Software included
Warranty
Limited 5 Years Parts and Labor
