tvONE CM-HDBT-2IN-1ETH HDBaseT CORIOmaster Input Module
Description
Description

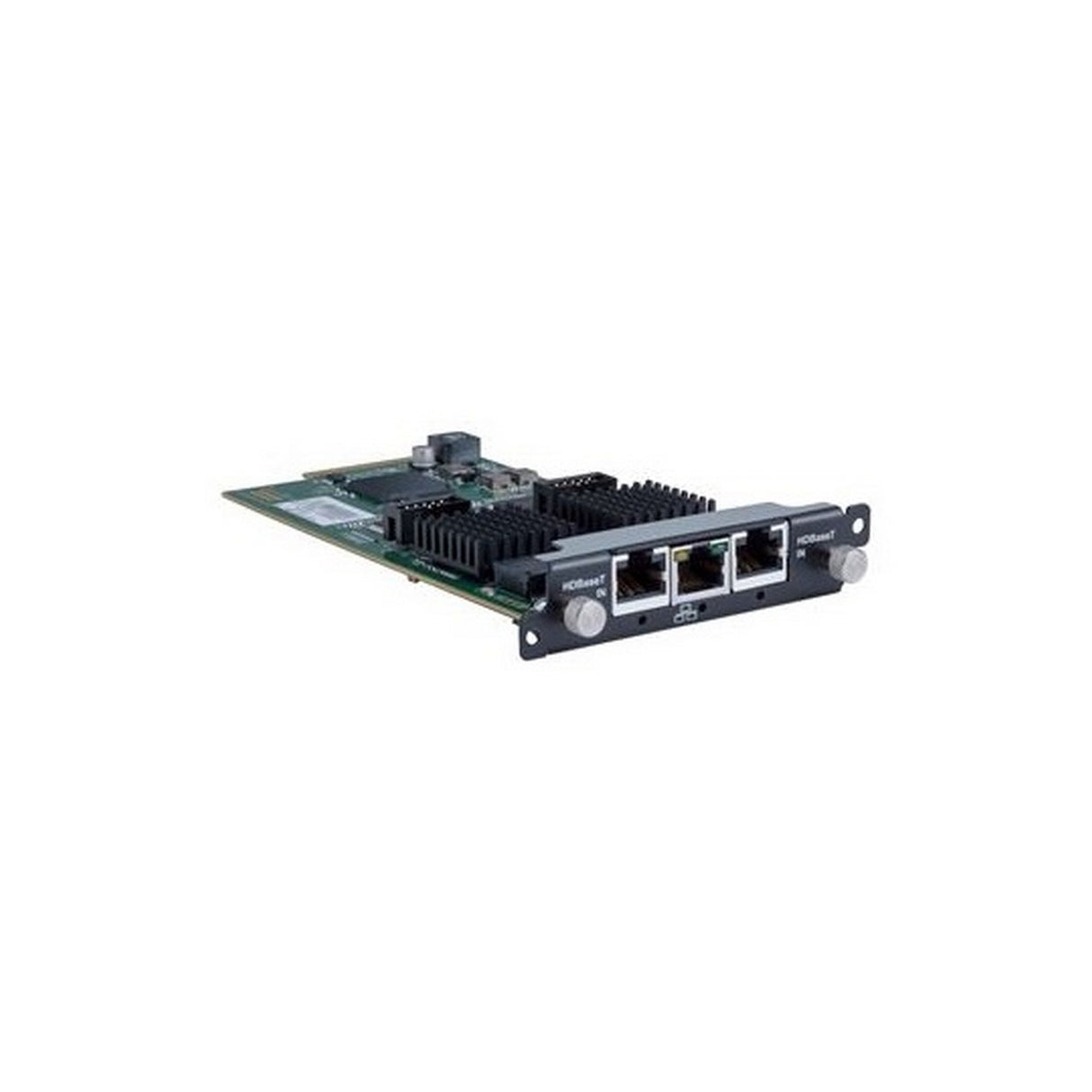

tvONE CM-HDBT-2IN-1ETH HDBaseT CORIOmaster Input Module
The 4K HDBaseT (dual) input module for CORIOmaster, CORIOmaster mini, and the CORIOmaster micro allows for the input of uncompressed, high resolution 4K Video and Audio from stand-alone transmitters located up to 150m away. The HDBaseT input Module also allows for Ethernet to be accessible from distant transmitters. This module can be used with transmitters that support HDBaseT, HDBaseT-Lite and HDBaseT-Extended mode.
Technical Specifications
Input
HDBaseT
Via 2 x RJ45 connectors
Resolution support
480i, 576i, 720p, 1080i & 1080p @ 24Hz to
60Hz 3840 x 2160 4:4:4 @ 23.98Hz 24Hz,
25Hz, 29.97Hz & 30Hz, 8-bit 3840x2160
4096x2160 4:2:0 50/59.94/60Hz 8-bit
4K support
1x channel 4K60 support or 2x 4K30 & lower
Compatibilty
HDMI 2.0 (for 3840 x 2160 4:2:0 @ 50Hz, 59.94Hz & 60 Hz) HDMI 1.4 (for other
Mechanical
Size (H x W x D)
21 x 96 x 170mm (0.9" x 3.9" x 6.8")
Weight (Net)
160g (5oz)
