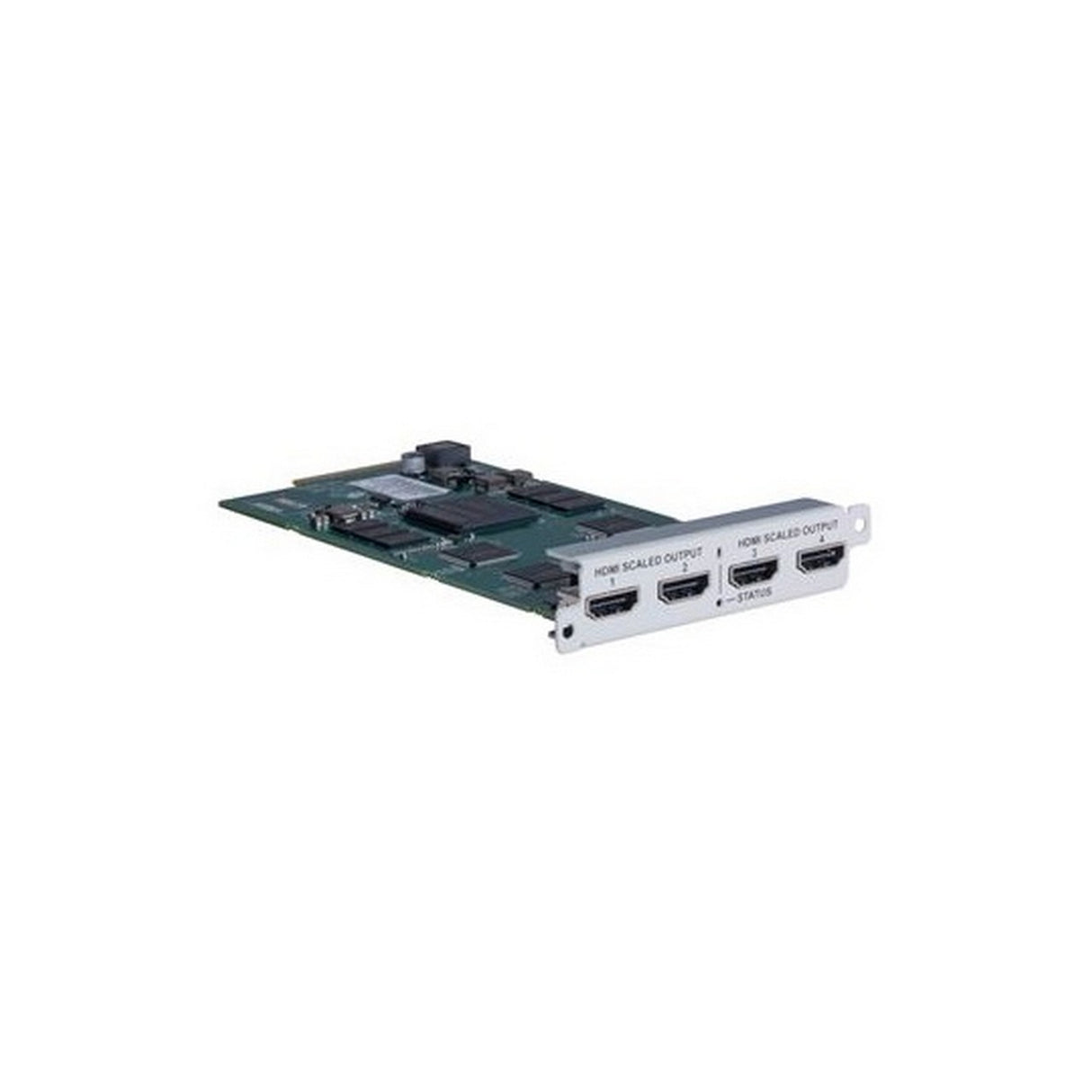

tvONE CM-HDMI-SC-4OUT Quad HDMI Scaled Output Module
Description
Description
tvONE CM-HDMI-SC-4OUT Quad HDMI Scaled Output Module
The Quad HDMI scaled output module allows you to produce up to 56 1080p outputs with your CORIOmaster C3 540. Now you can create enormous video walls, projector edge blends, and LED installations.
Technical Specifications
Output
Video
4x HDMI 1.4 connectors
Resolution support
720x480i59.94, 720x480p59.94, 720x576i50, 720x576p50, 1280x720p23.98, 1280x720p24, 1280x720p25, 1280x720p29.97, 1280x720p30, 1280x720p50, 1280x720p59.94, 1280x720p60, 1920x1080i50, 1920x1080i59.94, 1920x1080i60, 1920x1080p23.98, 1920x1080p24, 1920x1080p25, 1920x1080p29.97, 1920x1080p30, 1920x1080p50, 1920x1080p59.94, 1920x1080p60
Compatibility
HDMI 1.4 and HDCP 1.4, Only supported by CORIOmaster C3 540
Color space
BT.601 on standard resolutions BT.709 for 720p, 1080i, and 1080p
Warranty
Limited warranty: 5 years parts and labor
Regulatory compliance
FCC, CE, RoHS, UL
Mechanical
Size (H x W x D)
21 x 96 x 170 mm (0.9” x 3.9” x 6.8”)
Weight (Net)
160 g (5 oz)
Environmental
Operating temp
0 C to 40 C (32 F to 104 F)
Operating humidity
10% to 85% non-condensing
Storage temp
-10 to +70 C (+14 to 158 F)
Storage humidity
10% to 85% non-condensing
Still image
above 50,000 hours
