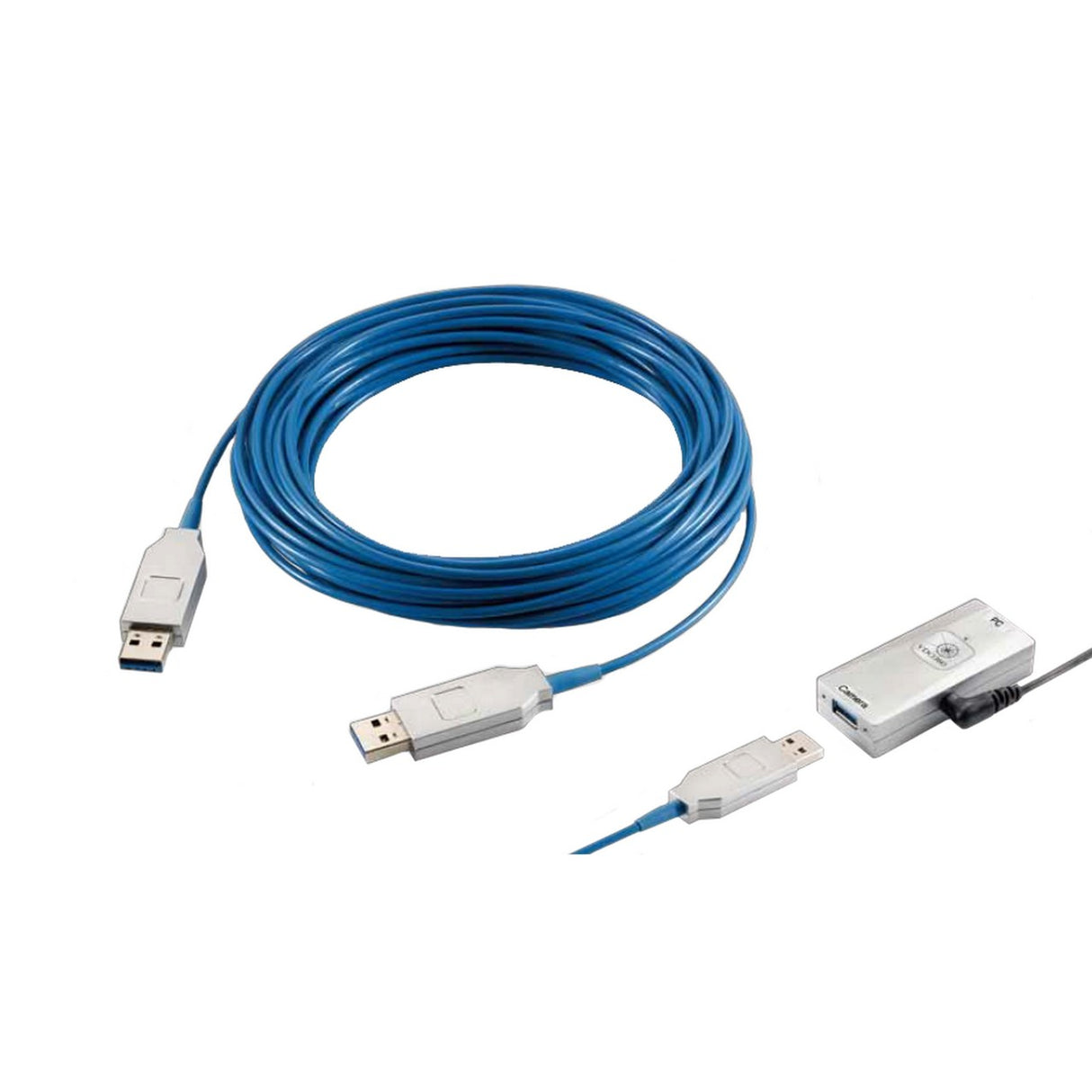

VDO360 Springline 3.0 Active Optical USB Extender
VDO360 Springline 3.0 Active Optical USB Extender is backordered. Please call for ETA 877-779-8964
Condition: New
VDO360 Springline 3.0 Active Optical USB Extender
Description
Description
VDO360 Springline 3.0 Active Optical USB Extender
The VUSBEXT-3 is a high-performance USB 3.0 extender and comes with a 100ft active optical cable.
Key Features
- Extend USB3.0 cameras and devices up to 100m/328ft over fiber optics (100ft cable included)
- Converts USB electrical data signals to optical signals
- Compliant with SuperSpeed USB specifications, 5Gbps data rate
- Supports 850 nm VCSEL (Multi-Mode)
- Less EMI/RFI for RF sensitive environments
- Metal housing for superior EMI performance
- Low power consumption
- Plug and play
- Lighter, thinner, 3.0mm fiber cable diameter
- Supports all major operating systems including Windows, Mac OS 10.8 and higher, and Linux Kernel 3.11.10 and higher
- 30m cable included
- USB3.0 AOC backwards compatible with USB 2.0 when using USB3.0 Super TT Dongle (included)
Technical Specifications
Connector
USB3.0 Standard-A Plug
Housing Metal - Zinc Alloy
Cable diameter
3.0mm
Max. data rate
USB3.0 super speed, 5.0Gbps
Range
100m ( 330 ft) over multimode optical fiber
Power Consumption
0.58W
Power Current
116mA
Optical Transceiver 850 nm VCSEL (multimode)/ GaAs PD
Operating Temperature
0C to 55C (32F to 131F)
Storage Temperature
-20C to 80C ( -4F to 176F)
Humidity
5% to 90% (non-condensing)
Cable lengths
10m/20m/30m/50m/100m
