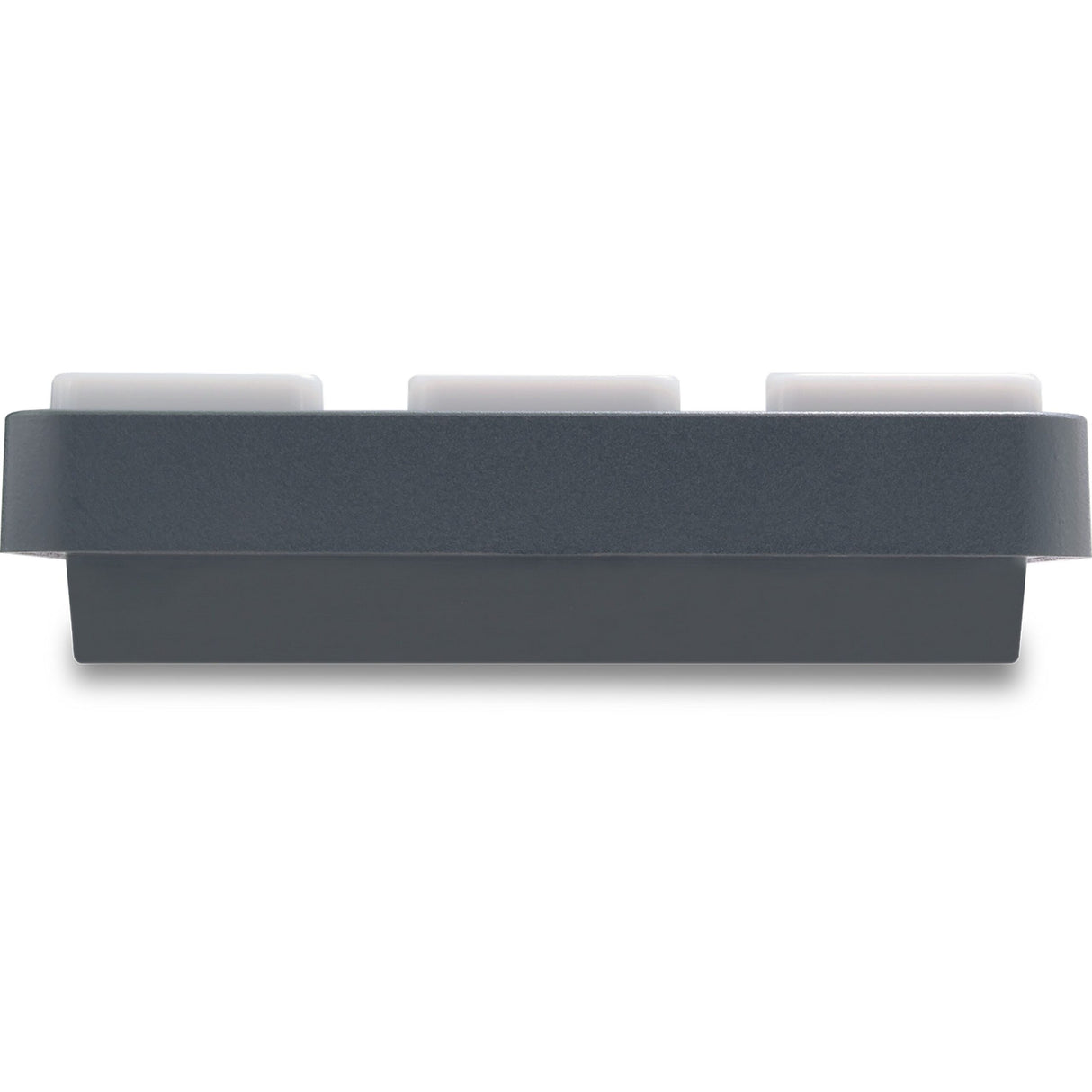

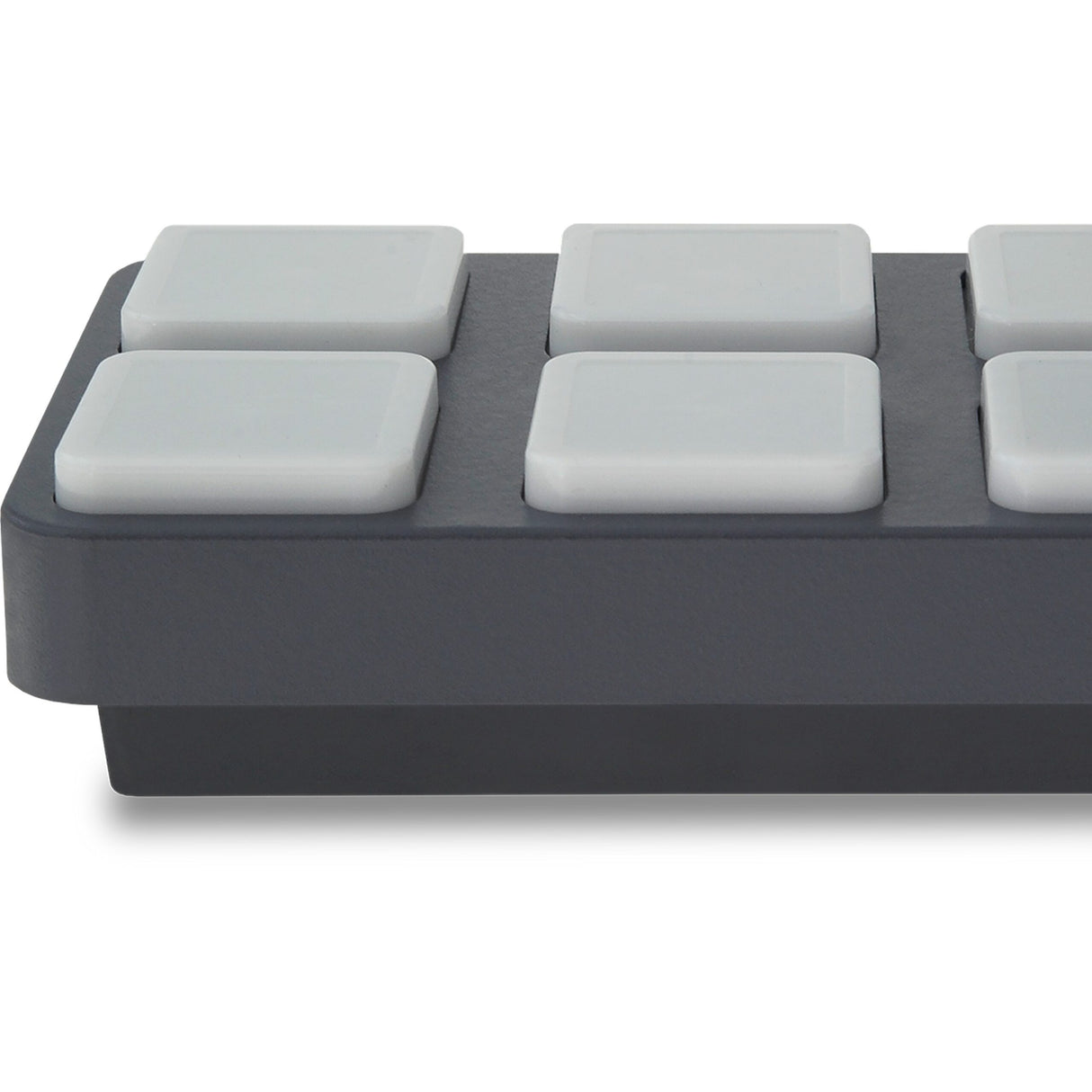

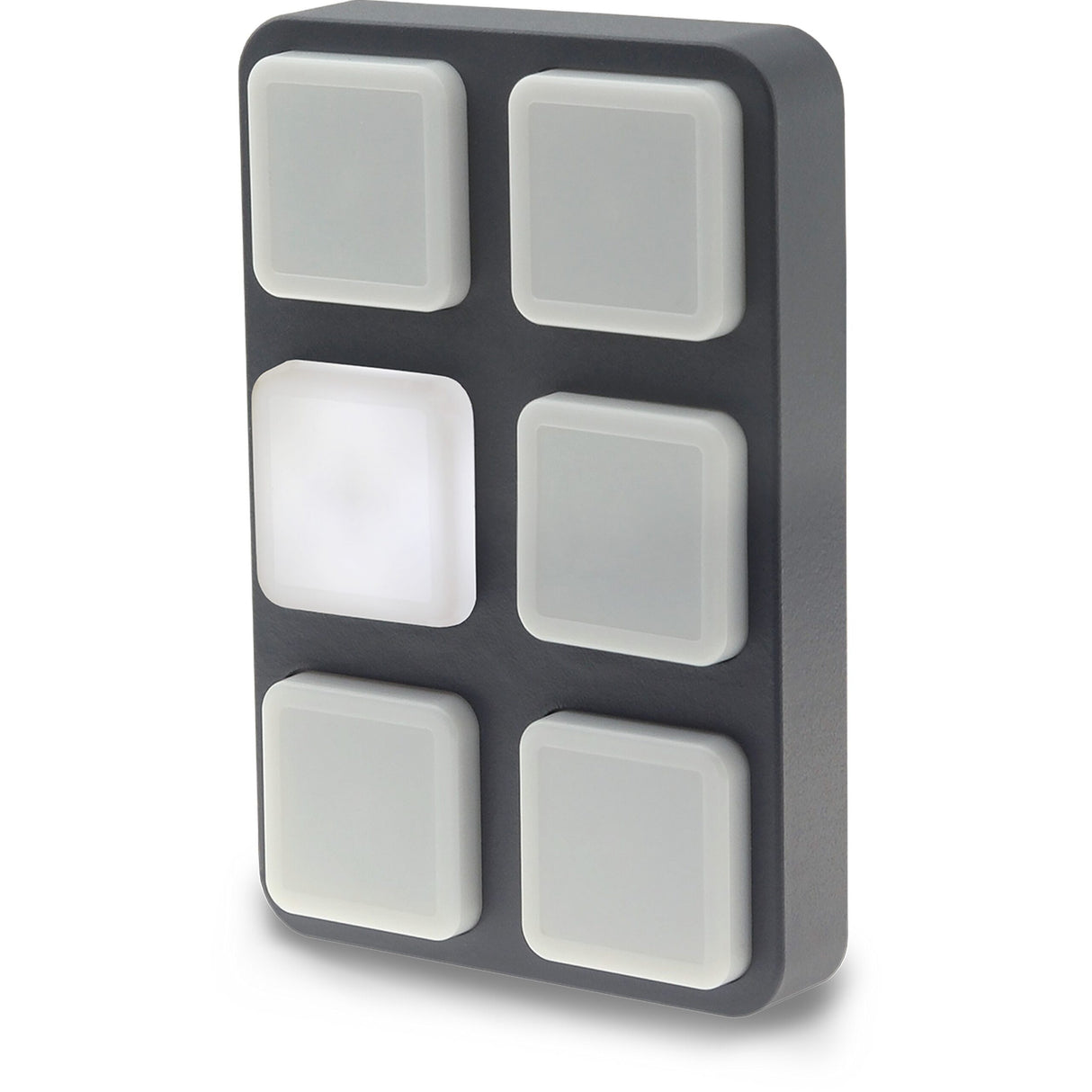

Visual Productions B-Station Advanced Wall-Mount Panel with Backlit Push-Buttons

Visual Productions B-Station Advanced Wall-Mount Panel with Backlit Push-Buttons

The B-Station is a wall-mount button panel with 6 push-buttons. It can remote control any function within the CueCore. The buttons are back-lit and can provide visual feedback, for example, to indicate the selected cue or active show. Multiple B-Stations can be networked together.

Remote control CueCores
The B-Station is a great user-interface for triggering content inside a CueCore or QuadCore. Lighting scenes and dynamic shows can be activated by the touch of a button on a B-Station.

Stand-alone lighting controller
For small lighting projects with LED or white light, the B-Station offers a complete solution. The B-Station contains an inbuilt lighting controller that is capable of programming 32 fixtures. It has six independent cuelists with plenty of cues. It even features a FX generator for effects like sinus, rainbow, twinkle, random strobe, etc. The fixtures are connected to the onboard DMX port.

Key Features

• 6 Push Buttons
• Buttons are backlit with white LEDs
• web-interface for programming
• DMX-512 output
• Art-Net Output and Input
• UDP Output and Input
• OSC Output and Input
• Compatible with Kiosc
• 32 fixtues in standalone mode
• 6 cuelists/zones in standalone mode
• FX Generator
• POE Class I
