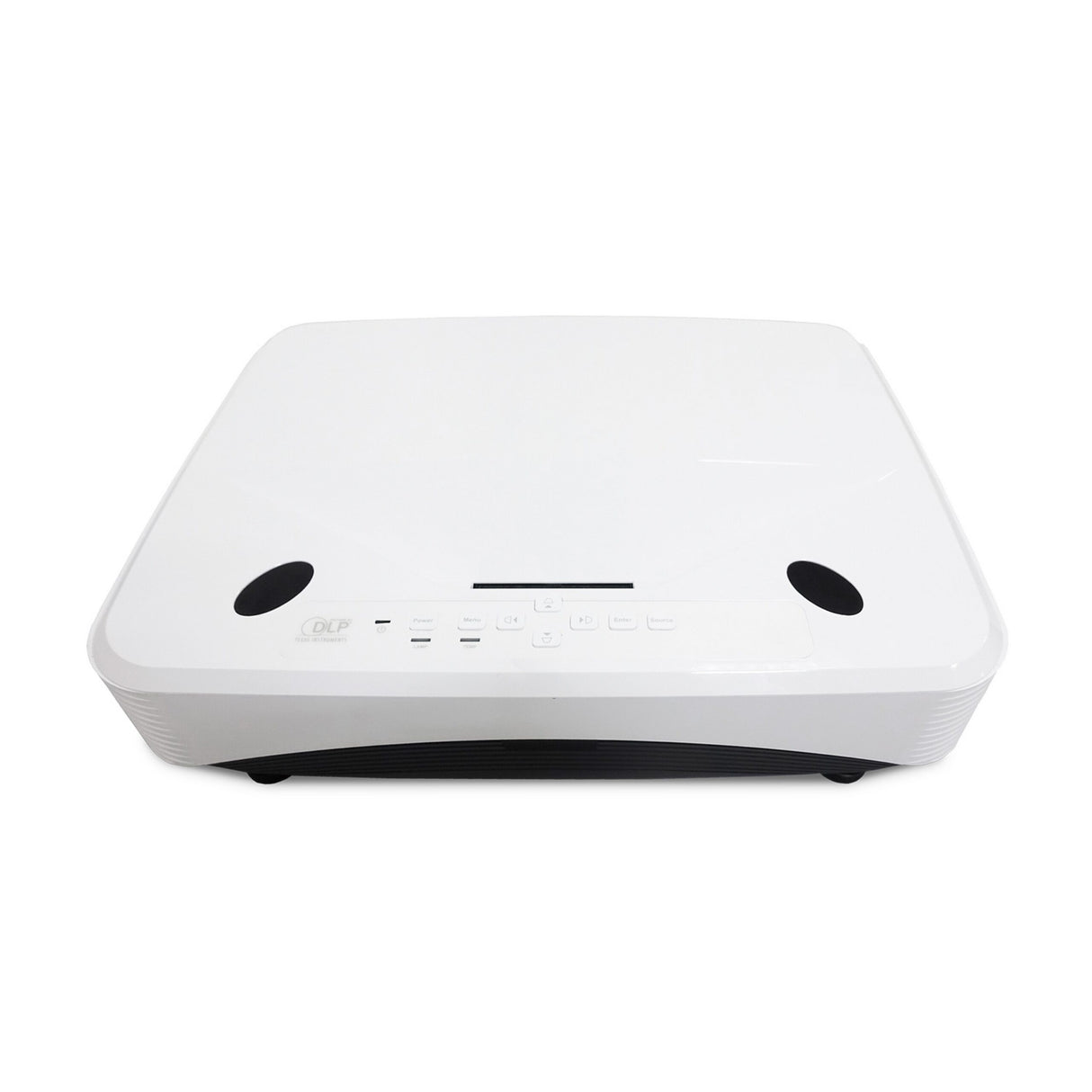

Vivitek DH765Z-UST WUXGA DLP 4000 Lumen Ultra-Short Throw Laser Projector

Vivitek DH765Z-UST WUXGA DLP 4000 Lumen Ultra-Short Throw Laser Projector

The latest innovation from Vivitek’s game-changing series of laser engine projectors, the DH765Z-UST redefines ultra-short throw projection from performance and value perspectives by delivering large, readable images virtually shadow-free. Ideal for education, corporate collaboration, themed entertainment and digital signage, the DH765Z-UST’s low-profile design, quietness, and minimal maintenance requirements ensure seamless installation and ease of operation.

To make the user experience even more engaging, Vivitek’s NovoPRO solution can be added for full wireless connectivity and collaboration for up to 64 users in the room. NovoPRO is designed to ensure a top-quality wireless experience to accommodate today’s popular Bring Your Own Device (BYOD) concept. NovoPRO ensures cross OS platform compatibility at a price-performance point that makes it easily affordable for any meeting room, boardroom or workspace.

For usage within a digital signage environment, pair the DH765Z-UST projector with NovoDS Digital Signage system. Simplicity and ease of use make NovoDS the new standard in single or enterprise-wide digital signage deployment.

Key Features

• Laser Phosphor Light engine provides up to 20,000 hrs and a low cost of ownership and ease of operation
• Quietest laser projector in its class at 28/31 dB
• Ultra-short throw lens of 0.24:1 projects a large image size - up to 150” diagonal
• Low profile design

Technical Specifications

Display Type
Single Chip 0.65” DLP Technology by TI
Brightness
4,000 Lumens
Native Resolution
1080p (1920 x 1080) 16:9 format
Maximum Resolution
VGA (64 x 480) to WUXGA (1920 x 1200)
Contrast Ratio
12,000:1
Lamp Life and Type
20,000 Hours Laser light source technology
Image Size (Diagonal)*
80-150” Diagonal
Aspect Ratio
Native 16:9
Lens Shift
No
Zoom Ratio
Fixed
Throw Ratio
0.23:1
Keystone Correction
2D, Vertical and Horizontal ±30 Degrees; Auto Vertical
Horizontal Frequency
15 K, 102 KHz
Vertical Scan Rate
23-120 Hz
Operating Temp.
0-40 Degrees C
HDTV Compatibility
480i, 480p, 576i, 567p, 720p, 1080i, 1080p
Video Compatibility
NTSC, PAL, SECAM, SDTV (480i/576i), EDTV (480p/576p, HDTV (720p, 1080i/p 60Hz)
I/O Connection Ports
HDMI with MHL, HDMI, Composite Video (in RCA), S-Video (in Mini DIN 4pin), Audio in (Mini Jack), Audio L/R (RCA x2), Audio Out (Mini Jack), LAN RJ45, RS232 (DB-9pin), USB (Type Mini B), Computer in (D-sub 15pin), Monitor Out (D-sub 15pin)
Security Solutions
Kensington Security Slot, Security Bar, Keypad Lock
Dimensions (WxDxH)
456 x 376 x 132 mm (18” x 14.8” x 5.2”)
Weight
10.5kg (23.1lbs)
Available Colors
White
Noise Level
31 dB / 28 dB (Normal / Economy Mode)
Power: Supply and Cons.
AC 100-240V, 50/60 Hz; AC 100-240 V, 50/60 Hz
Instant on/off
Yes
Standard Accessories
Remote Control w/ Batteries, User Manual CD, Quick Start Guide, Warranty Card, VGA Cable
Speaker
10W x1
