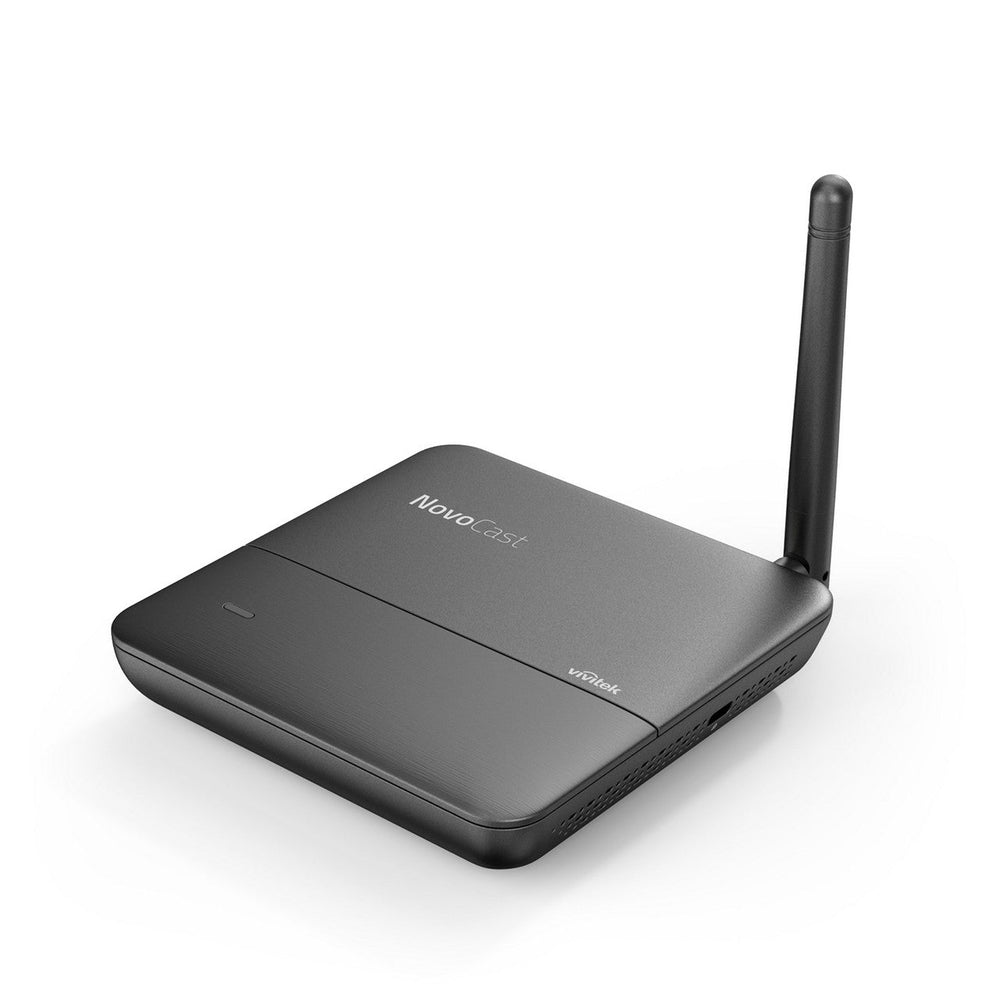

Vivitek NovoCast | Wireless Presentation and Collaboration System

Vivitek NovoCast Wireless Presentation and Collaboration System

To ensure that collaboration is never impeded by incompatible technologies, NovoCast boasts cross-platform support of Windows, Mac, Android, iOS, and Google devices. This allows educators and students with practically any device to share what they are viewing simultaneously across a single display.

AIRPLAY & GOOGLE CAST SUPPORT
Thanks to the widespread popularity of iOS and Android devices, AirPlay and Google Cast have established themselves as the go-to methods for screen mirroring and content streaming. NovoCast fully supports both standards to accommodate virtually every device brought into classrooms today.

8 PARTICIPANTS & QUAD-VIEW DISPLAY
In addition to being capable of supporting up to eight users per session, NovoCast also boasts quad-view screen sharing. Ideal for comparing and contrasting different content, quad-view screen sharing enables educators and student presenters to simultaneously view four different screen sources side-by-side.

MODERATION & SCREEN PREVIEW
To empower educators with the tools they need to lead and maintain control over their lectures, NovoCast features intuitive moderation and screen preview functionalities. These tools serve to structure, focus, and streamline presentations, resulting in more productive and collaborative classroom discussions.

WIRELESS COLLABORATION TOOLS
Beyond screen mirroring and content streaming, NovoCast also features indispensable collaboration tools to further enhance lectures, seminars, and presentations. Wireless file-sharing allows for convenient relaying of digital assets while AirNote enables users to annotate projected screens on their own device.

CENTRALIZED MANAGEMENT
Especially useful for school and district-wide deployments, NovoCast can be centrally accessed, updated, and operated via the Remote Manager application. Free-to-download and update for Windows and Mac computers, Remote Manager enables network wide control over NovoCast units connected to the same network.

Key Features

• Cable and clutter-free wireless collaboration for classrooms
• Supports fullscreen mirroring of iOS, Android, Chromebook, PC, and Mac devices
• Intuitive operation and ease of connection
• Moderator controls and screen preview
• Includes wireless collaboration tools (file-sharing, AirNote annotating, etc.)
• Support centralized management
• One-time hardware purchase, life-time software usage and updates

Technical Specifications

WiFi
802.11 b/g/n
2.4GHz
Antenna
External 1T1R
Display Resolution
Up to WUXGA (1920 x 1200)
Output
HDMI out x 1
Audio out x 1
Input
USB Type A x 1
MicroSD card slot x 1
DC Jack x 1
Kensington Lock
Storage
Internal - 8GB (eMMC flash)
External -MicroSD card slot (up to 32GB)
Ambient Temperature
Operating: 32 deg ~ 104 deg F; 0 deg ~ 40 deg C ;
Storage: -4 deg ~ 140 deg F; -20 deg C ~ 60 deg C
Power
Input to AC Adaptor: AC 100-240V, 50/60Hz; Output from AC Adaptor: 5V/2A; Consumption: 10W
Dimension (L x W x H)
3.94" x 3.94" x 0.79"
100mm x 100mm x 20mm
Weight
0.4 lbs / 184 g
What is in the box
HDMI cable x 1,
Wall Mount Kit x 1,
Power Adapter x 1
Antenna x 1
Power cable (USB to DC Jack) x 1
USB to Ethernet adapter x 1
Quick Start Guide x 1
Software
Video Quality
FHD (1080P, up to 30 fps)
OS support
Windows 7 / 8 / 10 (32 bits and 64 bits), Mac 10.7+,
iOS 7.0 and above, Android 4.0+, Chromebook 37+
Cross-platform Mirroring
Yes
AirPlay
Yes
Google Cast
Yes
4-to-1 Screen (Quad screen)
Yes
Simultaneous Connections
up to 8
Software Edition
Education
Moderator Preview
Yes
Screen Annotation tool
Yes
File / URL sharing
Yes
AirNote
Yes
Whiteboarding
Yes
Classroom management (attendance, lock student tablets, etc.)
Yes
HD Video and YouTube streaming
Yes
Remote Manager
FREE
Software Upgrade
FREE
Firmware Upgrade
FREE
