Whirlwind MIP1B 2-Gang Wall Input Plate with XLRF, 3.5mm TRS, Dual RCA, 1/4-Inch Speaker Inputs, Black

Whirlwind MIP1B 2-Gang Wall Input Plate with XLRF, 3.5mm TRS, Dual RCA, 1/4-Inch Speaker Inputs, Black

MIP1

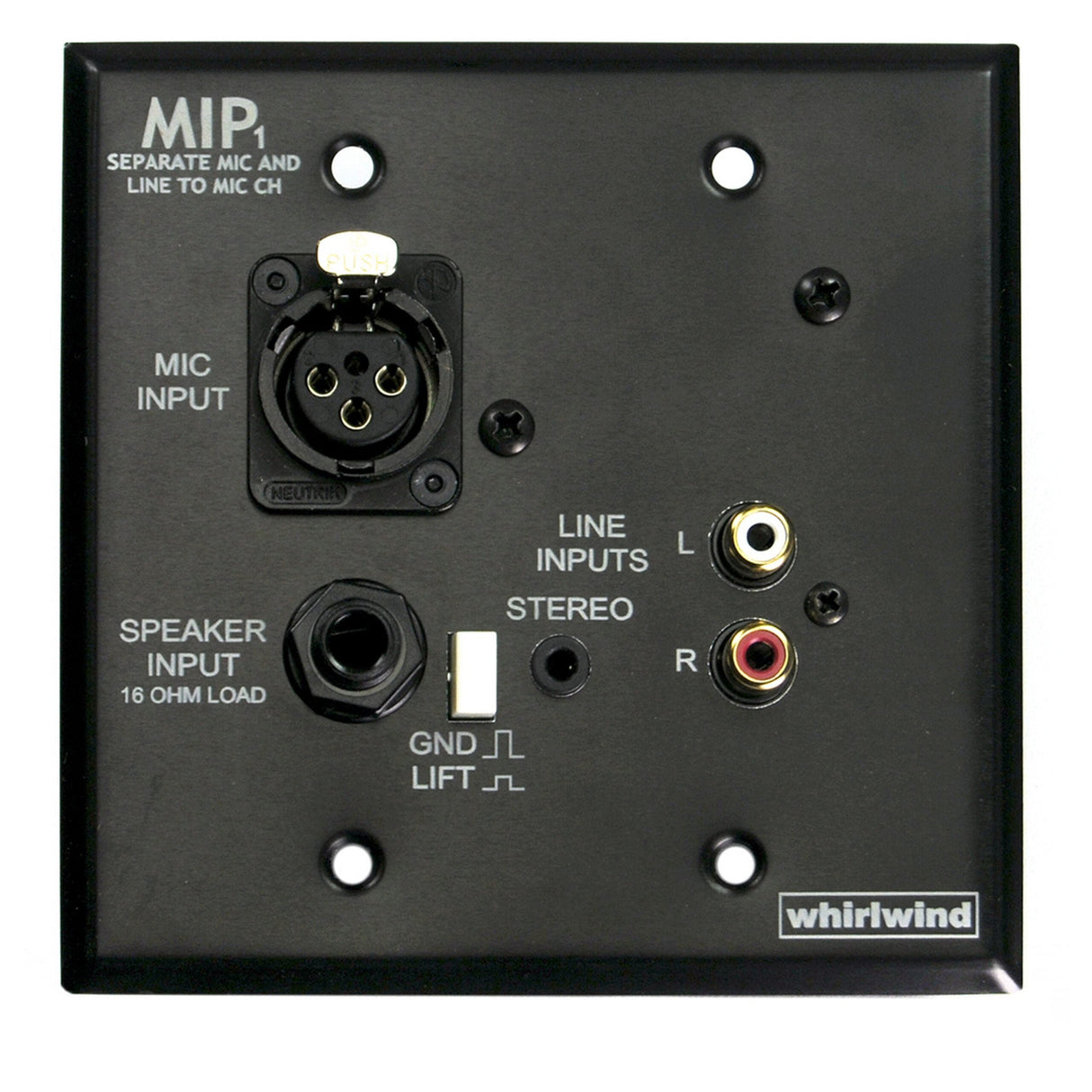

This product accepts stereo RCA, 3.5mm TRS inputs (summed to mono) or a low Wattage power amplifier output i.e. projector’s speaker out. A 16 Ohm 5 Watt load resistor is provided. The signal is converted with a Whirlwind DImax transformer to Low-Z mic level and is output via rear mounted screw terminals. A ground lift is provided to break the ground connection from the line in to the output. Additionally a female XLR is provided with rear screw terminals.

MIP2
This product accepts stereo RCA or 3.5mm TRS or 1/4" unbalanced inputs. (Stereo inputs are summed to mono, only use one type at a time.) The signal is converted with a Whirlwind DImax transformer to Low-Z mic level and is output via screw terminals. A 20 dB pad is provided to attenuate hot inputs and a ground lift is provided to break the ground connection from the input to the output.

MIP3
This product accepts stereo RCA or 3.5mm TRS inputs with a mic input and mixes both at mic level on screw type terminal strips. The RCA and 3.5mm TRS inputs have an attenuation pot for blending line input levels with microphone. Phantom power will pass from the output terminals to the mic input. This is essentially the podMIX with screw terminal outputs on a wallplate.

MIP4
This product (A wall plate version of our popular pcDI) is perfect for interfacing the outputs of CD players, computer sound cards, iPODs / MP3 players, tape decks, etc. with professional, balanced, low impedance equipment. This unit contains two separate DIs - input your signals with one 3.5mm (1/8") mini TRS stereo jack, color coded RCA phono jacks or 1/4" TS input jacks. The RCA and 3.5 mm jacks are wired in parallel if a through connection is required. Outputs are on the rear via 3.5 mm screw type removable plugs (Phoenix 1984329 or equivalent). The Mip4 has a Ground Lift switch to help eliminate hum and buzz, a Stereo/Mono switch for stereo operation or safely combine both inputs into a mono signal sent to both outputs, and a 20dB pad switch for connection to "hot" input signals.

MIP5
The MIP5 is a stereo line balancing plate. Stereo inputs can be connected to the 3.5mm TRS jack (tip is left, ring is right) or the left and right RCA jacks. Two balancing transformers are provided, one for the left channel and one for right. Left and right output connections are made via individual 3 pin pluggable screw terminals. A Stereo/Mono switch is provided which combines left and right together and feeds the summed mono signal to both outputs. A Ground Lift switch breaks the ground connection between the inputs and the output screw terminals. Insertion loss is approximately 1.2 dB for stereo inputs, 1.7 dB for summed inputs and 7.7 dB for a single mono source, measured into a 2 kOhm load. Part #MIP5S Clear; #MIP5B Black

MIP6
The MIP6 is a stereo to mono line converter and balancing device. Stereo inputs can be connected to the 3.5mm TRS jack or the left and right RCA jacks. The inputs are permanently summed to mono and balanced with a single 1:1 transformer. A single 3 pin screw terminal plug is provided for output connection. A Ground Lift switch breaks the ground connection between the inputs and the output screw terminal. Insertion loss is approximately 1.7 dB for summed inputs and 7.7 dB for a single mono source, measured into a 2 kOhm load. Part #MIP6S Clear; #MIP6B Black

MIP7
The MIP7 permits the connection of a microphone or line source to a single mic input of a remote audio processor. The mic input XLR is connected directly to the output screw terminal plug. Set the audio processor channel gain for the desired system level of the MIP7 mic output. A stereo line source can be connected to the 3.5mm TRS jack. Left and right are automatically summed to mono and applied to the line input volume control. This pot allows adjustment of the line input to avoid overdriving the mic preamp in the remote processor. Condenser mics can receive phantom power from the processor. Use only one input of the MIP7 at a time. Do not use the mic and line inputs simultaneously.

MIPAI
The Whirlwind MIPAI media input plates are active, dual input mixer plates designed to combine line and microphone input sources into a single line level balanced output that can be sent over long distances to remote audio processing equipment. Applications include gymnasiums, banquet halls, conference centers and others where local volume control is desired for the source material. Separate level controls are provided for each input and deliver enough gain to drive modern power amplifiers to full output.

Up to three MIPAI plates can be daisy-chained together and powered from a single supply located in the equipment rack. Features include LED level indicators, a bass cut switch on the mic input for reducing rumble and a 3.5mm aux input jack that automatically sums stereo inputs to mono. Screw terminal connections are provided and wiring can be done with two pieces of Belden 8451 type wire or a single Cat5 type wire. Electrical backbox depth of 2.5" minimum recommended for gangable box type, 2.125" for utility box type.

Part Numbers
MIPAIS/PS 1 gang silver wall plate with power supply
MIPAIB/PS 1 gang black wall plate with power supply
MIPAID/PS 2 gang white decora inserts with power supply
MIPAIS 1 gang silver wall plate, power supply not included
MIPAIB 1 gang black wall plate, power supply not included
MIPAID 2 gang white decora inserts, power supply not included
MIPAO/PS termination box; direct audio output with power supply
MIPAT/PS termination box; isolated audio out with power supply
MIPAO and MIPAT output boxes are available to connect the output of the MIPAI plates to the signal processing gear and the 24 VDC wall power supply.
