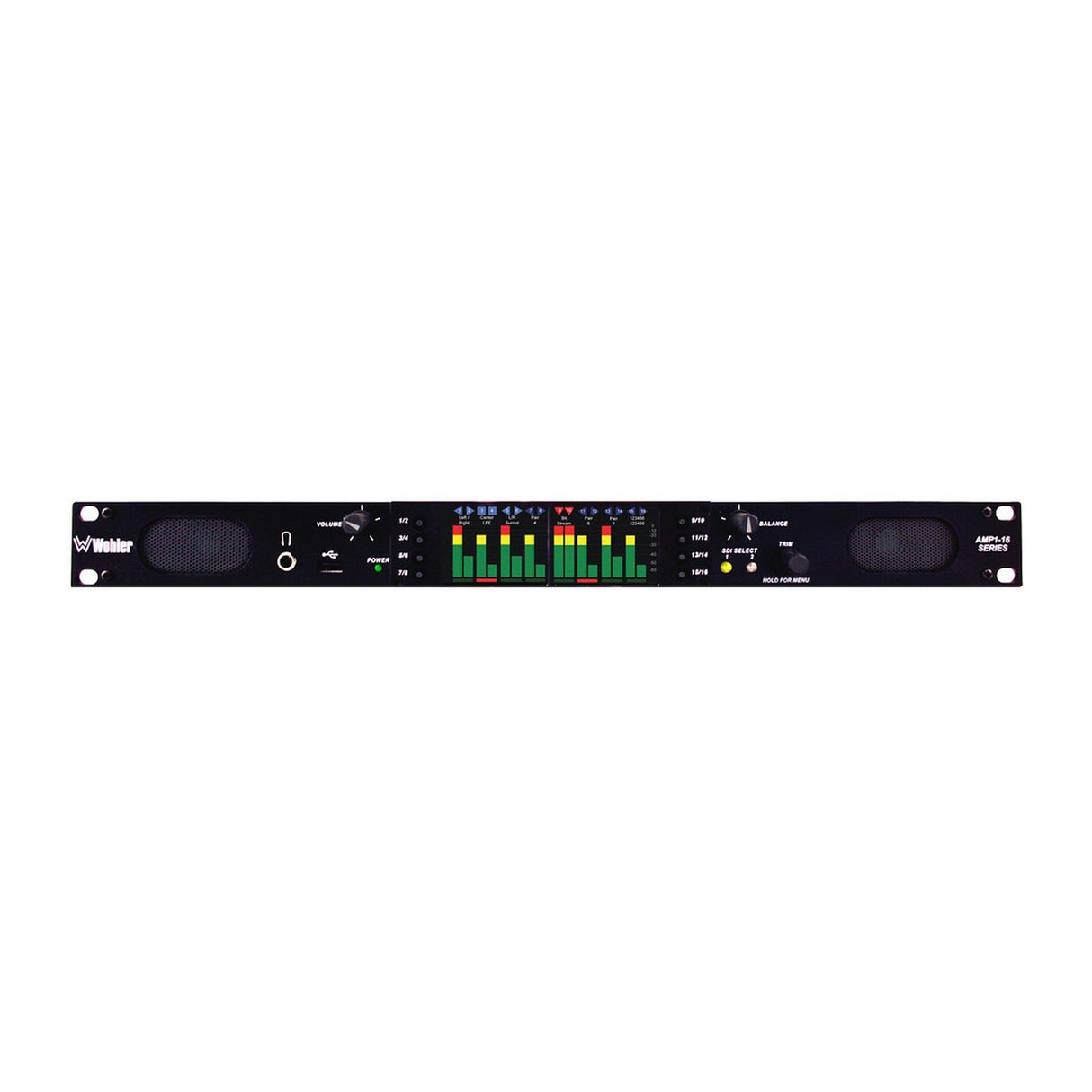

Wohler AMP1-16-M | Dual SDI 16 Channel Rackmount Audio Monitor

Wohler AMP1-16-M Dual SDI 16 Channel Rackmount Audio Monitor

Wohler's newest audio monitor offers fast, intuitive operation for monitoring SDI audio in the most demanding production applications. Whether in the studio or on the road, the AMP1-3G provides instantaneous selection and summing of any grouping of SDI audio pairs. It features adjustable volume and balance controls, clear display of levels, and phase indications on bright 2.4î LED-backlit LCD displays, with configurations that can be created, saved and recalled via Ethernet connection using an intuitive PC interface.

Key Features

• Simultaneous level metering of 16 de-embedded audio channels from SDI
• High resolution metering with 160-segment displays
• Quick, intuitive push-button selection of any pairs to sum to monitor
• Monitor through built-in speakers, headphones or analog outputs
• Stereo or mono monitoring
• Stereo phase indicators
• Adjustable Volume and Balance
• Adjustable Channel Trim
• Easy update and management software from PCs

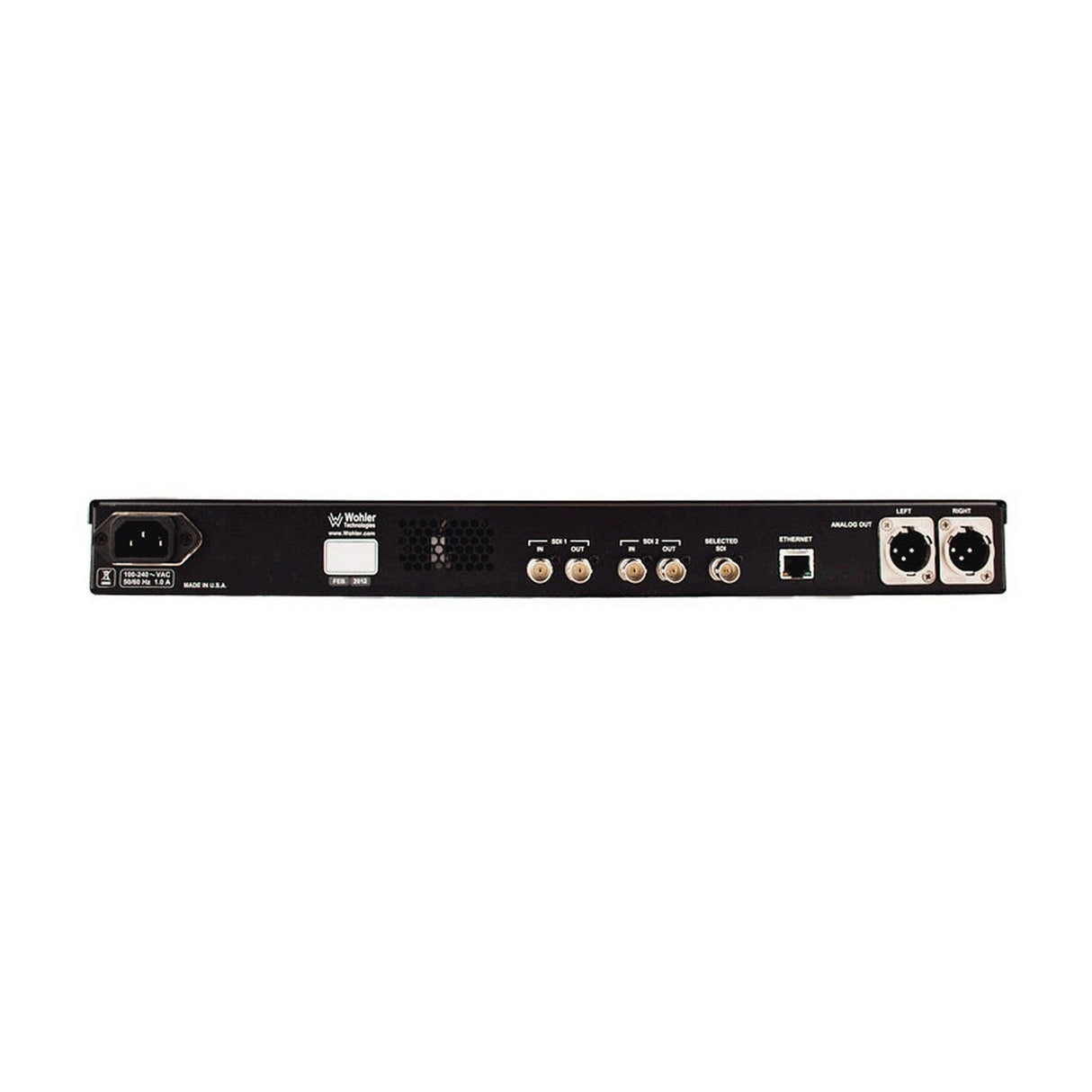

• Loop outputs of each SDI input
• Re-clocked output of the selected SDI input
• Balanced stereo analog outputs on XLR-Ms
• Automatic frame rate detection and selection
• Totally digital system architecture with high fidelity Class D amp
• Shallow chassis depth for easy installation in OB vehicles and consoles
