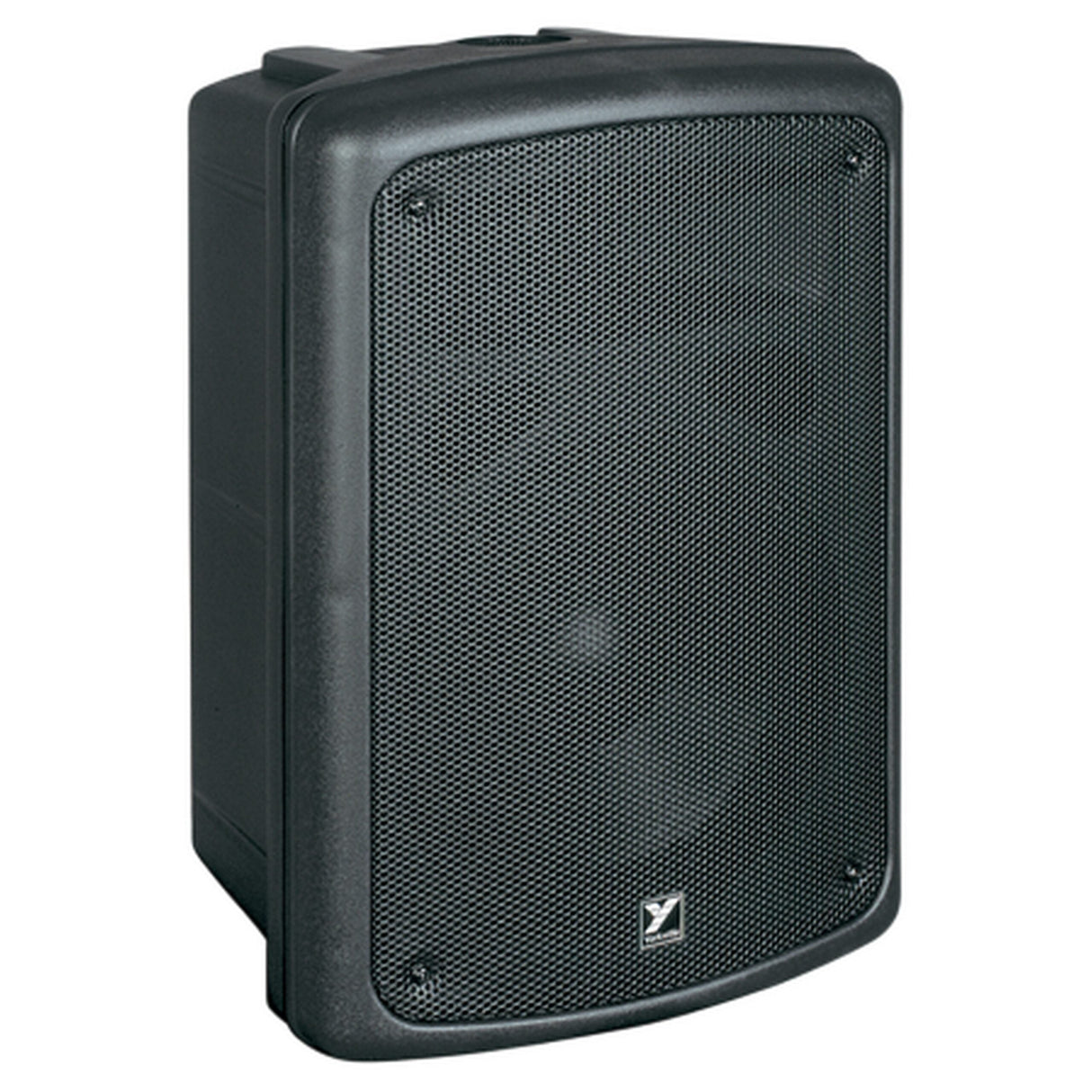

Yorkville C170P Coliseum Mini Series 100W 8-Inch Active Two-Way Loudspeaker

Yorkville C170P Coliseum Mini Series 100W 8-Inch Active Two-Way Loudspeaker

The trapezoidal shape makes the C170P ideal for install or array mounting in tight locations. Shipped with a rugged proprietary U-bracket for wall or ceiling mounting, they are a very versatile and cost-effective solution where superior sonic quality is required for small installations, or as a repeater or fill cabinet in larger venues. An optional polemount adapter (C170ADAPT) is also available for applications were placing the C170P on a speaker stand is required.

Exclusive features to the C170P include a 1/4” input and auxiliary out, controls for Gain, Volume and Tone, with a switchable mic/line input sensitivity, and a power switch.

Key Features

• High Performance Active Two-Way Loudspeaker
• 8-inch Woofer / 1-inch Mylar Dome Tweeter
• 100-Watt Integrated Amplifier
• ¼-inch TRS Balanced Inputs
• Accepts Microphone or Line Level Inputs
• Gain, Volume and Tone Controls
• Heavy Duty ABS Plastic Cabinet and Metal Grille
• Mounting U-Bracket Included
• Optional Stand-Mount Adaptor (C170ADAPT) is Available

Technical Specifications

System Type
2-Way
Active or Passive
Active
Power Rating (Watts)
100
Max SPL (dB)
113
Frequency Response (Hz +/- 3dB)
60 - 20,000
Driver Configuration
8 inch / 1 inch dome tweeter
HF Driver(s)
1 inch Mylar Dome Tweeter
LF Driver(s)
8 inches
Total Power (Watts)
100
Cooling Scheme
Heat Sink
Power Cable
Built-in
Power Switch
Yes
Inputs
2 x 1/4inch TRS (Input/Aux Out)
Inputs - 1/4” Jacks
1 TRS
Mixer Controls
Mic/Line sensitivity switch Gain, Tone, Volume controls
Feet
Yes
Included Hardware
Mounting Bracket
Pole Mount Adapter (1 3/8”-3.5cm)
Optional Adapter (C170ADAPT)
Enclosure Materials
ABS Plastic
Grille
Perforated Metal
Dimensions (DWH xbackW, inches)
11.25 x 9.75 x 16.25 x 9.5
Dimensions (DWH xbackW, cm)
28.5 x 25 x 42 x 24
Weight (lbs/kg)
18.7 / 8.5
