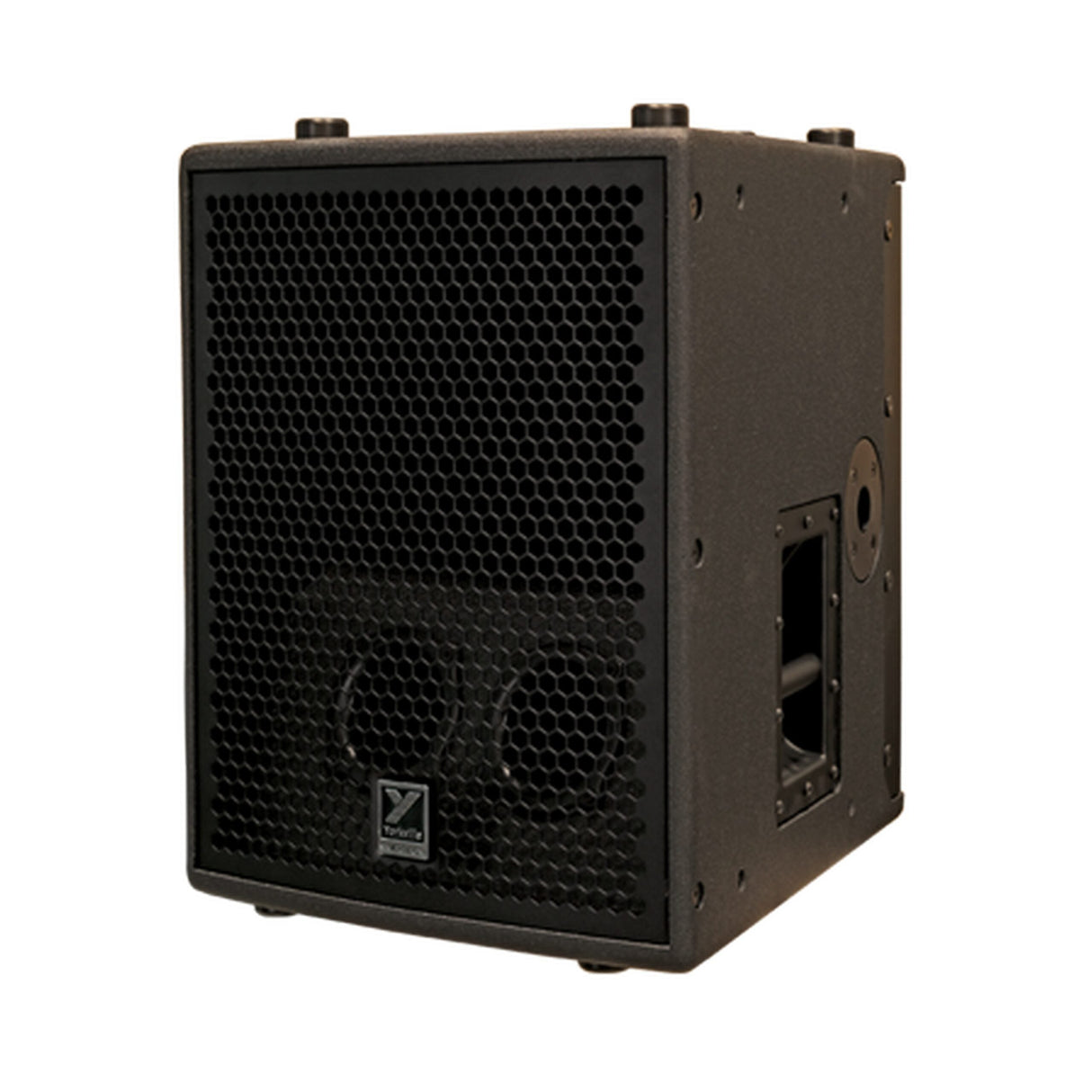

Yorkville SA102 2400W 1 x 10-Inch Full Range Powered Loudspeaker

Yorkville SA102 2400W 1 x 10-Inch Full Range Powered Loudspeaker

The SA102 full-range powered cabinet is a smaller, lighter and more portable addition to the Synergy Array Series. Providing a reduced footprint without sacrificing sonic integrity, the SA102 is ideal for medium to large venues, outdoor festivals and inclined seating theatres. The SA102 paired with the SA115S subwoofer creates the ultimate point source system built to power stages of all sizes, easy to lift and configure, and grow with you.

Signature to the Synergy series, the SA102 is equipped with the patented Paraline lens to create a precisely shaped wave front that matches the horn's physical coverage pattern. The SA102 uses Synergy Horn technology to maximize efficiency and directivity control by coupling the Paraline Lens with a 10-inch-high output woofer.

With a vertical coverage pattern of 7 Degrees Up, 38 Degrees Down, the SA102 can be turned 180 Degrees from top to bottom to accommodate larger audiences. Three top boxes arrayed horizontally together would create a vast 90 Degree coverage pattern.

The SA102 full range speaker paired with the new SA115S subwoofer creates the ultimate point source system built to start at small stages, easy to lift and configure, and grow with you.

Key Features

• Full-range powered speaker: 1200 watts (program), 2400 watts (peak)
• 1x10” LF Woofer, 1xHF Compression Driver
• Incorporates Tom Danley's patented Paraline Lens and Synergy Horn technologies
• Exceptionally high output and pristine clarity
• Extremely well controlled coverage pattern
• Measured MAX SPL (C-Weighted, Max Hold): 127 dB Cont, 133 dB Peak
• Frequency Response (Hz +/- 3db): 60Hz-18k
• Dispersion (Degrees H x Degrees V): 30x45 Asymmetrical (7 Up, 38 Down)
• Audio Inputs: 1 XLR, 2 x XLR Loop
• Removable Locking Powercon True Input and Loop Thru Output
• Dimensions (DWH x back W, inches): 21.250 x 17.375 x 22.750 x 6.750
• Made in Canada

Technical Specifications

System Type
Active Full-Range Powered Speaker
Active or Passive
Active
Power Rating (Watts)
1200 Watts Program (2400 Watts Peak)
Biampable
Biamp
Measured Max SPL (C-Weighted, Max Hold)
127 dB Cont. 133 dB Peak
Frequency Response (Hz +/- 3dB)
60Hz-18k
Dispersion (Degrees H x Degrees )
30x45 Asymmetrical (7 Up, 38 Down)
Crossover Frequency (Hz)
750Hz
Cabinet Configuration
Patented Synergy Horn and Paraline Lens Technology
Driver Configuration
1x10” LF Woofer, 1xHF Compression Driver
HF Driver(s)
4” Diaphragm/Voice Coil, Neo
HF Power Rating (Watts)
120 watts Program, 240 watts Peak
HF Impedance (Ohms)
8-ohm Load
HF Protection
Peak and Average Limiting
LF Driver(s)
1x10” Neo Woofer with 3” Voice Coil
LF Impedance (Ohms)
2-ohm Load
LF Protection
Excursion, RMS
HF Power Amplifier (Watts)
300 watts Program, 500 watts Peak
HF Amplifier Type
3-Tier Class H
LF Power Amplifier (Watts)
900 watts Program, 1600 watts Peak
LF Amplifier Type
Class D
Cooling Scheme
Convection
Power Cable
Removable Locking Powercon True Input and Loop Thru Output
Power Switch
Yes
Power Consumption
200VA
Inputs
1 XLR, 2 x XLR Loop
Input Sensitivity (Vrms Sine)
Line in 1.4 at center, 0.56 at max
Level Controls
Volume
EQ Controls
HF Boost select, Fullrange/Sub switch
LED Indicators
Power, Limit, Clip
Enclosure Materials
Multiply 15mm Birch Plywood
Standard Rigging Hardware
1/4-20 Eyebolts (4 Top, 4 Bottom)
Stacking Feature
Interlocking UHMW Feet (Top and Bottom)
Covering / Finish
Paint
Dimensions (DWH xbackW, inches)
21.250 x 17.375 x 22.750 x 6.750
Dimensions (DWH xbackW, cm)
54 x 45 x 58 x 17
Weight (lbs/kg)
69/31.3
