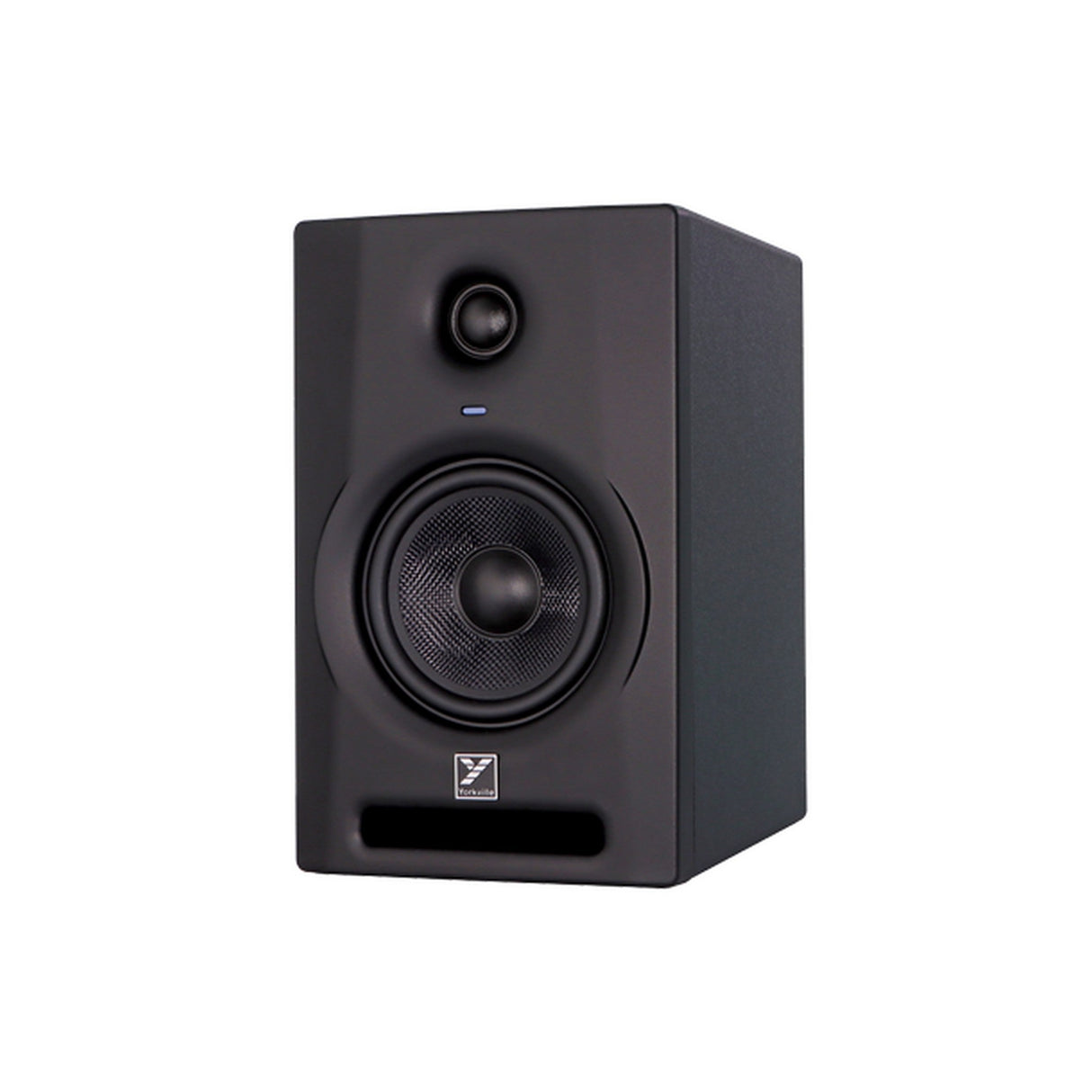

Yorkville YSM5-2 50W 5-Inch Powered Studio Monitors

Yorkville YSM5-2 50W 5-Inch Powered Studio Monitors

The YSM5-2 features 1-inch black-silk diaphragm neodymium dome tweeters. These tweeters blend seamlessly into the specially designed low diffraction wave guide which is integrated into the front baffle. The edges of the wave-guide perfectly couple the tweeter with the woofer, reducing sonic anomalies normally associated with driver/tweeter proximity. The fiber reinforced composite cone woofers have also been designed to perform with sonic excellence, providing a wide dynamic range at all levels. Integrated DSP is utilized to deliver transparent signal processing and bi-amplification has been optimized for each driver. The woofer and tweeter have been perfectly time aligned to eliminate any phase irregularities usually associated with 2-way designs.

Key Features

• 5-inch low frequency driver; 1-inch silk dome tweeter
• Balanced XLR and 1/4- inch TRS inputs
• Unbalanced RCA input
• High and Low Frequency Adjust Controls
• Built in HF and LF limiters
• Volume Control

Technical Specifications

System Type
2-Way
Active or Passive
Active
Power Rating (Watts)
50
Biampable
Self-Powered
Biamp Operation Only
Yes
Max SPL (dB)
105
Frequency Response (Hz +/- 3db)
50Hz-22kHz
Crossover Frequency (Hz)
2.1 kHz
HF Driver(s)
Neo Soft dome Ferro Fluid
HF Power Rating (Watts)
15
HF Protection
Therm, Over voltage, Clip
LF Driver(s)
5-inch composite
LF Power Rating (Watts)
35
LF Protection
Therm, Over voltage, Clip
HF Distortion
015
LF Power Amplifier (Watts)
Class D
LF Distortion
0.01 %
Cooling Scheme
convection
Power Cable
Included
Power Switch
Back, with LED on Baffle
Inputs - 1/4” Jacks
1
Inputs - XLR
1
Input Sensitivity (Vrms Sine)
1
Level Controls
1
LED Indicators
power on front
Enclosure Materials
MDF
Baffle Material
MDF/ABS
Covering / Finish
Textured Vinyl
Dimensions (DWH xbackW, inches)
9.5 x 7.5 x 11.5
Dimensions (DWH xbackW, cm)
24.13 x 19.05 x 29.21
Weight (lbs/kg)
11 / 5.0
