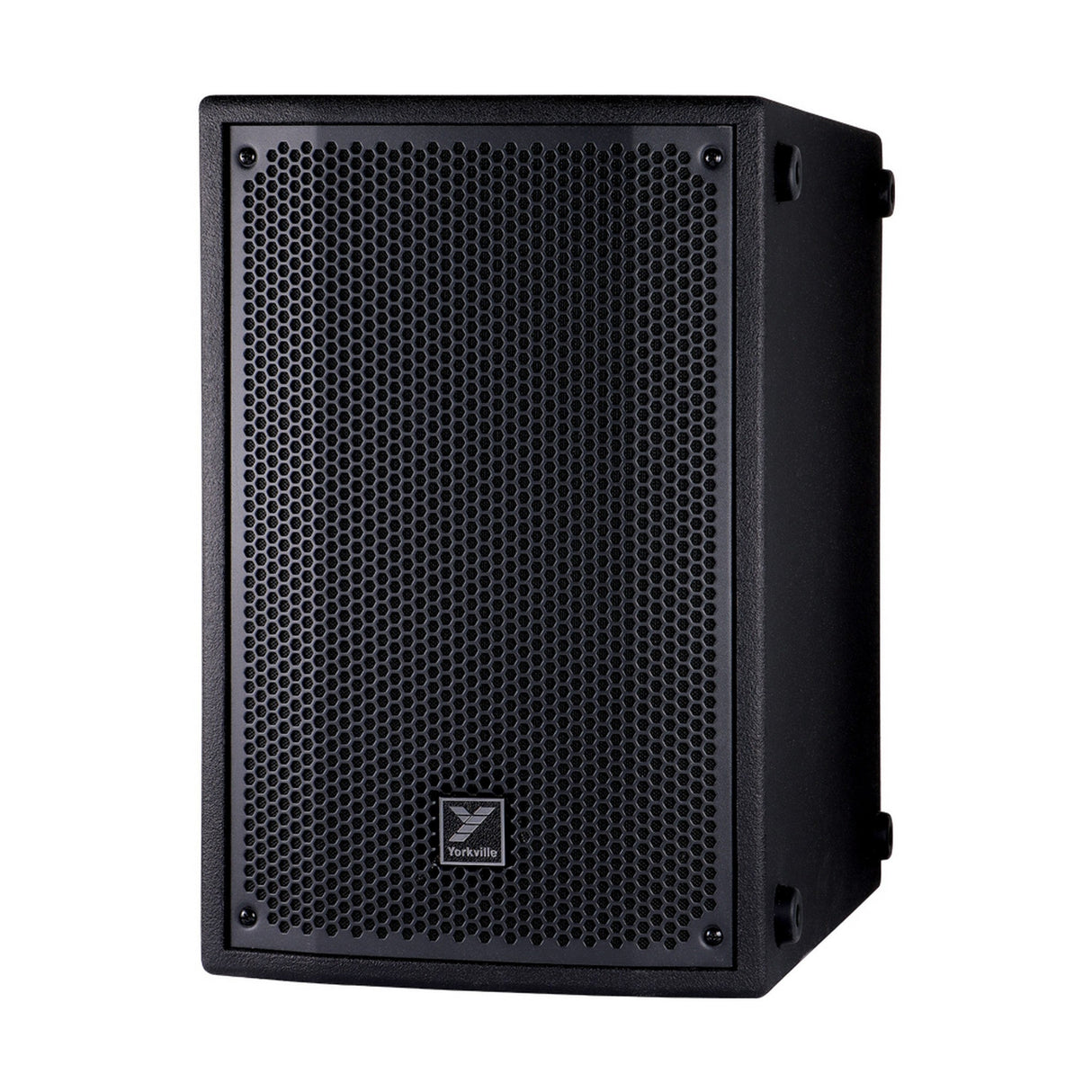

Yorkville YXL10SP 1000W 10-Inch Subwoofer

Yorkville YXL10SP 1000W 10-Inch Subwoofer

The YXL10SP offers a cost-effective solution for enhancing the bass in your live sound setup without overpowering the mix in smaller venues. With its efficient speaker components, this system delivers 1000 watts of power, ensuring a high-quality audio experience.

Key Features

• Peak power output of 1000 Watts and program power output of 500 Watts
• Features a 10-inch woofer with a 2.4-inch voice coil
• Equipped with DSP processing, component protection, and a Master Level control with an Activity indicator

Technical Specifications

System Type
Powered Sub Woofer
Active or Passive
Active
Power Rating (Watts)
500 Watts Program (1000 Watts Peak)
Max SPL (dB)
125dB Peak
Frequency Response (Hz +/- 3dB)
50 - 100 (Hz +/-3dB)
LF Driver(s)
10-inch (2.4-inch voice coil)
LF Power Rating(Watts)
500 Watts Program (1000 Watts Peak)
LF Amplifier Type
Class D
Cooling Scheme
Speed controlled fan
Power Cable
Yes
Power Switch
Yes
Inputs
2 x Main IN XLR Female/ 1/4" Combi, 2 x LINK XLR Male
Level Controls
Master
EQ Controls
Push, Smooth, Deep
Limiter
Multiband excursion, RMS, Rail
Feet
Rubber
Bar Handles
1 x Top
Enclosure Materials
12mm Plywood, Metal grille
Grille
Powder Coated Steel with Grille Cloth
Other Details
1 Stand Adapter (Side)
Enclosure Finish
Textured Latex Paint
Dimensions (DWH xbackW, inches)
18.25 x 12 x 18.75
Dimensions (DWH xbackW, cm)
47 x 31 x 48
Weight (lbs/kg)
34.5/15.6
