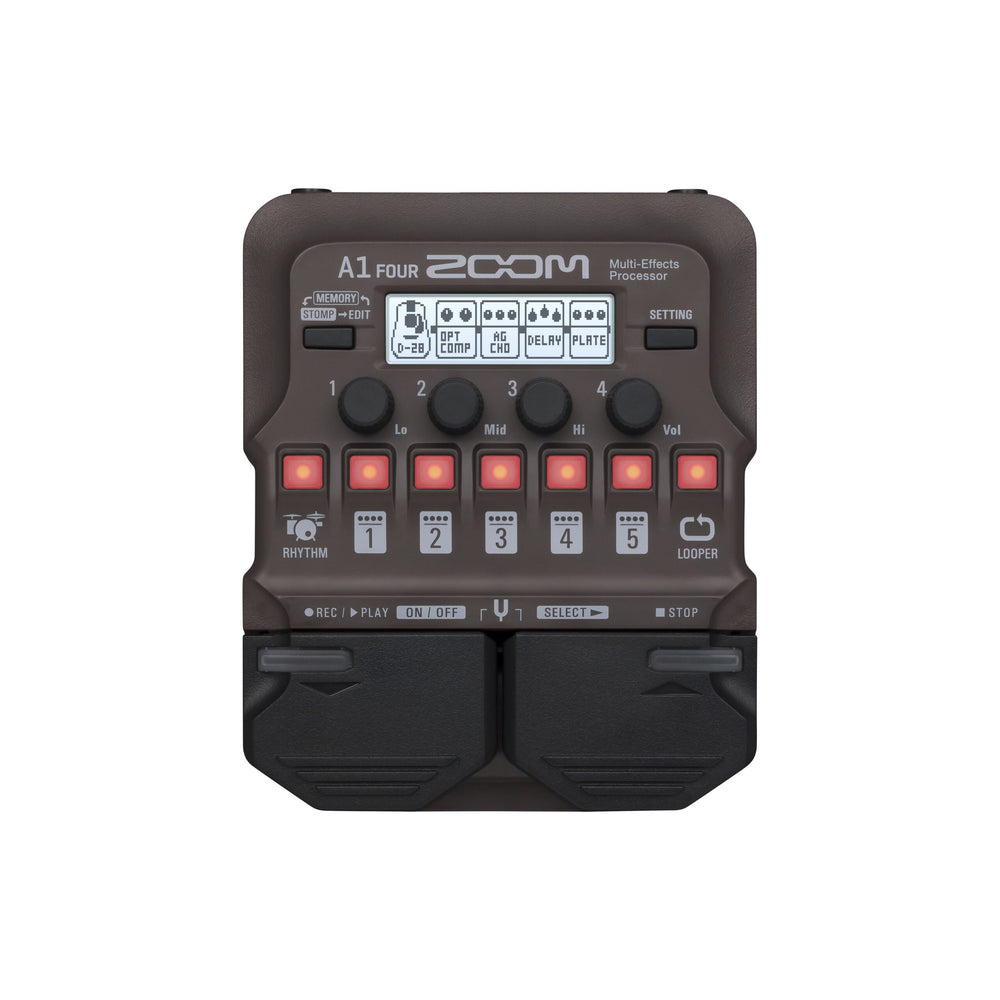

Zoom A1 FOUR Acoustic Multi-Effects Processor

Zoom A1 FOUR Acoustic Multi-Effects Processor

With professional effects, built-in looper and drum machine, the A1/A1X FOUR is the first Multi-Effects Processor designed for a variety of acoustic string and wind instruments.

Exceed Expectations with Extraordinary Effects

The A1/A1X FOUR is preloaded with over 80 effects, including more than 35 new groundbreaking effects specifically designed and engineered for acoustic instruments.

X is for Additional Xpression

The A1X FOUR comes with 8 additional pedal-controlled effects to adjust volume, pitch, reverb, delay, and wah.

Unlock All the Potential of Your Acoustic Guitar

Add a multitude of warm and rich tones to your guitar. From live “unplugged” performance sounds to the finger-playing style of country and blues, there’s so much to choose from. Gorgeous effects and acoustic guitar modeling will take your instrument to places it’s never been before.

Acoustic Guitar Modeling

Add depth and dimension with acoustic emulators and modeling. Refresh your instrument’s natural sound, allowing your live performances to sound just like your studio recordings. Select and hone in on the tone of your favorite guitar make and style.
The A1/A1X FOUR make it easier than ever to process the sound of your own Acoustic Guitar.
With a selection of 15 factory presets (plus13 more available as free download on Guitar Lab), you can select your favorite AG MODEL, D-28 for example, and recover instantly the sound character of that renowned and original body shape.

IR (Impulse Response) technology is used to capture the sonic fingerprint all guitar shapes and bodies available on the A1/A1X FOUR and via Guitar Lab. Each AG MODEL can be adjusted with 4 parameters (Gain, Bass, Mid, Treble) to control the volume and refine the audio output of your modeled sound.
In Patches you can also set the AG Pickup Selector (AG PU SEL) to match your guitar’s pickup type (Piezo or Magnetic) and add a specific EQ modeled on a variety of dedicated processors.

Give Your Sax an Entirely New Soundscape

Perform that gritty, rock-and-roll sax growl. Or use the lush custom-chorus effect to emulate the sound of jazz fusion. The A1/A1X Four gives sax players a soundscape of possibilities.

The all-new “SaxChorus” effect delivers a more natural double-track and thick tone response by softening the modulated sensation typical of a chorus designed for the electric guitar.

With ready-made settings for EQ and Compressors your sax will preserve its acoustically warm sound, even when amplified through mics.

Take Your Trumpet Back to the Future

From the bright sound of electric jazz to our signature Auto Wah sound effect, the A1/A1X gives you inspiration for any style you play.

With the “Tp MD70” preset patch the Pedal Wah sound is tuned, resonates and adapts to the low frequency range and curve of the Trumpet.

Turn Your Violin Into an Orchestra and More

From the rich, full sound of a string symphony to the raw, distorted explosion of heavy metal, the A1/A1X FOUR have effects for every genre you and your violin are called to play.

Give More Body to Your Harmonica’s Soul

Play punchy, mid-range sounds of a blues harp, or experiment with your own new sounds. Breathing new life into your harmonica has never been so much fun.

Play through the preset patch “Hm StevieW” and get that famous harmonica sound as the chorus’s wet signal effect is modified to fit the frequency response of the chromatic harmonica.

The A1/A1X even provides you with a truly effective simulation of the Bullet Mic, also known by harmonica players as the Green Bullet. Select the preset patch “Hm Juke” and now hear the legendary amplified, warm tone of the Green Bullet come to life, even when using any standard vocal microphone.

Take Your Double Bass to New Heights
With focused highs and rich lows, the A1/A1X Four gives you control and flexibility from classical to rockabilly and all styles in between. Add octaves, select your piezo effect or create your own unique signature sound.

Key Features

• A1 FOUR offers over 80 built-in effects / A1X FOUR offers over 90 built-in effects
• Dedicated effects for acoustic guitar, saxophone, trumpet, violin, and harmonica
• Up to 5 effects can be used simultaneously, chained together in any order
• 50 memory locations for storing user-created patches
• Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
• ZOOM Guitar Lab software for creating, editing and managing effects and patches
• 68 built-in rhythm patterns tailored for unplugged styles of music can be used in combination with the Looper
• Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
• Output jack for connection to amp or headphones
• A1 FOUR and A1X FOUR runs on 4 AA batteries, with alkaline battery life of 18 hours; MAA-1 Requires 2 AA batteries
• USB port for firmware updates, power and connection to ZOOM Guitar Lab
  *Manufacturer names and product names mentioned in this presentation are trademarks or registered trademarks of their respective owners and do not indicate any affiliation with ZOOM CORPORATION. All product and artist names are intended only to illustrate sonic characteristics that were used as reference in the development of this product.

Technical Specifications

Maximum number of simultaneous effects
5
User patches
50
Sampling frequency
44.1 kHz
A/D conversion
24-bit, 128× oversampling
D/A conversion
24-bit, 128× oversampling
Signal processing
32-bit
Display
128x32 dot matrix LCD
INPUT
Standard mono phone jack
Rated input level: -20 dBu
Input impedance (line): 470 k OHM
AUX IN
Stereo mini jack
Rated input level: -10 dBu
Input impedance (line): 1k OHM
OUTPUT
Standard stereo phone jack (combined line/headphone)
Maximum output level: Line +2 dBu (10 k OHM or more output impedance)
Headphones 17 mW + 17 mW (32 OHM load)
Input S/N
120dB
Noise floor (residual noise)
-97 dBu
Power
AC adapter: 9V DC 500mA center negative (ZOOM AD-16)
4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)
USB
USB MIDI, USB Micro-B
Power can also be supplied through the USB port.
When using a cable designed only for power, other USB functions cannot be used.
External dimensions
A1 FOUR
Height: 156 mm (D) × 130 mm (W) × 42 mm (H)
Weight: 340 g (excluding batteries)

A1X FOUR
Height: 156 mm (D) × 216 mm (W) × 52 mm (H)
Weight: 610 g (excluding batteries)

MAA-1
Input
INPUT XLR balanced input (2: hot)
Input gain: +3 - +30 dB
Input impedance: 10 k OHM
Maximum input level: +4 dBu
+48V phantom power
Output
Standard mono phone jack
Nominal output level: -20 dBu
Maximum output level: +7 dBu
Output impedance: 1 k OHM
Power
2 AA batteries
Continuous operation time (when phantom current is 3 mA)
About 15 hours (using alkaline batteries)
About 15 hours (using nickel metal hydride batteries)
External dimensions
Height: 177 mm (D) × 23 mm (W) × 25 mm (H)
Weight 70 g (excluding batteries)
0 dBu = 0.775 V
What’s in the Box
A1 FOUR or A1X FOUR Multi-Effects Processor
MAA-1 Mic Amp
AA Batteries (x6)
Quick Guide
Patch List
