Zoom GCE-3 Guitar Lab Circuit Emulator
Description
Description

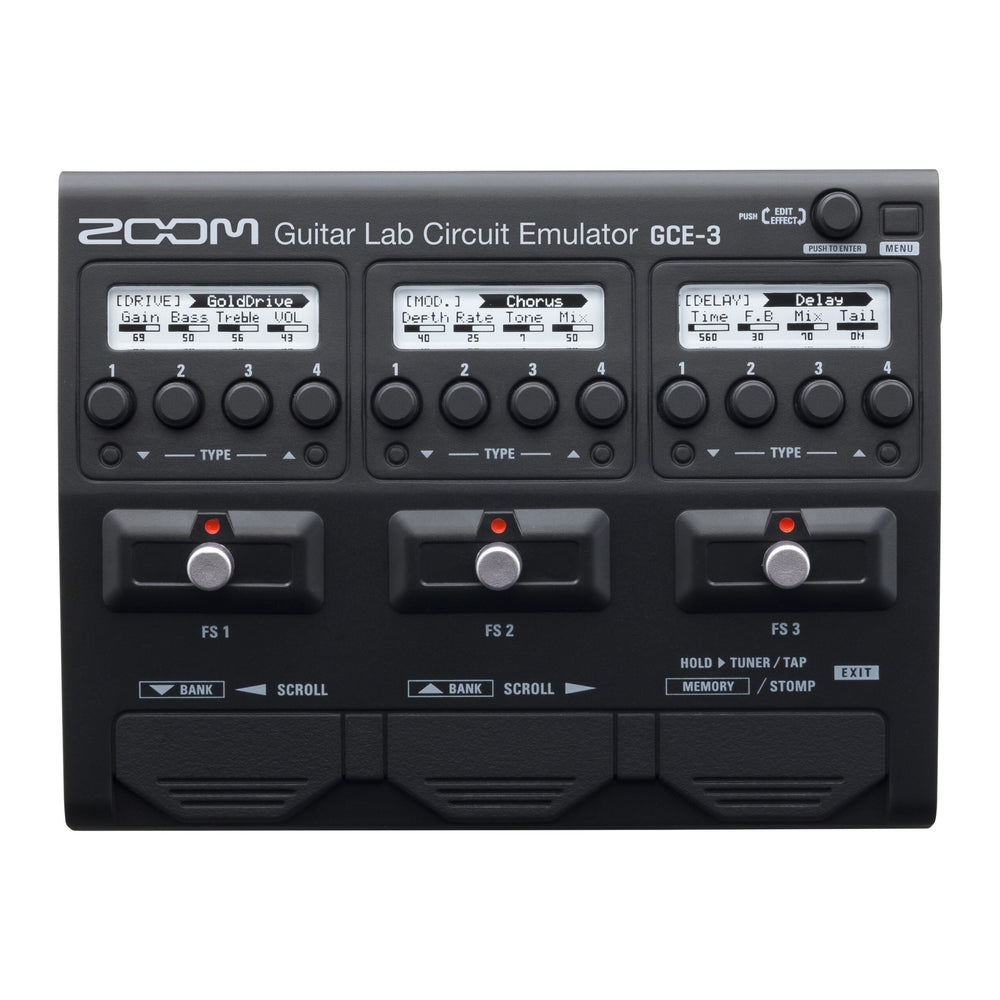

Zoom GCE-3 Guitar Lab Circuit Emulator
The ZOOM GCE-3 is a compact USB audio interface that puts ZOOM Guitar Lab’s endless collection of guitar effects, amps and cabinets at your fingertips whenever and wherever inspiration strikes.
Key Features
- Instantly access dozens of high-quality effects, including distortion, overdrive, EQ, compression, delay, reverb, flanger, phaser and chorus
- Free download of ZOOM Guitar Lab Mac/Windows software for creating, editing and managing patches
- USB-C port for connection to computer
- Built-In DSP processing for circuit emulation of G5n, G3n, G3Xn, B3n, G1 FOUR, G1X FOUR, B1 FOUR, B1X FOUR
- Input jack accepts standard guitar cable
- Auxiliary stereo input jack for connection of smartphones and music players
- Stereo headphone output with volume control
Technical Specifications
Sampling frequency:
44.1 kHz
A/D conversion:
24-bit 128× oversampling
D/A conversion :
24-bit 128× oversampling
Signal processing:
32-bit
INPUT :
Standard mono phone jack
Rated input level: 20 dBu
Input impedance (line): 470 kOHM
AUX IN:
Stereo mini jack
Rated input level: 10 dBu
Input impedance (line): 1 kOHM
PHONE OUTPUT :
Stereo mini jack
Maximum output level:
Headphones 15 mW + 15 mW (typ. 32OHM load)
Input S/N :
120 dB (typ)
Noise floor (residual noise):
96 dBu (typ)
USB :
Connector: USB Type-C
USB 2.0
Power :
USB bus power (Type-C)/5V DC power supply (Micro-B)
External dimensions :
80 mm (D) × 106 mm (W) × 29 mm (H)
Weight :
90 g
Note: 0 dBu = 0.775 V
GCE-3 SYSTEM REQUIREMENTS
Windows:
OS: Windows 7 SP1 or later / 8.1 / 10 (32bit/64bit)
CPU: Intel Core i3 or faster*
USB: USB 3.0/USB 2.0**
* Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.
Mac:
OS: Mac OS X 10.11 / 10.12 / 10.13 / 10.14
CPU: Intel Core i3 or faster
USB: USB 3.0/USB 2.0*
* Operation is not guaranteed when used with USB hubs or expansion cards.
What’s in the Box
ZOOM GCE-3 Guitar Lab Circuit Emulator
Steinberg Cubase LE license
Non-slip pad
USB cable (type A to C)
Operation manual
