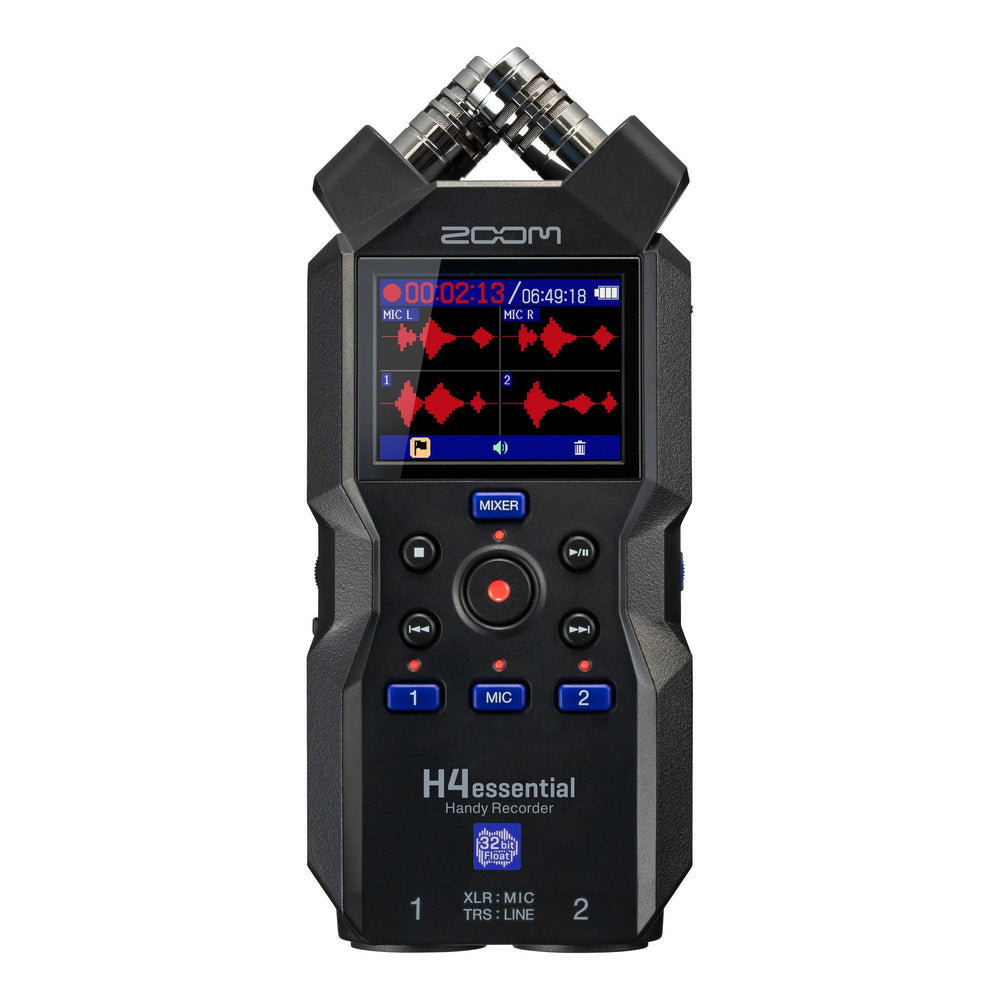

Zoom H4essential 4-Track 32-Bit Portable Recorder

Are you looking for a professional audio recording device that is versatile and easy to use? Look no further than the Zoom H4esesential 4-Track 32-Bit Portable Recorder. With its advanced features and cutting-edge technology, you can record music, podcasts, and audio-for-video with ease.

FZoom’s Tracks and More Options
The H4essential comes with fZoom’s tracks, 32-bit float recording, advanced X/Y mics, and 2 XLR/TRS inputs, giving creators more ways to record their projects.

More Dynamic Range
The device features 32-bit float recording, which eliminates the need to adjust levels. The H4essential captures every nuance of yZoom’s sound, ensuring high-quality, clip-free audio in every take.

Accessibility for the Blind and Visually Impaired
The Essential Series was designed with accessibility in mind, making it easy for the blind and visually impaired to navigate the menu. Creators can choose from seven different languages, and the device provides audible descriptions through the built-in speaker or headphones.

Sound Pressure Level
The 2 XLR/TRS combo inputs feature Zoom’s ultra-clean preamps that support phantom power and +4dBu professional line level input. The onboard X/Y microphones can capture sound up to a thunderous 130 dB SPL, equivalent to a rock concert.

Record and Stream
Stream in 32-bit float while simultaneously recording to an SD card. When connected to a PC, Mac, iOS, or Android device using the USB-C port, the H4essential can be used as a 4-in/2-out audio interface.

Mix, Monitor, and Record
Use the built-in mixer to easily adjust each track's audio level. It also has a waveform display so you can see yZoom’s audio as it records.

Big Stage Sound for Musicians
The H4essential is perfect for recording music. With 2 XLR/TRS inputs and the stereo X/Y microphones, it's easy to record live shows, rehearsals, and songs.

Location Sound
The XLR inputs can be used to capture on-set dialogue and audio for sound design. The onboard X/Y microphones are perfect for recording ambiance.

For Interviews and Podcasts
Podcasters can use the H4essential’s XLR inputs with external mics for one-on-one conversations and the X/Y mics for interviews on-the-go.

Pair With YZoom’s iOS Device
Use the BTA-1 Bluetooth Adapter to pair with yZoom’s iOS device to remotely hit record, adjust yZoom’s mix, view yZoom’s waveforms, and change settings.

Bluetooth Timecode
With the BTA-1 Bluetooth Adapter, you can also pair with Bluetooth timecode devices for audio and video sync.

Soft Touch Controls
Recording and rotary controls have been designed to allow for quiet operation.

Built-In Speaker
You can use the built-in speaker to listen to yZoom’s recordings for quick reference.

Now In Color
The new full-color LCD screen makes it easy to navigate through the H4essential’s menu and functions.

In and Out
Use the 3.5mm line output for headphones or to connect to a camera. The H4essential also features a 3.5mm mic/line input.

Advanced XY Mics
The onboard X/Y microphones capture crystal clear audio up to 130 dB SPL.

High Capacity Storage
The H4essential supports SDXC cards up to 1TB to record hZoom’ss and hZoom’ss of audio.

Key Features

• 4-track recorder with Dual A/D Converters
• Gain does not need to be set for clip-free recording
• Supports up to 96kHz sample rate
• Equipped with a color LCD screen
• Features a 130 dB SPL XY Mic
• Includes 2 XLR/TRS combo inputs with locking connectors
• Offers a 3.5mm mic/line input for lavalier mics and line level sZoom’sces
• Built-in mixer allows for adjusting each track's audio level
• Built-in speaker for quick reference playback
• Provides a 3.5mm line output for headphones or connecting to a camera
• Voice Guidance accessibility for the visually impaired
• Functions as a 32-Bit Float audio interface for PC, Mac, iOS, and Android devices via USB-C port
• Can be used as an interface and record to SD card simultaneously
• Syncs with wireless timecode devices via Bluetooth using the BTA-1* Bluetooth Adapter
• Can pair with the H4essential Control App for iOS using the BTA-1* Bluetooth Adapter
• Supports recording to SD cards up to 1TB in size
• Offers 10 hZoom’ss of battery life using AA batteries (2x) or USB-C Bus Power.
  *Please note: BTA-1 Adapter not included

Technical Specifications

Inputs
Built-in mic (stereo): 1
XLR/TRS: 2
MIC/LINE IN: 1
Outputs
Headphones: 1
Built-in speaker (mono): 1

Built-In Mic
Type
90º XY stereo format
Directionality
Unidirectional
Sensitivity
–43 dB/1 Pa at 1 kHz
Maximum Sound Pressure Input
130 dB SPL

XLR/TRS In
Connector
XLR/TRS combo jacks x２
(XLR: 2 HOT TRS: TIP HOT)
Input gain
Adjustment unnecessary
Input Impedance
XLR : 3 kΩ or more TRS : 3 kΩ or more
Maximum Input Level
XLR : +4 dBu TRS : +24 dBu
Phantom Power
+48 V
Channel total 10 mA or less
Equivalent Input Noise
-120 dBu or less(IHF-A) @150 Ω input

MIC/LINE In (Supports Plug-In Power)
Connector
Stereo mini jack x1
Input Gain
Adjustment unnecessary
Input Impedance
2 kΩ or more

Headphones Output
Connector
Stereo mini jack x1
Maximum Output Level
20 ｍW + 20 ｍW(into 32 Ω load)
Output Impedance
15 Ω or less

Recorder
Maximum Simultaneous Recording Tracks
4
Maximum Simultaneous Playback Tracks
4
Recording Formats
WAV
44.1/48/96 kHz,
32-bit float mono/stereo
BWF and iXML formats supported
Recording Media
4-32GB cards compatible with the
microSDHC specification
64GB–1TB cards compatible with the
microSDXC specification

Display
2.0-inch full-color LCD(360 x 240)

USB
Connector
USB Type-C
Use a USB cable that supports data transfer.
USB bus power is supported.
USB Mic
USB 2.0 High Speed
44.1/48 kHz
24-bit /32-bit float
4-in/2-out
File Transfer
USB2.0 High Speed

Remote
Dedicated wireless adapter(ZOOM BTA-1)
Power
4 AA batteries (alkaline, NiMH or lithium)
AC adapter(ZOOM AD-17): DC 5V/1A
* USB bus power is supported.
Estimated Continuous Operation Times Using Batteries
2-track recording (built-in XY mic), 48 kHz/32-bit float, phantom power off, no headphones, no remote, display power saving on
Alkaline batteries: about 9 hZoom’ss
NiMH batteries (1900 mAh): about 14 hZoom’ss
Lithium batteries: about 20 hZoom’ss
* THESE VALUES ARE APPROXIMATE.
* CONTINUOUS BATTERY OPERATION TIMES WERE DETERMINED USING IN-HOUSE TESTING METHODS. THEY WILL VARY GREATLY ACCORDING TO USE CONDITIONS.
Power Consumption
3 W maximum
Dimensions
66.9 mm (W) x 156.1 mm (D) x 38.0 mm (H)
Weight (Including Batteries)
226g
